Grandstream Networks, Inc. GXP User Manual Page 6 of 38
Firmware 1.1.5.15 Last Updated: 12/2007
2) One PS2 cable
3) One
connection plate
4) One Universal Power Adaptor

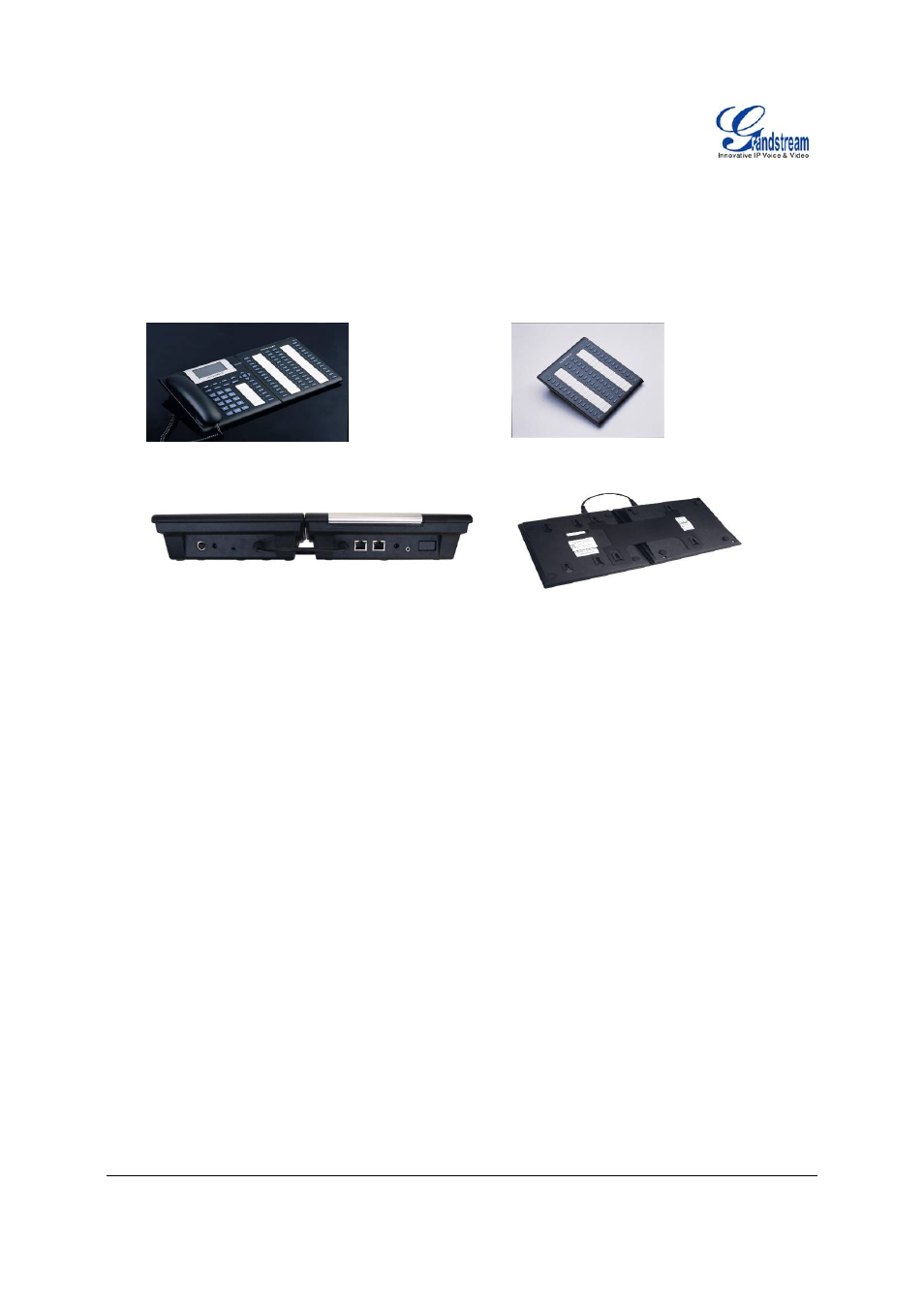

F IGURE 1: C ONNECTING THE GXP–2000 AND THE GXP–E XTENSION
GXP–2000 w/GXP–Extension GXP Extension
Connecting the GXP–2000
w/GXP–Extension Reverse side of connection
w/connection plate
Connect the first GXP –EXT to the GXP–2000 using the PS2 cable found in the GXP Extension package.
The first GXP–Ext draws power directly from the phone. Connect the second GXP Extension unit using
the connection plate and the PS2 cable. The GXP2000 will automatically reboot and power up the GXP
Extensions. Grandstream recommends, though not required, to use a separate power supply with the
second GXP Ext. NOTE: should your system loose power, please unplug your devices and power up
the GXP–2000 first.
Powering up the system:
1. The GXP–2000 will boot up first;
2. The GXP LEDs will be solid red;
3. The status light in the top right corner of the GXP–Ext will blink red;
4. All of the LED indicators on the GXP–Ext will flash three times;
5. The status light at the top right corner of the GXP–Ext will turn to solid green.
