Grandstream Networks, Inc. GXP User Manual Page 12 of 38
Firmware 1.1.5.15 Last Updated: 12/2007
Using the GXP SIP Enterprise Phone
G ETTING F AMILIAR WITH THE LCD
GXP-20xx has a dynamic and customizable screen. The screen displays differently depending on
whether the phone is idle or in use (active screen).
Table 8: LCD Buttons
Key Button Key Button Definitions
LINE SELECTORS Selects the phone line printed on its right-hand side.
SIP PHONE LINES
Displays the available phone lines. Choose a phone line by pressing the
corresponding line selector on the left-hand side.
DATE AND TIME Displays the current date and time. Can be synchronized with Internet time servers.
LOGO
Displays company logo. This logo can be customized. For more information on
customizing the logo, please check the document at:
http://www.grandstream.com/documents/XMLApplicationGuide.pdf
NETWORK STATUS
Shows the status of the phone and network. It will indicate whether the network is
down, starting or is running (show IP-number). Other messages such as “DO NOT
DISTURB” or “## MISSED CALLS” are shown here too.
STATUS BAR Shows the status of the phone, using icons as shown in the next table.
LINE STATUS
INDICATOR Displays the name of the account that is in use. Select another account by pressing
the LINE SELECTOR BUTTONS
SOFT-BUTTONS
(Excluding GXP-2000)
The soft-buttons are context sensitive and will change depending on the status of
the phone. Typical functions assigned to soft-buttons are:
•
NEW CALL Press this button to make a new hand-free call.
•
FORWARD ALL Unconditionally forwards the main phone line to another
phone
•
MISSED CALLS This option shows up there were unanswered calls to this
phone. The MissedCalls option shows a list of the missed
calls
•
CALL RETURN Calls the phone that called/tried to call your phone last.
•
REDIAL Redials the last number
•
END CALL Hangs up phone

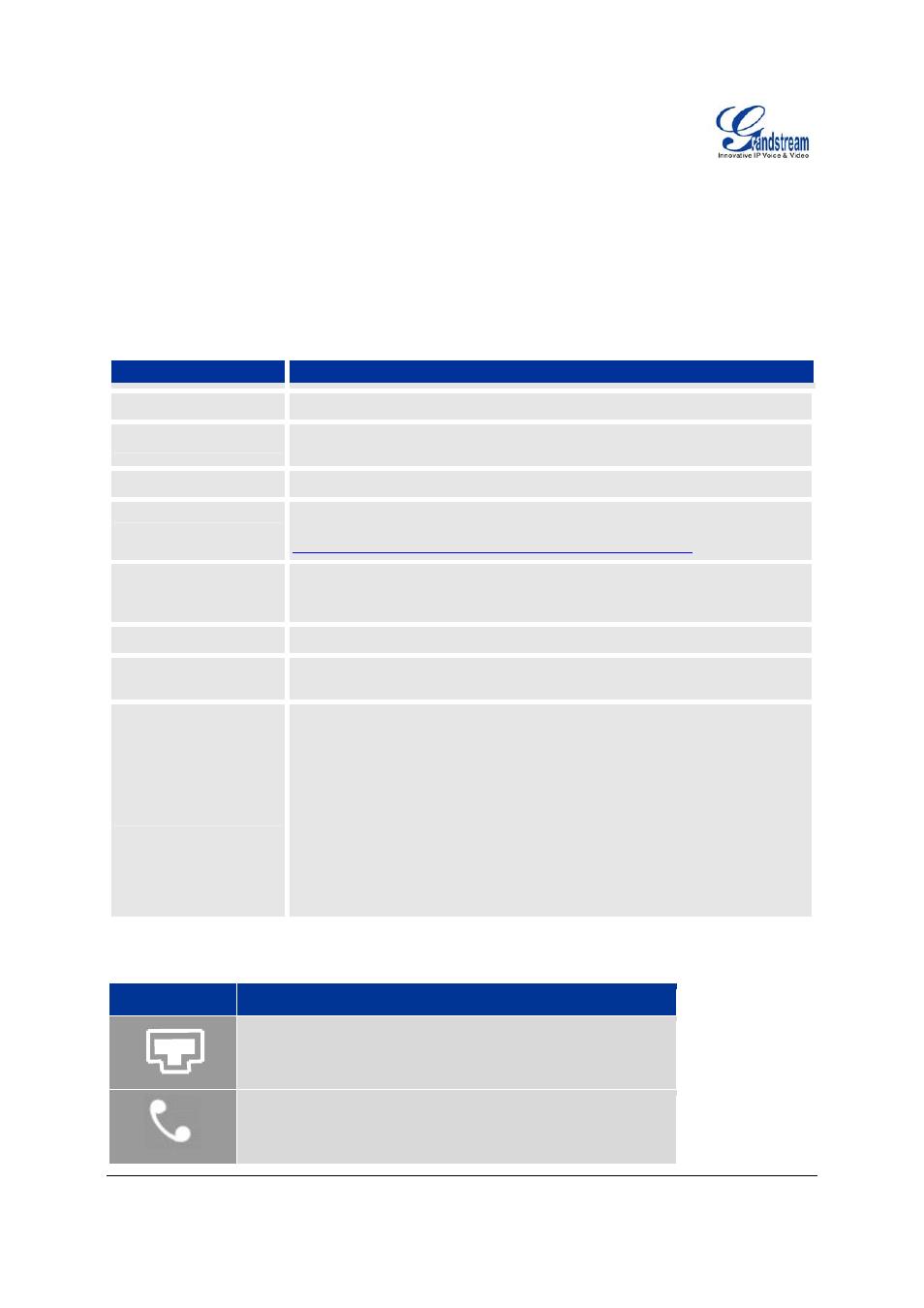

Table 9: LCD Icons
Icon LCD Icon Definitions
Connectivity Status / SIP Proxy/Server Icon:
Solid – connected to SIP Server/IP address received
Blinking – physical connection failed
Blank – SIP Proxy/Server not registered
Phone Status Icon:
OFF when the handset is on-hook
ON when the handset is off-hook
