Installation
Installing the Display

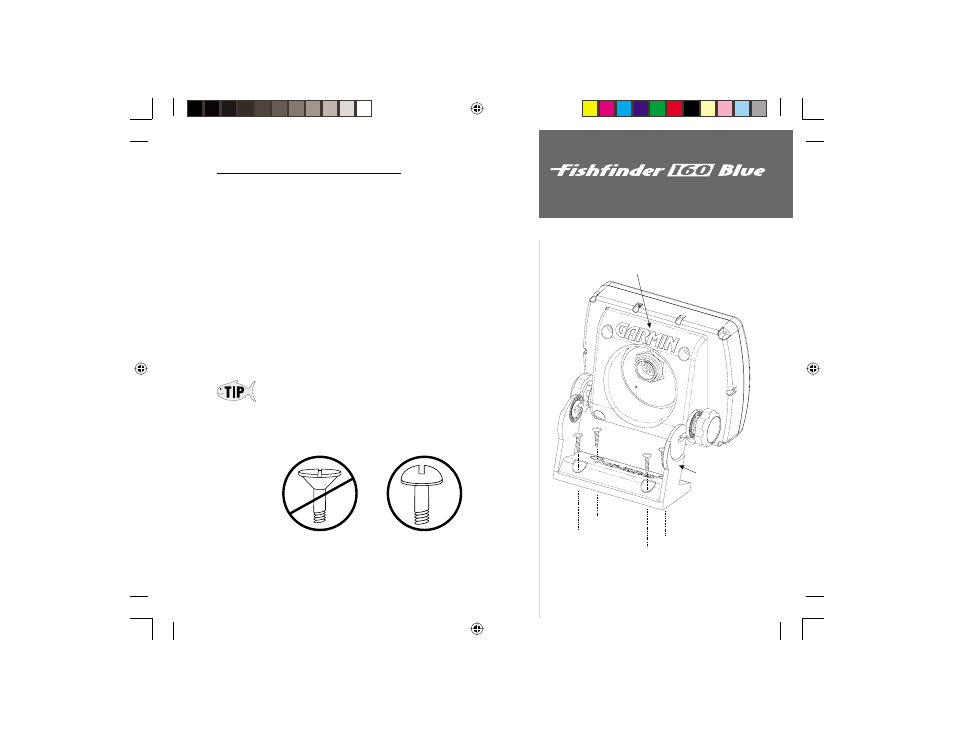

Display Installation (Surface Mount)
The Fishfi nder 160 Blue can be mounted to a fl at surface using the
supplied Surface Mount Bracket.
Surface Mounting the Display:
1. Position the Surface Mount Bracket in the desired location. Leave
approximately 2” behind the unit for cable clearance.
2. Mark the location of the four mounting holes with a pencil.
3. Drill pilot holes for the mounting fasteners (not included in kit).
4. Secure the Surface Mount Bracket using the mounting fasteners.
5. Slip the unit into the Surface Mount Bracket.
6. Tighten the knobs to secure the unit to the bracket.
The Surface Mount Bracket is designed to be secured using a fl at head screw.
If you use a screw with a countersunk head, you risk damaging the Surface
Mount Bracket.
