Model h7668 spray gun w/pressure Cup -10 -

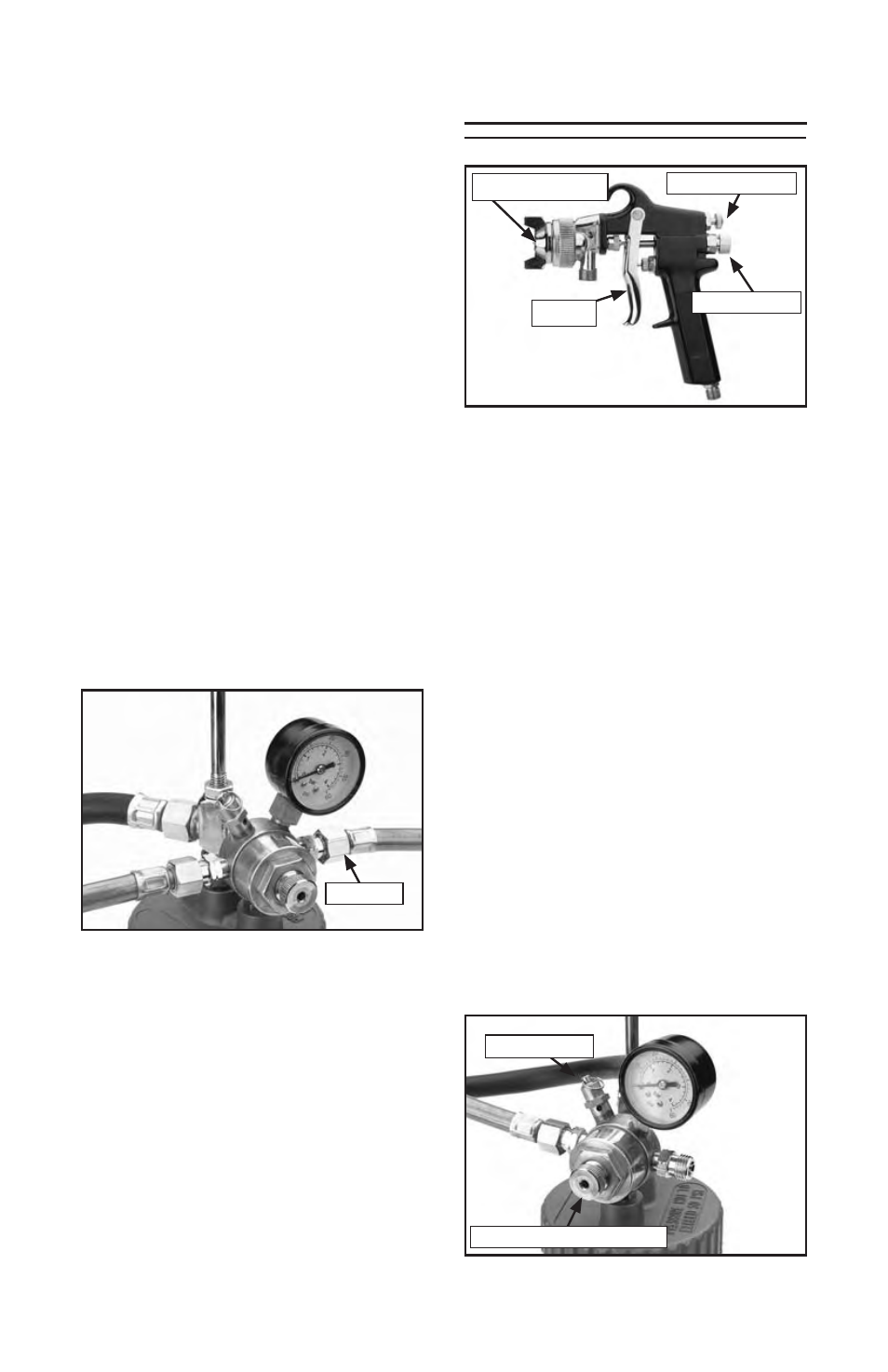

figure 7. Compressed air inlet location.
6. attach the compressed air line to the
air inlet as shown in figure 7. how-
ever, wait until you have mixed your
paint material and are ready to spray
to complete this step (see
spraying
on page 11.
note: Using a 1 ⁄
4
" NPT quick discon-
nect set-up on the inlet air line (not
included and not shown), will make
operation and maintenance tasks
easier.
note: For the best results, use a filter
that will extract water and oil contami-
nants and a hose that will be dedi-
cated for spray use only. Do not use
a hose that has been used with an
in-line oiler or other possible contami-
nant.
If you need additional help with this assem-
bly, call our Technical Support at: (570)
546-9663.
1. fluid control: Controls the volume of
material that travels through the fluid
tip.
2. pattern control: adjusts the spray
pattern from a round pattern to a wide
fan.
3. atomizing cap : Controls the spray
pattern from vertical to horizontal.
4. trigger : two stage trigger. stage
one only releases compressed air for
blowing off the work piece. stage two
sprays material.
5. pressure control Knob: Controls
the fluid pressure inside the spray
gun.
6. safety valve: releases unsafe pres-
sure build-up from pressure cup.
figure 8. Controls.
controls
safety Valve
Fluid Control
pattern Control
pressure Control Knob
atomizing Cap
trigger
figure 9. pressure cup controls.
air inlet
