G5346 parts breakdown and list – Grizzly 1/2" AIR IMPACT WRENCH G5346 User Manual
Page 2

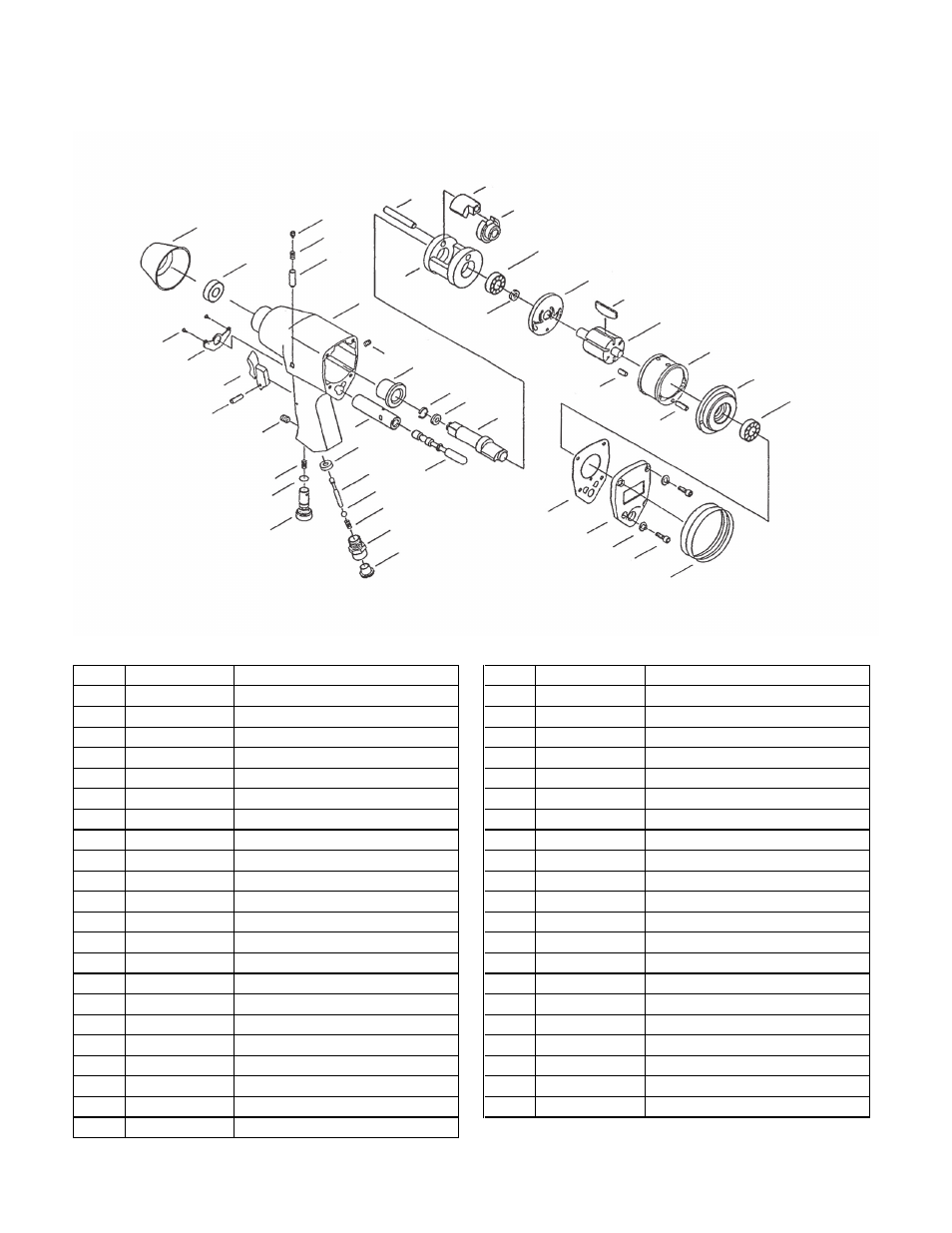

G5346 Parts Breakdown and List
��
��
��
��
��
�
��
��
�
�
��
��
��
��
��
�
�
��
�
�
�
�
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
1
P5346001
HOUSING
24
P5346024
CYLINDER
2
P5346002
VALVE BUSHING
25
P5346025
ROTOR
3
P5346003
REVERSE VALVE
26
P5346026
ROTOR BLADE
4
P5346004
TRIGGER
27
P5346027
REAR END PLATE
5
P5346005
PIN
28
P6001
BALL BEARING 6001
6
P5346006
VALVE STEM
29
P5346029
FRONT END PLATE
7
P5346007
AIR INLET
30
P5346030
PIN
8
P5346008
BALL SEAT
31
P5346031
COMPRESSION SPRING
9
P5346009
COMPRESSION SPRING
32
P5346032
PIN
10
P5346010
STEEL BALL
33
P5346033
GASKET
11
P5346011
COVER
34
P5346034
REAR COVER
12
P5346012
AIR REGULATOR
35
P5346035
SCREW
13
P5346013
O-RING
36
P5346036
SPRING WASHER
14
P5346014
COMPRESSION SPRING
37
P5346037
FRONT RUBBER
15
P5346015
OIL SEAL
38
P5346038
EXHAUST DEFLECTOR
16
P5346016
SCREW
39
P5346039
SCREW
17
P5346017
BUSHING
40
P5346040
SCREW
18
P5346018
ANVIL
41
P5346041
ANVIL COLLAR
19
P5346019
HAMMER CAGE
42
P5346042
O-RING
20
P5346020
HAMMER PIN
43
P5346043
RUBBER
21
P5346021
HAMMER DOG
44
P5346044
SCREW
22
P5346022
DRIVE CAM
45
P5346045
OIL SEAL
23
P5346023
PIN
