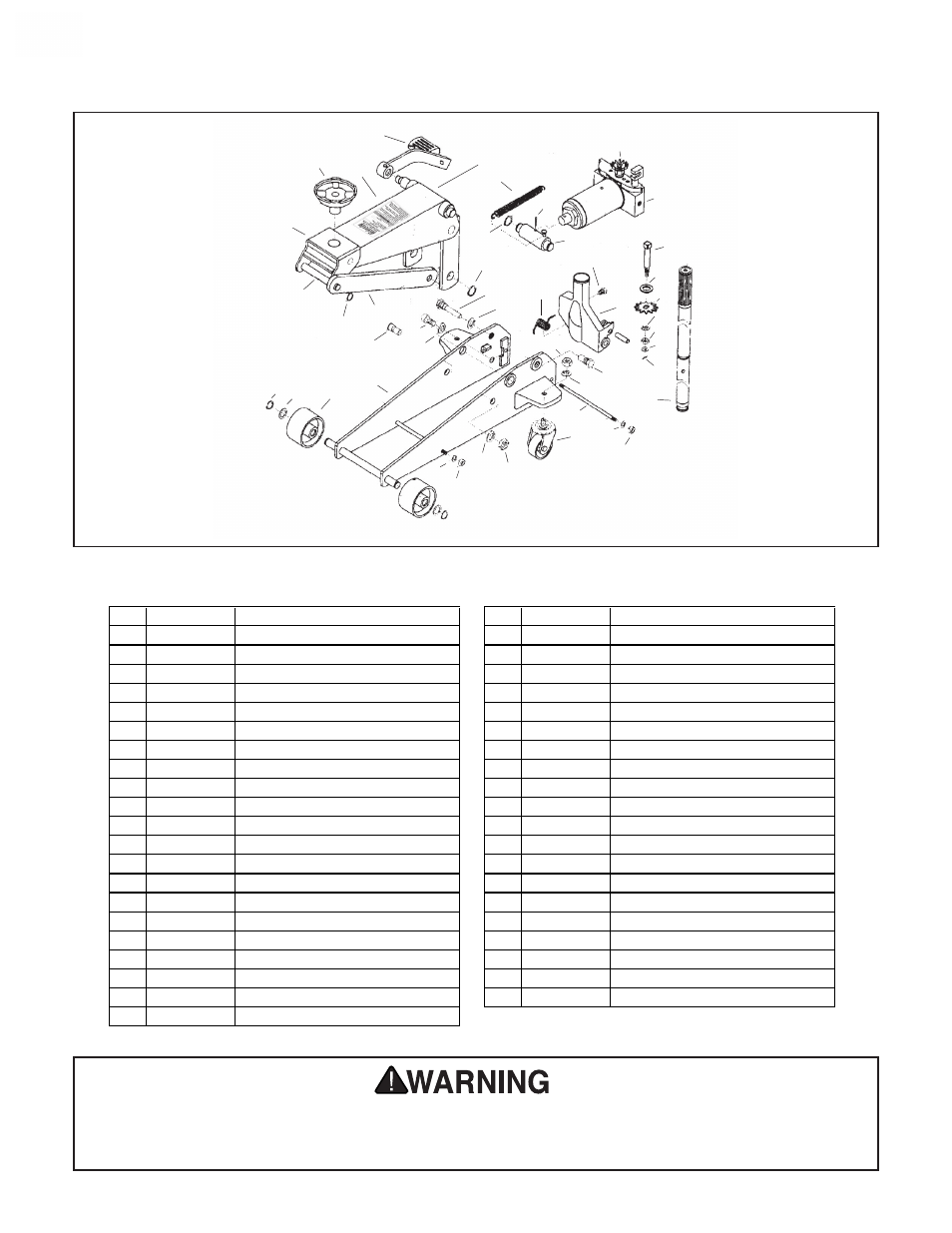

H8091 Main Parts Breakdown
� �
�
�
�
�
�
�
�
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
PR09M
EXT RETAINING RING 20MM
23
PH8091014
HEX NUT M16-1.75
2
PW13M
FLAT WASHER 20MM
24
PH8091024
LINKING SHAFT
3
PH8091003
FRONT WHEEL
25
PH8091025
SPECIAL BOLT (LEFT)
4
PH8091004
SADDLE
26
PH8091026
PUMP CORE PIN
5
PH8091005
SADDLE BASE
27
PH8091027
HANDLE SOCKET
6
PH8091006
SADDLE BASE AXIS
28
PH8091028
HANDLE SOCKET SCREW
7
PR06M
EXT RETAINING RING 16MM
29
PH8091029
LINKING BLOCK
8
PH8091008
LINK ROD
30
PH8091030
COTTER PIN 4 X 47MM
9
PH8091009
LINKING BOLT
31
PH8091031
PULL SPRING
10
PH8091010
SIDE FRAME
32
PH8091032
PEDAL BASE
11
PLW04M
LOCK WASHER 8MM
33
PH8091033
GEAR
12
PN03M
HEX NUT M8-1.25
34
PH8091034
CYLINDER ASSEMBLY
13
PLW10M
LOCK WASHER 16MM
35
PH8091035
HANDLE
14
PH8091014
HEX NUT M16-1.75
36
PH8091036
RATCHET AXIS
15
PH8091015
REAR WHEEL ASSEMBLY
37
PW08M
FLAT WASHER 16MM
16
PR11M
EXT RETAINING RING 25MM
38
PH8091038
FLAT RATCHET
17
PLW05M
LOCK WASHER 12MM
39
PLW06M
LOCK WASHER 10MM
18
PB25M
HEX BOLT M12-1.75 X 25
40
PN08M
HEX NUT M10-1.25
19
PH8091019
LIFTING ARM
41
PW01M
FLAT WASHER 8MM
20
PH8091020
SPECIAL BOLT (RIGHT)
42
PH8091042
COTTER PIN 2MM X 12MM
21
PLW12M
LOCK WASHER 18MM
43
PH8091043
MACHINE LABEL
22
PH8091022
TORSION SPRING
The machine label warns about hazards and ways to prevent injury. The owner of the jack MUST
maintain the original location and readability of the label. If the label is removed or becomes
unreadable, contact Grizzly at (800) 523-4777 or www.grizzly.com to order a new label.
