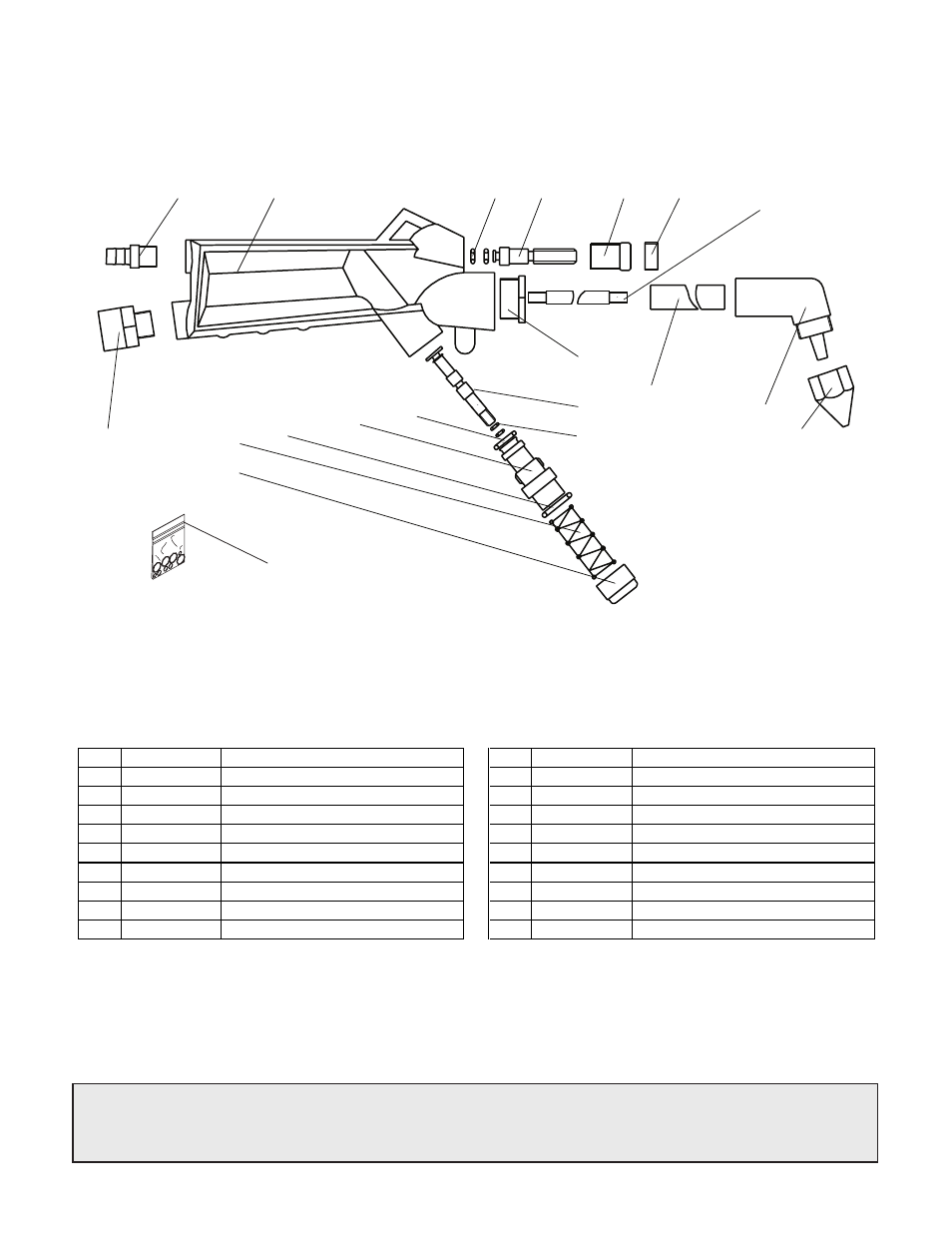

H3266 Parts Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH3266001 1/4" NPT MALE QUICK CONNECT 11 PH3266011 ROD
2 PH3266002 GUN BODY 12 PH3266012 O-RING
3 PH3266003 O-RING 13 PH3266013 O-RING
4 PH3266004 REGULATOR VALVE ROD 14 PH3266014 SWITCH BASE
5 PH3266005 SIPHON KNOB 15 PH3266015 SPECIAL NUT
6 PH3266006 SIPHON KNOB COVER 16 PH3266016 O-RING
7 PH3266007 SUCTION TUBE 17 PH3266017 COMPRESSION SPRING
8 PH3266008 NOZZLE CAP 18 PH3266018 SWITCH CAP
9 PH3266009 NOZZLE HEAD 19 PH3266019 AIR INLET
10 PH3266010 WAND *20 PH3266020 O-RING KIT
1 2 3 4 5 6
7
8
9
10
11
12
13
14
15
16
17
18
19
*20
COPyrIgHT © MAy, 2008 By grIzzLy INdUSTrIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROvAL OF GRIZZLY INDUSTRIAL, INC.
#JM10774 PrINTed IN CHINA
If you need help with your new pneumatic tool, call our Tech Support at: (570) 546-9663.
* Not Included; for aftermarket purchase only
