NOTE: Roof overhang should be no more than 36".
3"
MIN
12" MIN
12" MIN
36" MIN
(FOR SERVICE)
.
48" MIN

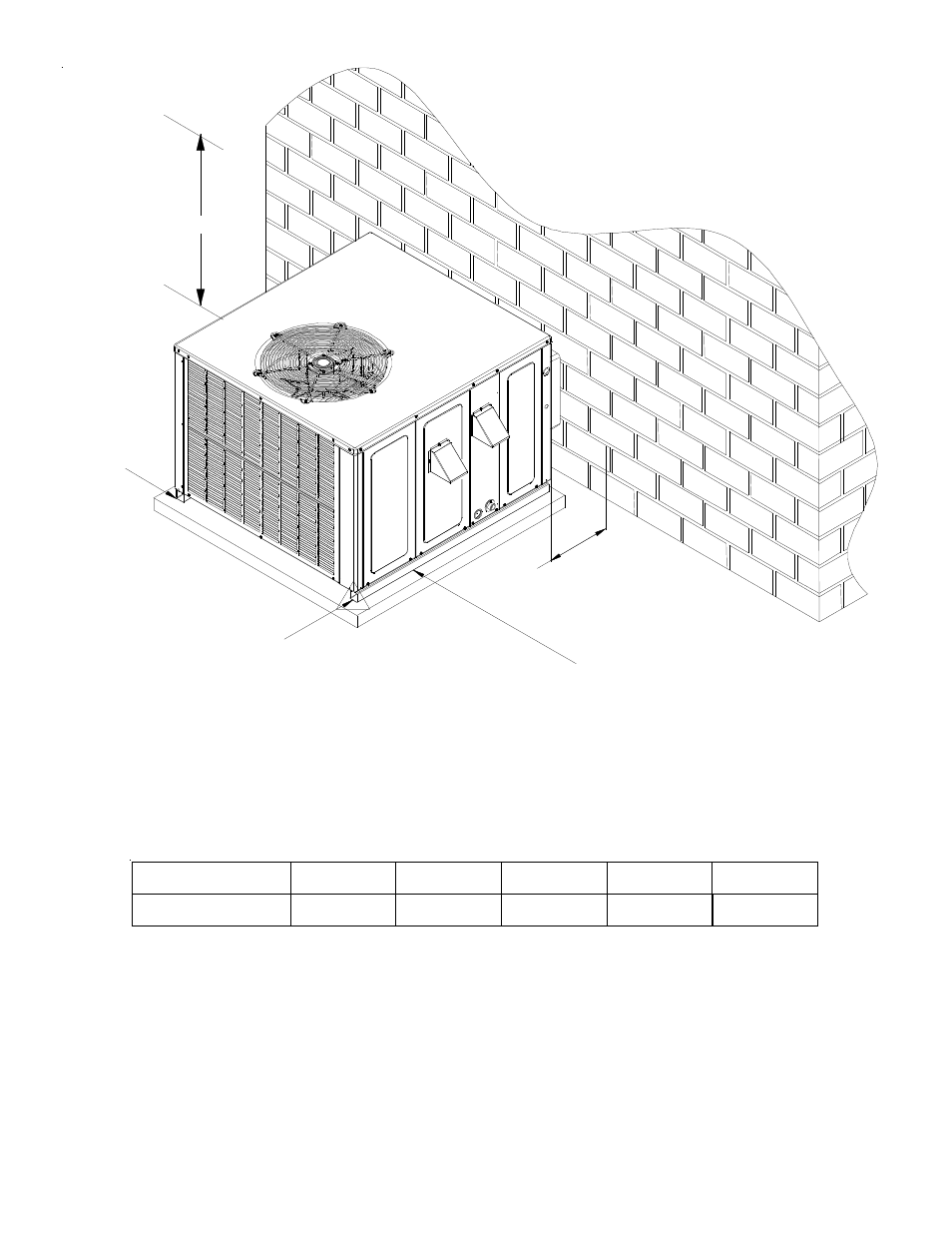

MINIMUM CLEARANCES
RECOMMENDED FILTER SIZES
UNIT
2 Ton
2 1/2 Ton
3 Ton
3 1/2 / 4 Ton
5 Ton
Min. Filter Size
(1)20 x 20 x 1
(1)20 x 25 x 1
(1)25 x 25 x1
(2)20 x 20 x 1
(2)20 x 25 x 1
