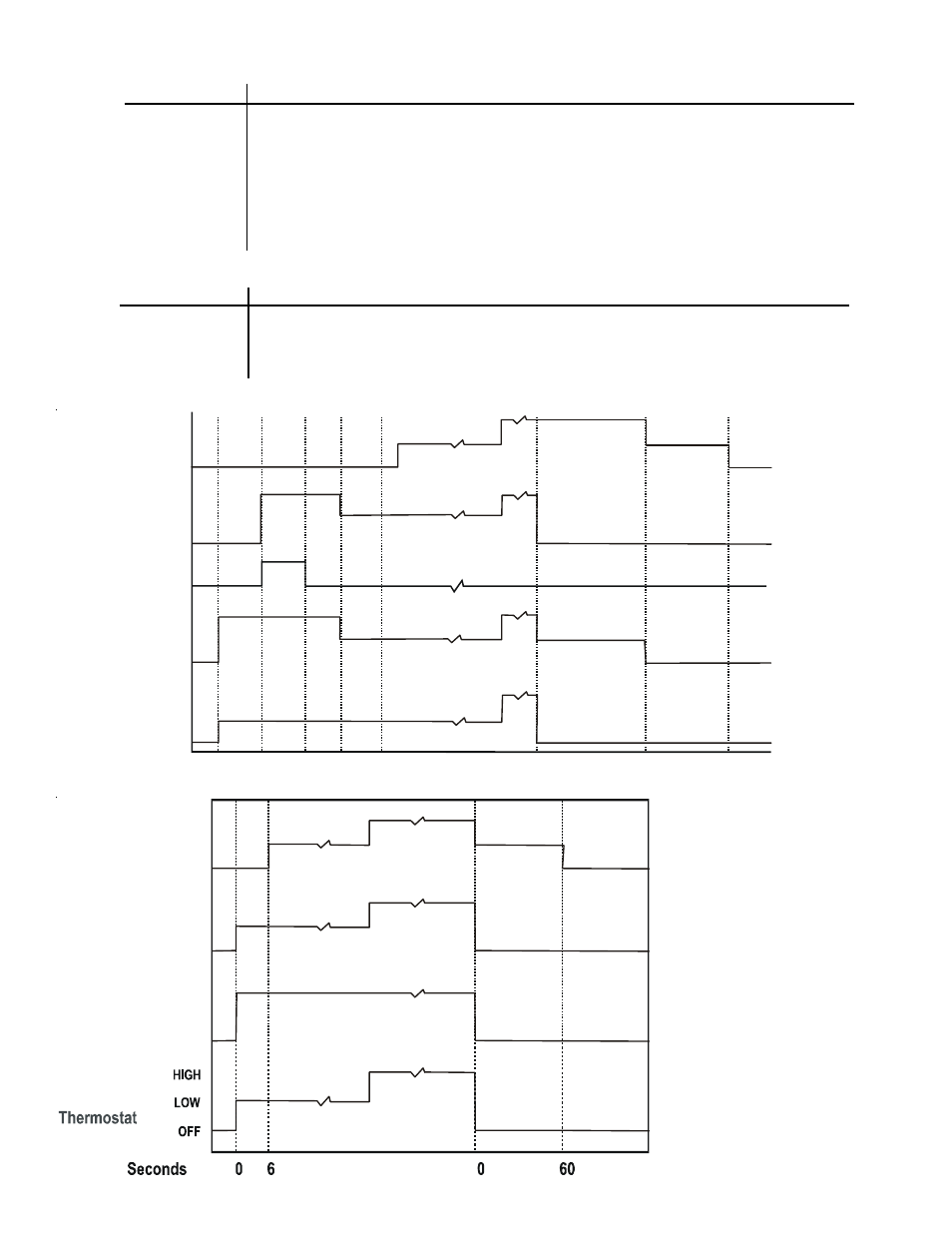

HEATING TIMING CHART

COOLING TIMING CHART

Red Light Signal Refer to Abnormal Heating or Cooling Operation Sections of this Manual

Off

Internal Control Failure

1 Flash

External Lockout

2 Flashes

Pressure Switch Stuck Open

3 Flashes

Pressure Switch Stuck Closed

4 Flashes

Thermal Protection Device Open

5 Flashes

Flame Detected with Gas Valve Closed

6 Flashes

Short Cycle Compressor Delay (Cooling Only)

7 Flashes

Limit Opened Five (5) Times Within The Same Call For Heat

8 Flashes

Indoor/Outdoor Thermostat Open (Cooling Only; Devices Not present On All Models)

9 Flashes

High Pressure/Loss of Charge Switch Open (Cooling Only; Devices Not Present On All Models)

Amber Light Signal Refer to Abnormal Heating or Cooling Operation Sections of this Manual

Off

No Flame Present

On

Normal Flame

1 Flash

Low Flame Current

2 Flashes

Flame Detected with Gas Valve De-energized.

90, 120, 150, 180

Circulator
Blower

HIGH

OFF

Seconds

Gas Valve

Igniter

Induced
Draft
Blower

Thermostat

0 15 22 27 52 0 30

LOW

HIGH

OFF

LOW

OFF

ON

HIGH

OFF

LOW

HIGH

OFF

LOW

Circulator
Blower

Compressor

Outdoor Fan

HIGH

OFF

LOW

HIGH

OFF

LOW

HIGH

OFF

LOW

IGNITION CONTROL DIAGNOSTIC INDICATOR CHART
