Model H8234 28° Framing Nailer -9 -
operations
loading
When replacing nails in your model
h8234, follow these guidelines:
Nail Size ...................... 1 ⁄
8
" Shank Diameter
Nail Strip Angle ............... 28º Clipped Head
Length..............................................2"–3
1 ⁄
2
"
Magazine Capacity .................. 2 x 25 Nails
to load your nailer:
1. DISCONNeCT NAILeR FROM THe
AIR SUPPLY!
2. Grip the nailer firmly, and pull the
magazine pusher back until the catch
lever engages, as shown in
figure 3.
3. Insert a strip of nails, pointed-end
down, into the magazine as shown in
figure 4.
if you have not read the safety instruc-
tions in this manual, do not operate the
nailer.
Before you operate your nailer, place five
to six drops of the included oil into the
quick connect fitting where the nailer con-
nects to the air supply.
to operate your nailer:
1. Connect the air supply to the quick con-
nect fitting.
2. To test for proper nail penetration, hold
the nailer perpendicular to the surface
of a piece of clean scrap wood that is
thick enough for the length of nails you
have loaded.
operating
4. Tilt the nailer to slide the nails all the
way down to the nose.
5. With one hand on the magazine pusher
for control, release the magazine catch
and slowly allow the pusher to press
against the nails.

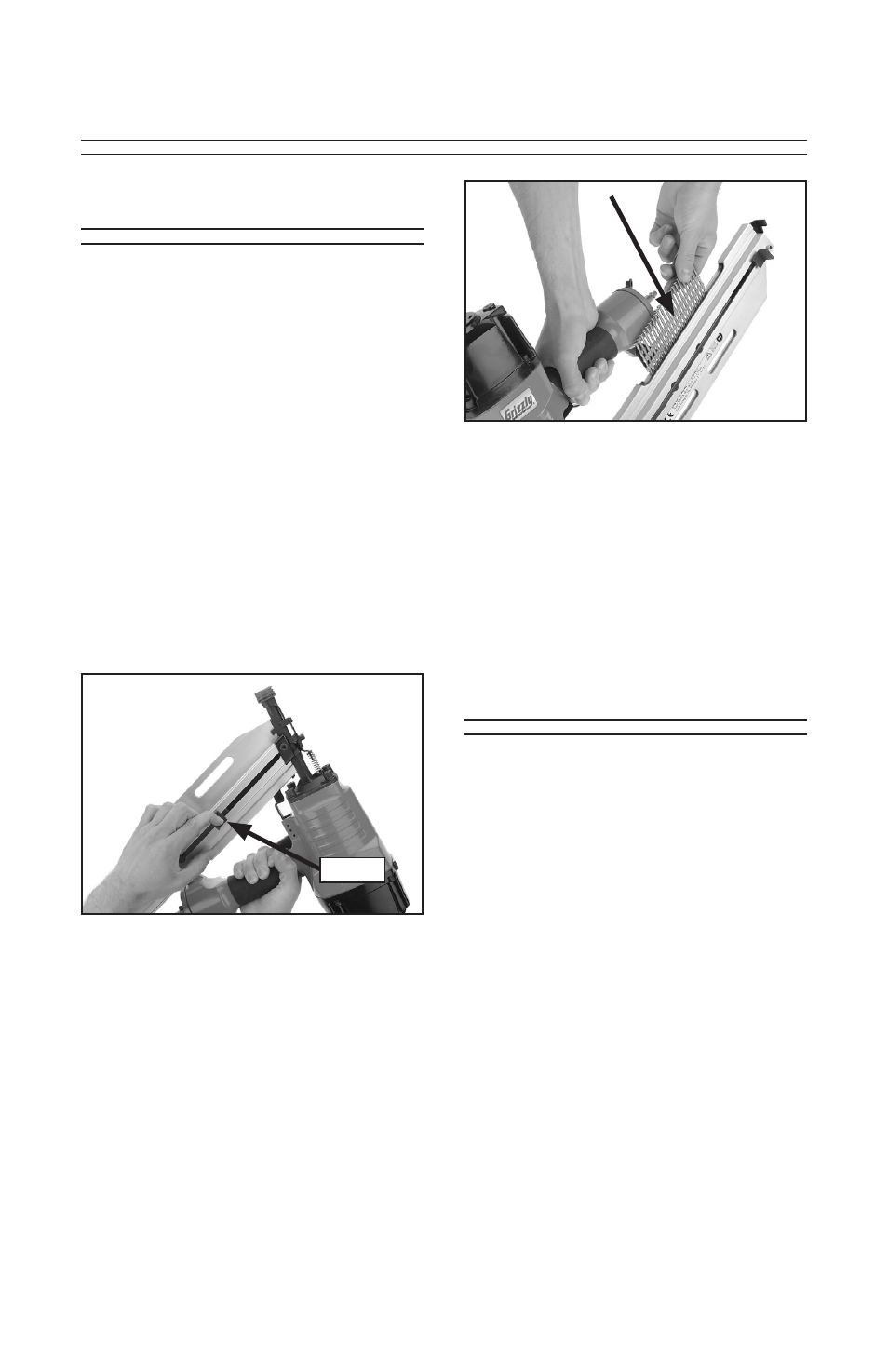

figure 4. Loading nails into magazine.
figure 3. Sliding magazine pusher back
and engaging catch lever.
Pusher
