GarrettCom Magnum S14 User Manual
Page 37
S14 Convenient Switches
Installation and User Guide (06/04)
30
www GarrettCom com
.
.

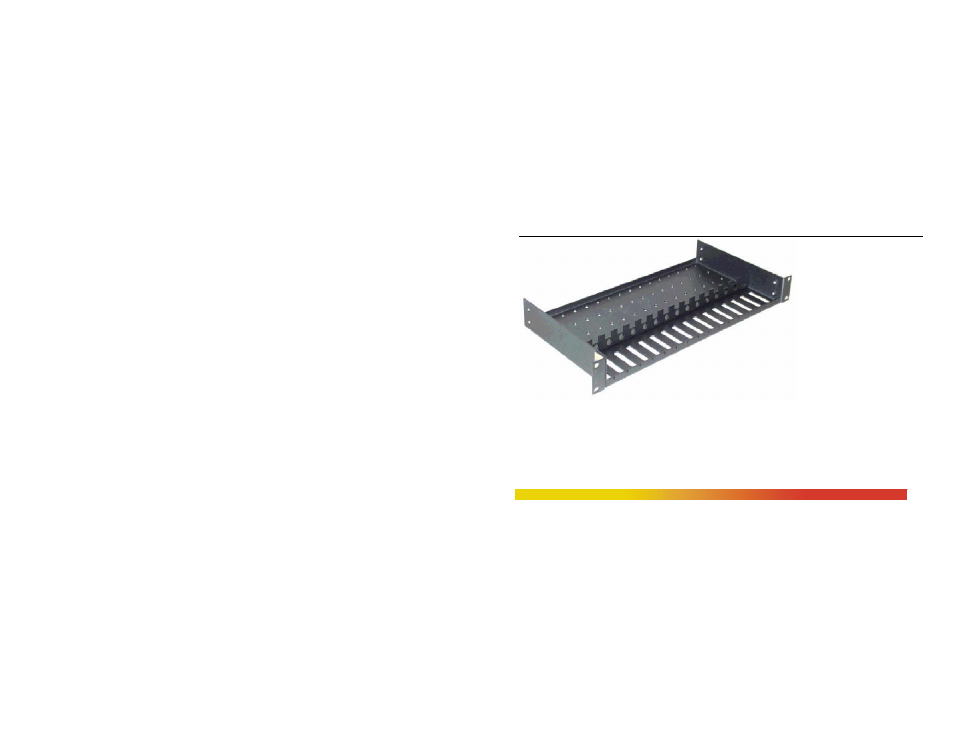

A typical installation of the
model MC14-TRAY, 19” rack-mount tray will hold a few (often three to eight) S14-series
Convenient Switches, with their power supplies plugged into power strips (not included) in
the rear area of the tray. Metal mounting screws in the bottom-front hold the Media
Converters firmly in place. The beveled-top edge of the units permits the LEDs of each unit
to be viewed for operational status, even when the units are very close together.
