GarrettCom Magnum S14 User Manual
Page 12
S14 Convenient Switches
Installation and User Guide (06/04)
5
www GarrettCom com
.
.

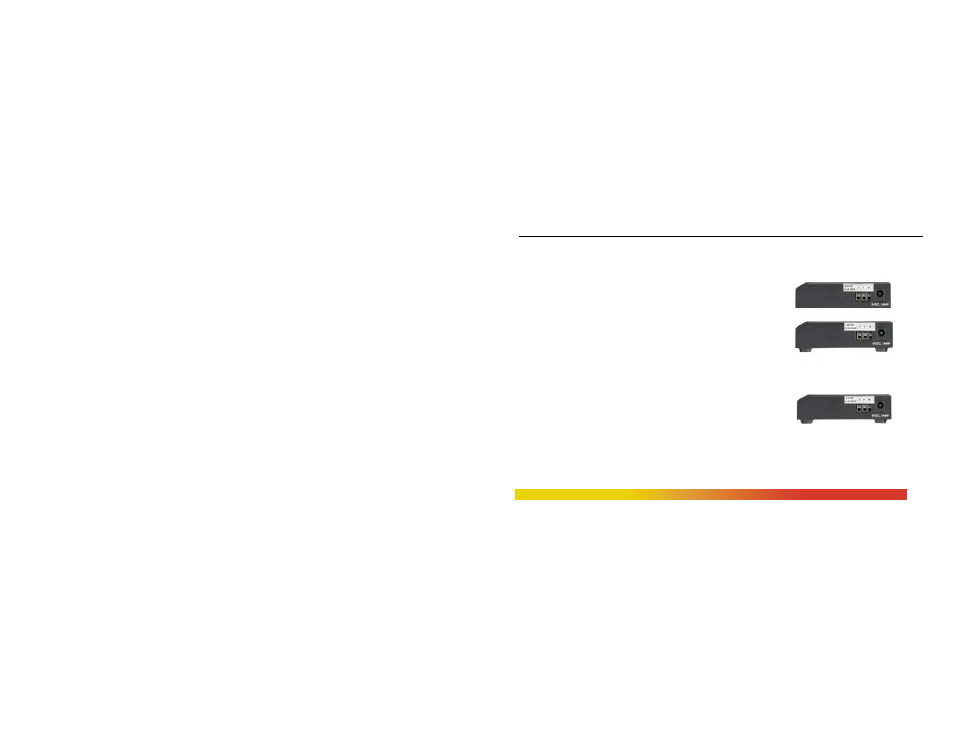

Power Supply ( Direct DC ): built-in screw terminal
block for +, -, ground. The 12V DC jack is also present.
12V DC internal (range of 8.0 to 15V DC),
24V DC internal (range of 18 to 36V DC)
-48V DC internal (range of 36 to 60V DC) t.
Power Consumption: 3 watts typical, 4 watts max.
Note 1: 8-15V DC can be used for dual source DC input
Note 2: Internal DC power floats, user may ground “+”
or “-” if desired.
Port Connectors:
RJ-45 Port: Auto-cross(MDIX), 100BASE-TX and 10BASE-T:shielded 8-pin
female. Three RJ-45 port provided in front and one on the rear. Supports shielded
