GE Monogram ZIC360NM - Manual (Page 4)

Monogram. ™
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker

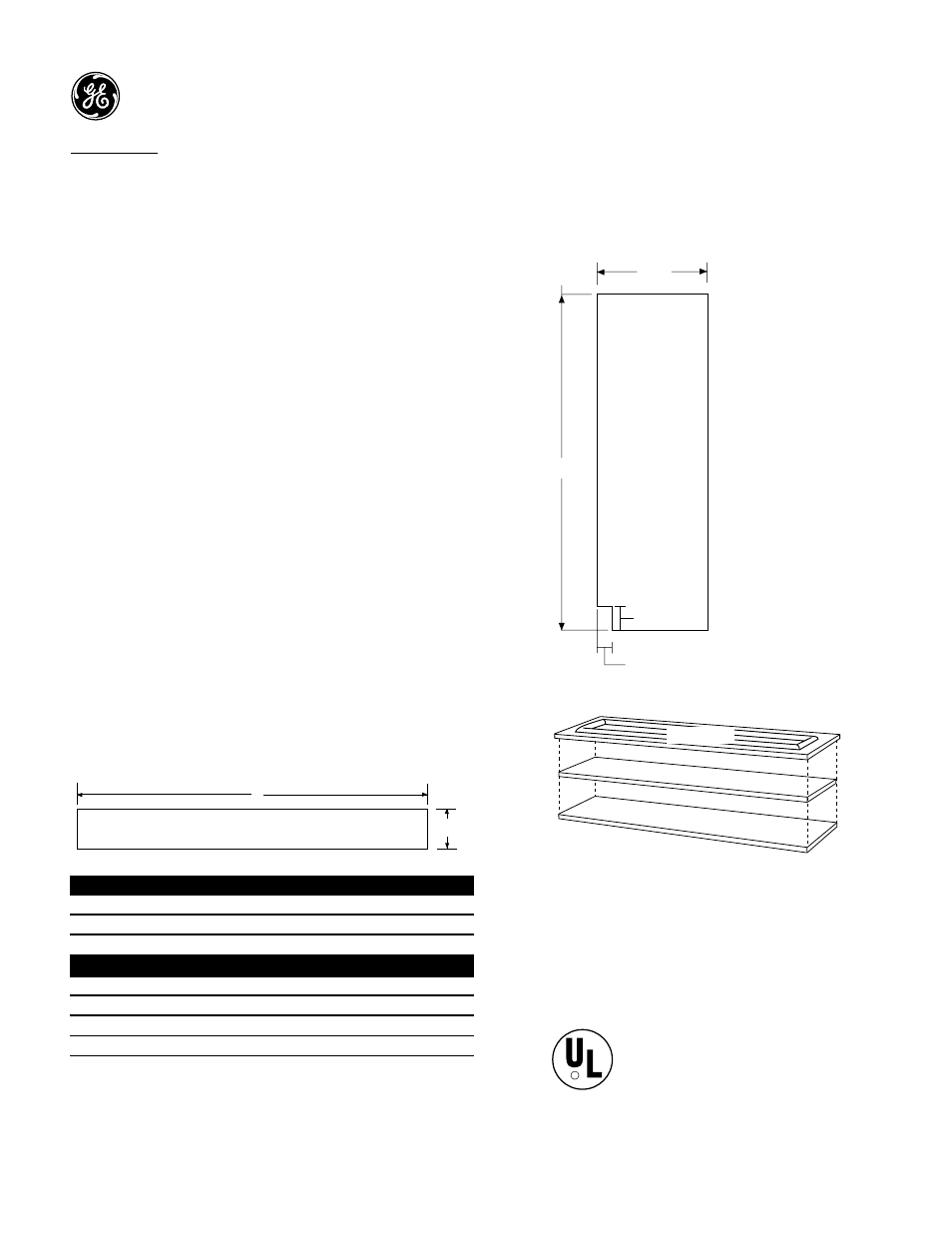

SIDE PANELS
Side panels must be used whenever the sides of the refrigerator
will be exposed. The 1/4" side panels will slip into the side case
trim. Order the side panels from the cabinet manufacturer.
*84"
2-9/16"
24"
*3" to 4"
* Depending on
installation height.
ZUG2 GRILLE PANEL DIMENSIONS
The ZUG2 unified grille panel kit provides for the installation
of a framed or overlay grille panel.
Framed Panel Dimensions
A (Width) B (Height)
1/4" Framed Panel 69-7/8" 8-7/8"
Overlay Panel Dimensions
A (Width) B (Height)
1/4" Backer Panel 69-7/8" 8-7/8"
0.10" Spacer Panel 68-1/2" 7-5/8"
3/4" Overlay Panel 70-1/8" 9"
Spacer Panel
Backer Panel
Overlay Panel
Assemble the overlay panels in the same manner
as the door and drawer panels.
A
B Grille Panel
Specification Revised 8/02
For answers to your Monogram, ® GE Profile ™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
® service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
