ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker
Design Guide
ZUG2 Unified Grille Panel Kit

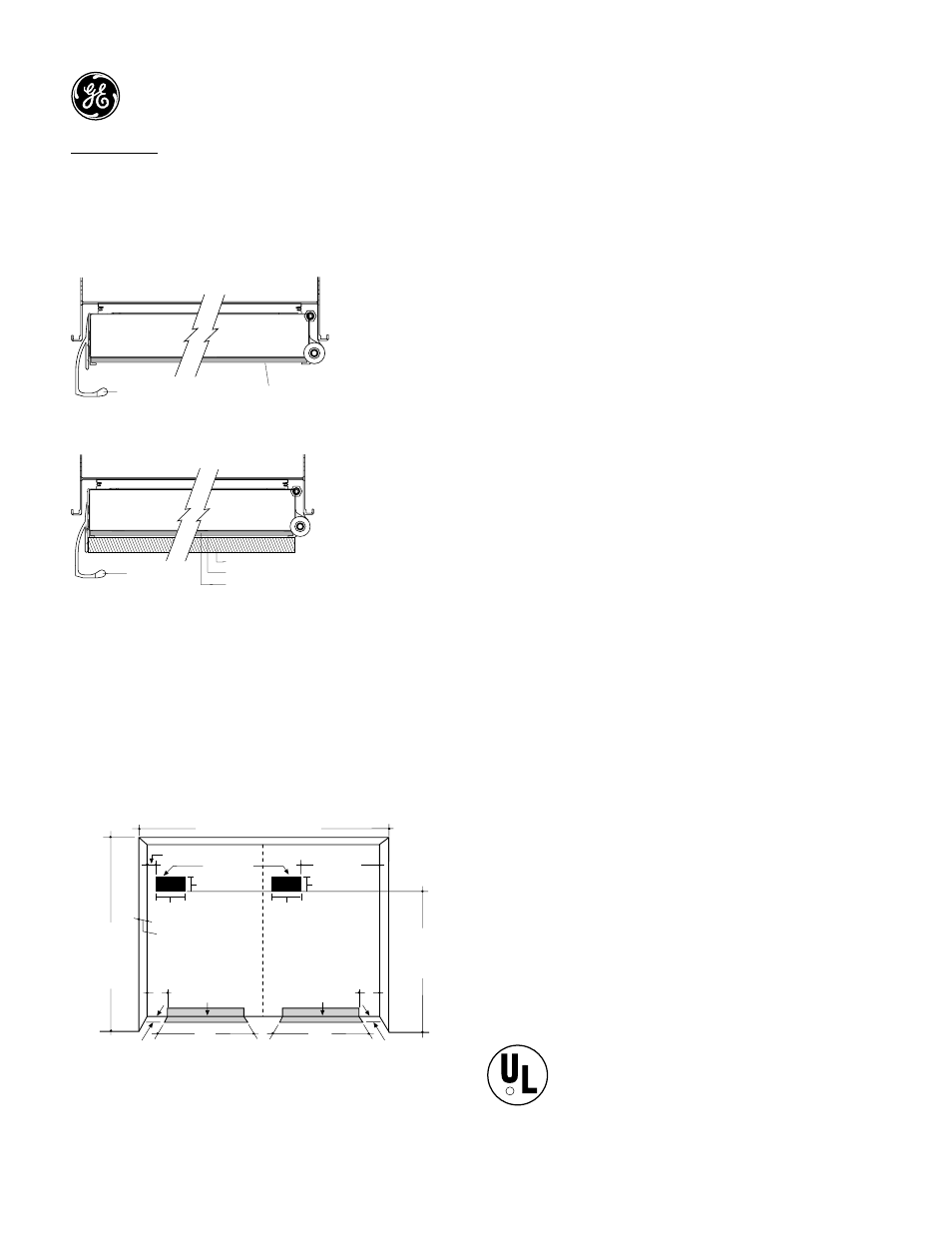

• If you are installing two refrigerators, side by side, the installation
space must be 71-1/2" wide.
Note: Additional cutout width may be required when side panels are
used. Add side panel thickness to the finished cutout to calculate
rough-in width.
• The water and electrical locations for each product must be located
as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is recommended
for each product.
2-5/16"
74-1/2" From
Floor to Bottom
of Electrical
84-1/2" max
83-1/2" min
Finished
Opening
71-1/2" Finished Width
Electrical
5"
3-1/2"
24" Cutout
Depth
Water Supply
Wall View
24-3/16"
26"
7"
10"
7"
10"
Water Supply
26"
5"
3-1/2"
Specification Revised 8/02
Framed panels
You may install 1/4" thick custom panels from your cabinet manufacturer.
The decorative panel slides into the factory installed trim. Or, order
black, white and stainless steel accessory panels from your
Monogram dealer.
Overlay panels
You may also choose to install custom overlay panels from your cabinet
manufacturer. This design provides a seamless appearance which
integrates smoothly with surrounding cabinetry.
Door and Drawer Handles
The standard supplied handles can be adjusted to accommodate both
framed or overlay panels. Custom handles of your choice, supplied by
your cabinet maker can also be installed. If desired, you may order
ZKHCSS2 Monogram stainless steel tubular handle kit for overlay panels.
Side Panels
Side panels must be used whenever the sides of the refrigerator will
be exposed.
Optional Accessory Kits
• ZKHCSS2: Monogram Tubular Stainless Steel handles designed to fit
overlay panels.
• ZUG2: For side by side installation of two trimmed bottom-freezer
refrigerators. This kit provides for the installation of a unified custom grille
panel to span the width of two units using a framed or overlay panel.
Accessory Panels
White, black and stainless steel accessory panels are available from your
Monogram dealer. Panels are cut to size and ready to install.
ZPBC360 – Black, ZPWC360 – White, ZPSC360 – Stainless Steel Panels
Standard Door Handle Framed Panel
Standard
Door Handle
3/4" Overlay Panel
1/4" Thick Backer Panel
.10" Thick Spacer Panel
Standard supplied handles shown in 1/4" panel position.
Standard supplied handles shown in 3/4" overlay panel position.
For answers to your Monogram, ® GE Profile ™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
® service, 800.626.2000.
