7 ABB
1SLC805031F0001
Size Dimensions Modules Codes / el.nummer

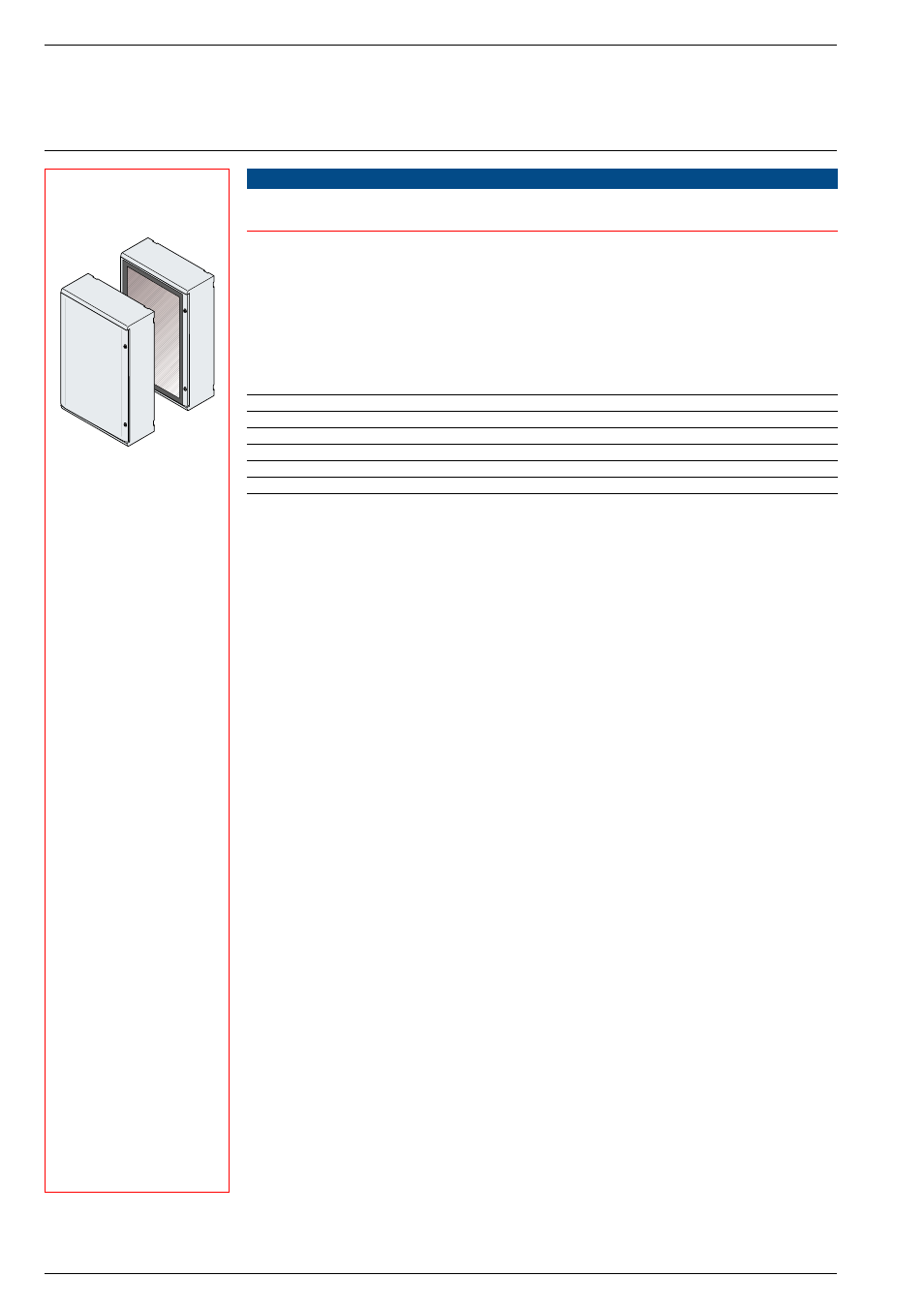

Boxes and doors
• Available in 6 sizes
• Single order code combined with box and transparent and opaque door
• Pack with door dismounted and wrapped separately
• Door designed so that it can be hooked onto hinges at both vertical sides and mounted without the use of tools
• To be mounted to the wall using internal holes or fixing brackets supplied as accessories
• Door opening at an angle of more than 180
°
• RAL 7035 grey color
• Doors supplied with 2 standard double bit locks (3 for sizes 5 and 6) that can be replaced with locks for ciphered key or
with square/triangular impression (the standard triplex key is suitable for use with three types of impressions).
External Internal Max no. No. vertical mod. With transparent With opaque
WxHxD (mm) WxHxD (mm) DIN mod. (H=150 mm) door door
1 335x400x210 250x300x180 24 (12x2) 2 1SL0211A00 / 2444310 1SL0201A00 / 2444304
2 460x550x260 375x450x230 54 (18x3) 3 1SL0212A00 / 2444311 1SL0202A00 / 2444305
3 460x700x260 375x600x230 72 (18x4) 4 1SL0213A00 / 2444312 1SL0203A00 / 2444306
4 590x700x260 500x600x230 96 (24x4) 4 1SL0214A00 / 2444313 1SL0204A00 / 2444307
5 590x855x360 500x750x330 120 (24x5) 5 1SL0215A00 / 2444314 1SL0205A00 / 2444308
6 840x1005x360 750x900x330 216 (36x6) 6 1SL0216A00 / 2444315 1SL0206A00 / 2444309
Order codes / el.nummer
Basic configurations
