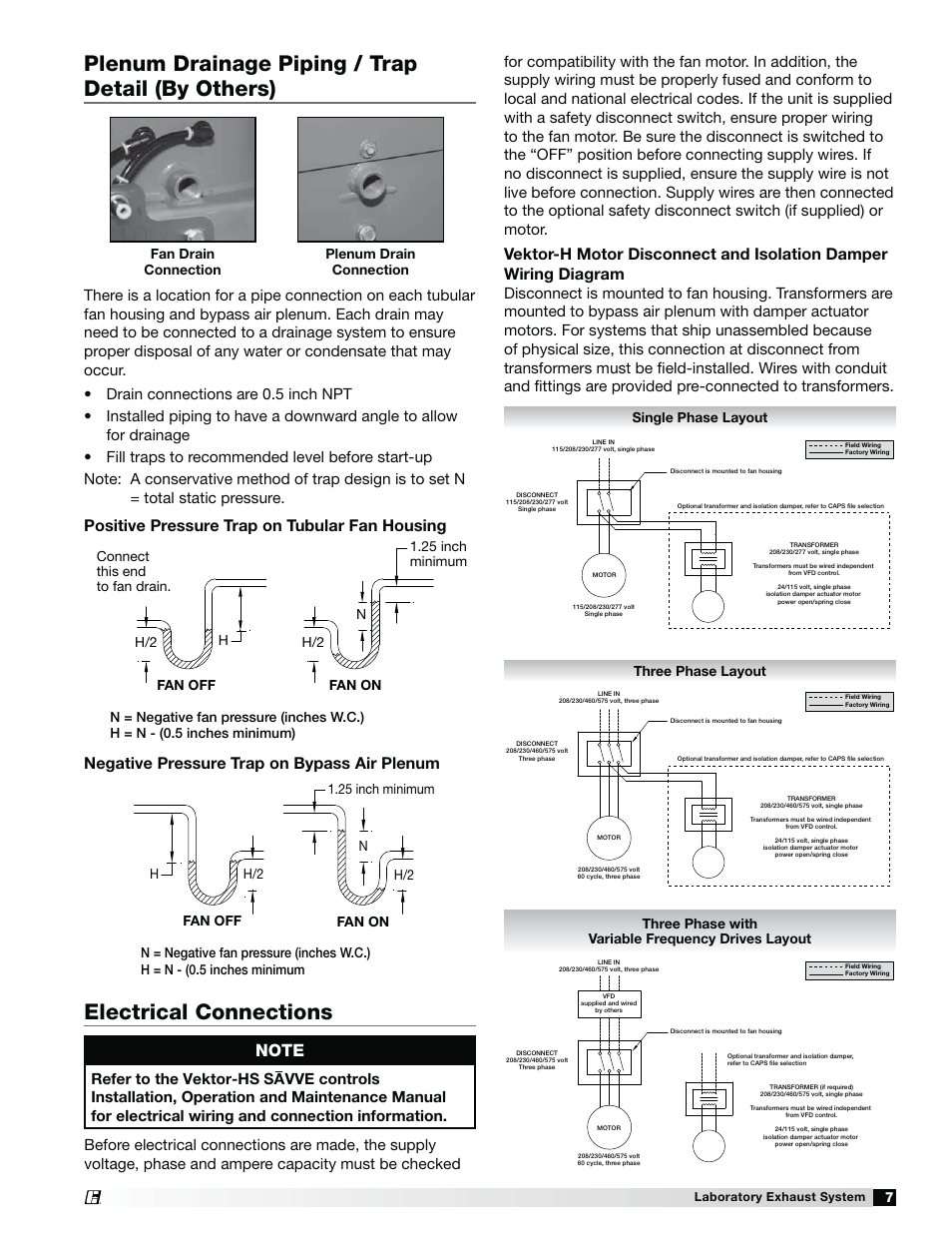

Plenum drainage piping / trap detail (by others), Electrical connections, Positive pressure trap on tubular fan housing – Greenheck Fan Laboratory Exhaust System Vektor-HS User Manual
Page 7: Negative pressure trap on bypass air plenum, Fan drain connection plenum drain connection, Single phase layout, Three phase layout, Three phase with variable frequency drives layout
Plenum drainage piping / trap detail (by others), Electrical connections, Positive pressure trap on tubular fan housing | Negative pressure trap on bypass air plenum, Fan drain connection plenum drain connection, Single phase layout, Three phase layout, Three phase with variable frequency drives layout | Greenheck Fan Laboratory Exhaust System Vektor-HS User Manual | Page 7 / 12 This manual is related to the following products:
