Introduction

This compact

3

8

" Reversible Air Drill features a

pistol grip handle, 1800 RPM free speed, and

3

8

" drilling capacity. Average air consumption is

6 CFM and the recommended air pressure is 90
PSI. Includes a

1

4

" NPT quick connect fitting and

chuck key.

Inventory

A. Air Drill ........................................................ 1

B.

1

4

" NPT Quick Connect Fitting (male) ........ 1

C. Chuck Key .................................................. 1

Lubricating Your New Air Drill

Lubricate your air drill with pneumatic tool oil. If
you do not have a lubricator installed in your air
line, place one drop of pneumatic tool oil into the
air fitting daily, as shown in

Figure 2.

3

8

" REVERSIBLE AIR

DRILL

MODEL H6362

INSTRUCTION SHEET

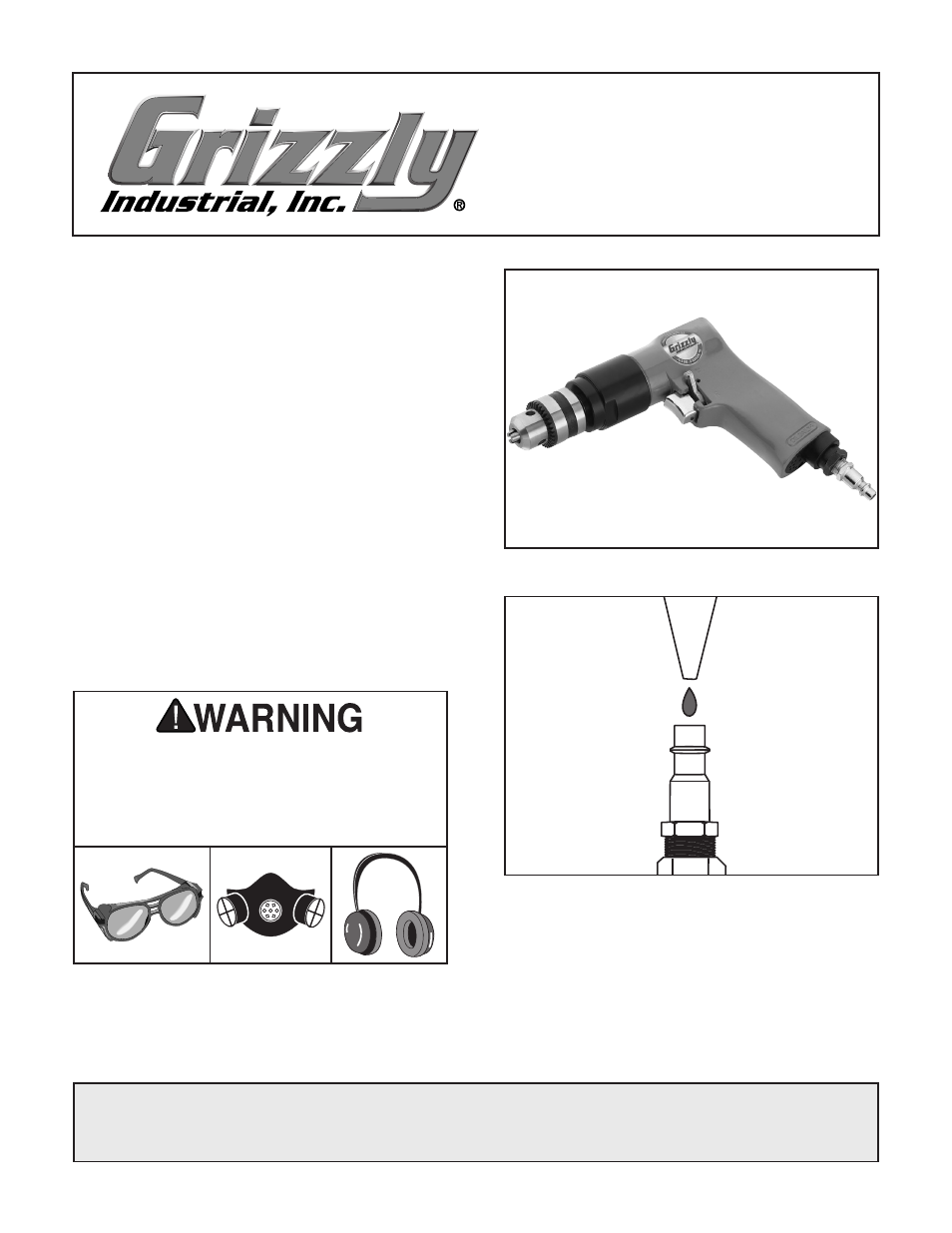

Figure 1.

Model H6362.

Damage to your eyes, lungs, and ears could

result from using this drill without proper

protective gear. Always wear safety glasses,

a respirator, and hearing protection while

drilling.

Figure 2.

Lubricating the Model H6362.

Need Help?

If you need help with your new air drill, call our
service department at: (570) 546-9663.

COPYRIGHT © NOVEMBER, 2004 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TR6752 PRINTED IN CHINA
