Installation

Wiring Harness Installation (continued)

If your boat does not have a fuse block, the unit can be wired directly

to the battery. Make sure the 2-Amp in-line fuse supplied with the unit
is installed.

The Fishfi nder 160 can be connected to another piece of NMEA com-

patible electronic equipment. If equipped with a capable transducer, the
Fishfi nder 160 sends depth, temperature and speed information that could
be displayed on another device.

2-Amp In-Line Fuse

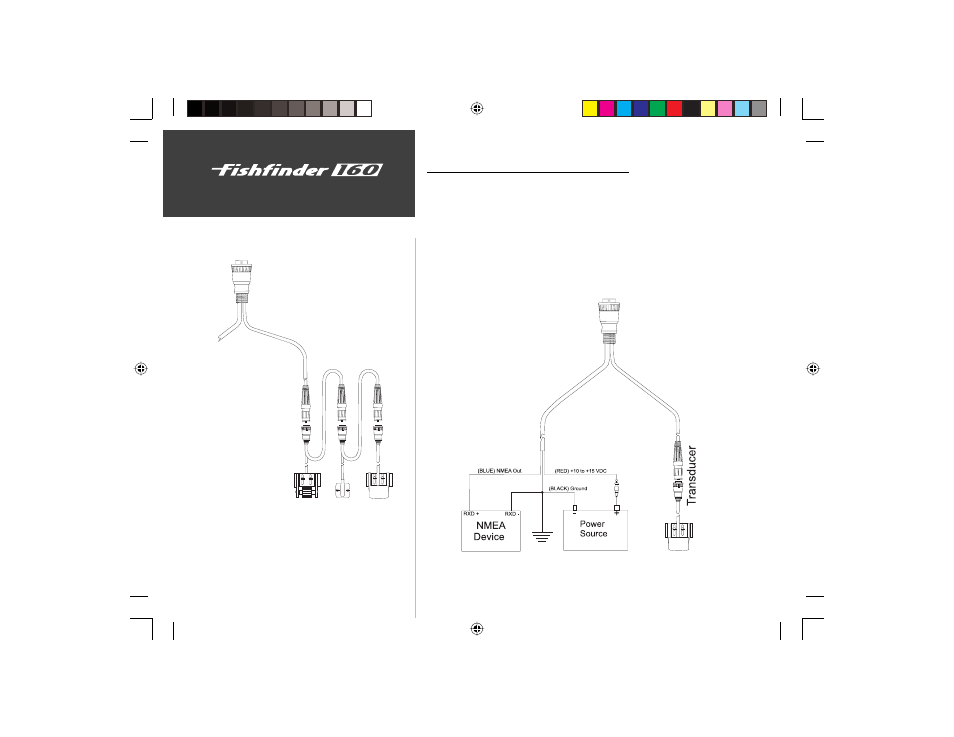

Connecting a Transducer to Multiple Sensors

Installing the Wiring Harness

Speed

Temp

Transducer

Power/Data
Connection
