For answers to your Monogram, ® GE Profile ™
or GE ® appliance questions, visit our website
at ge.com or call GE Answer Center ® service,
800.626.2000.
110168 Specification Revised 11/08
Listed by
Underwriters
Laboratories
ZIS480NX
GE Monogram ® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
696Dia5
1/4"
1/2"
3/4"
1"
1-1/4"
1"
3/4" Overlay
Panel
(Nominal Size)
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Door
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim

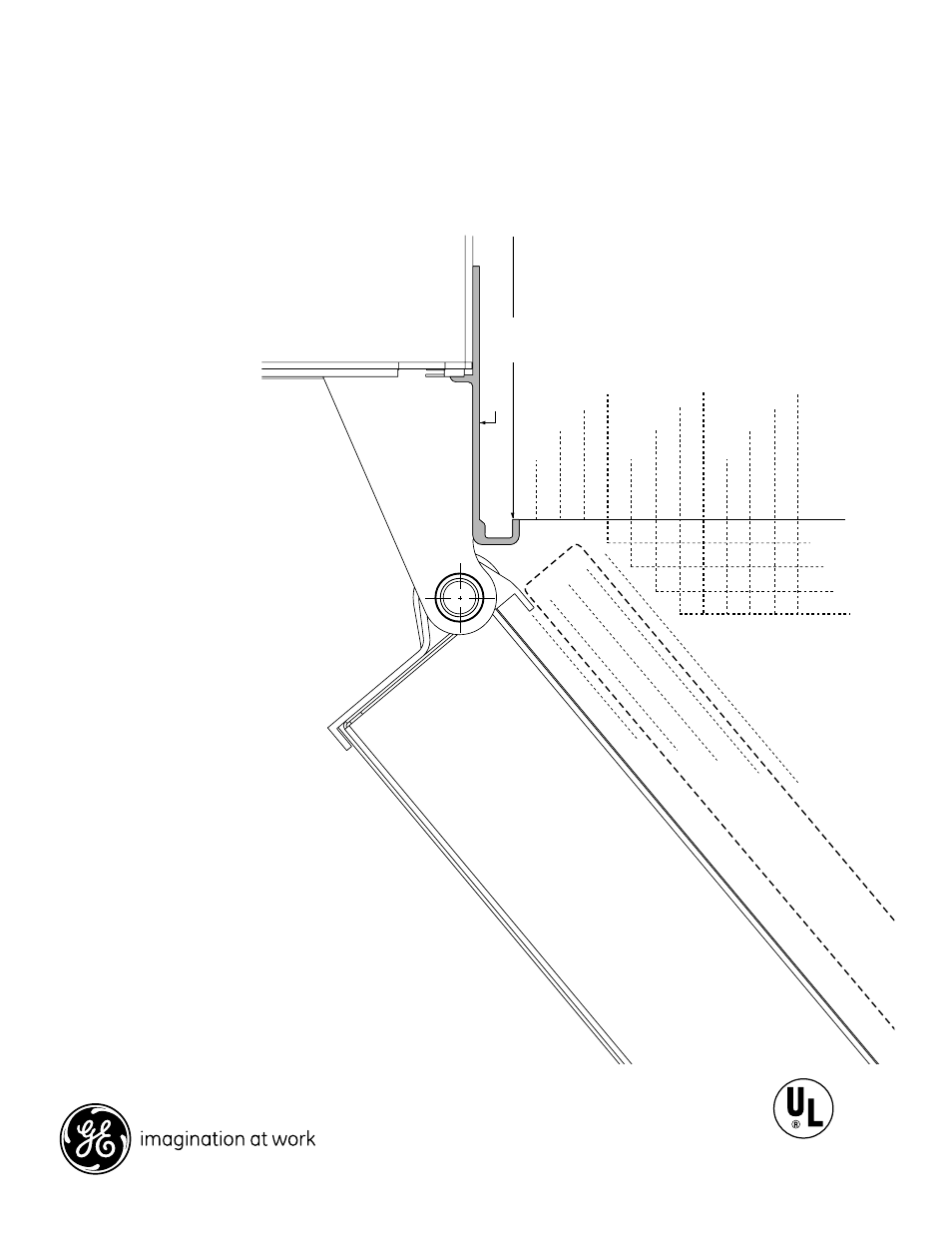

Top View
130° Door Swing
(Factory setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with
two dispenser trims, one to fit framed
panels and one for overlay panels.
Dispenser trim fit to the custom panel
depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown
to accomplish a total
1.100" thickness.
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door
swing. The opening must allow for filler strips.
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Advance Planning for Built-In Custom Side-by-Side Refrigerators
