Graphic Target Profiling 1350
™

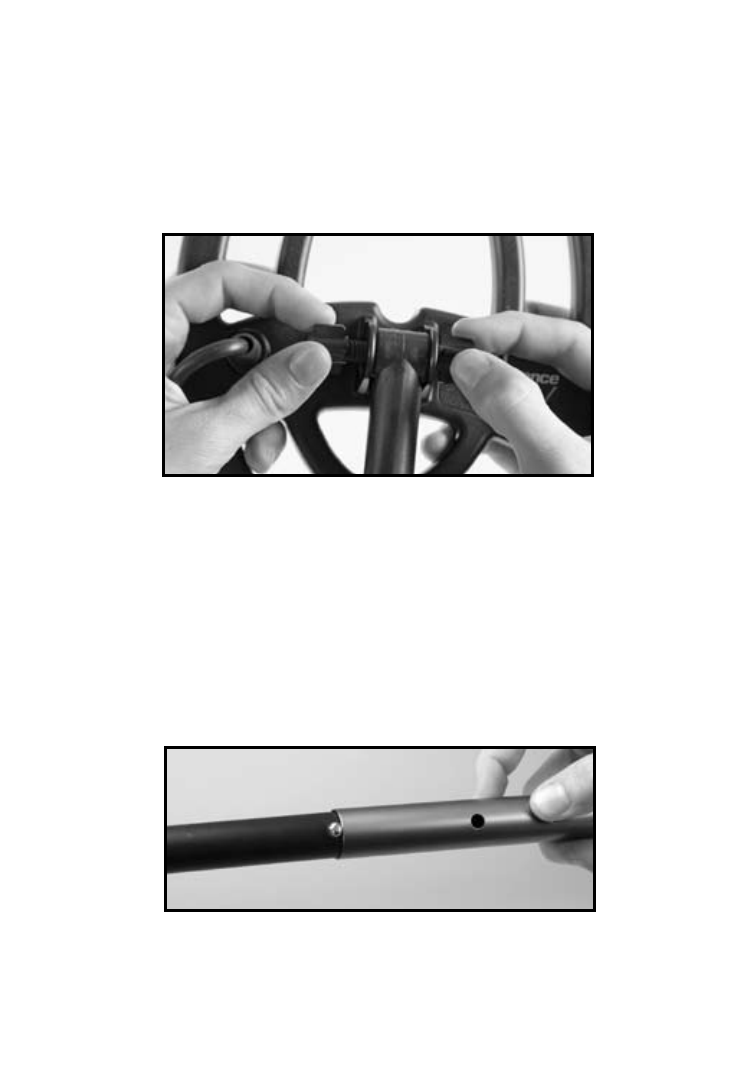

3. Insert the Threaded Bolt through the holes of
the Lower Stem and Searchcoil. Hand-tighten the
searchcoil assembly with the remaining Wing Nut.
See Figure 3.
Figure 3
4. Depress the Spring Clip and insert the Control
Housing into the Upper Stem.
5. Depress the Spring Clip in the Lower Stem to
adjust to the most comfortable operating length.
See Figure 4.
Figure 4
