- 22 -

HOT WATER

OUTLET

ANODE (UNDER

PLASTIC CAP)

T&P VALVE

DRAIN VALVE

CLEANOUT PORT

(BEHIND ACCESS

DOOR)

COLD WATER

INLET

PLUGS FOR

UNUSED

ELEMENT

LOCATIONS

ELEMENTS

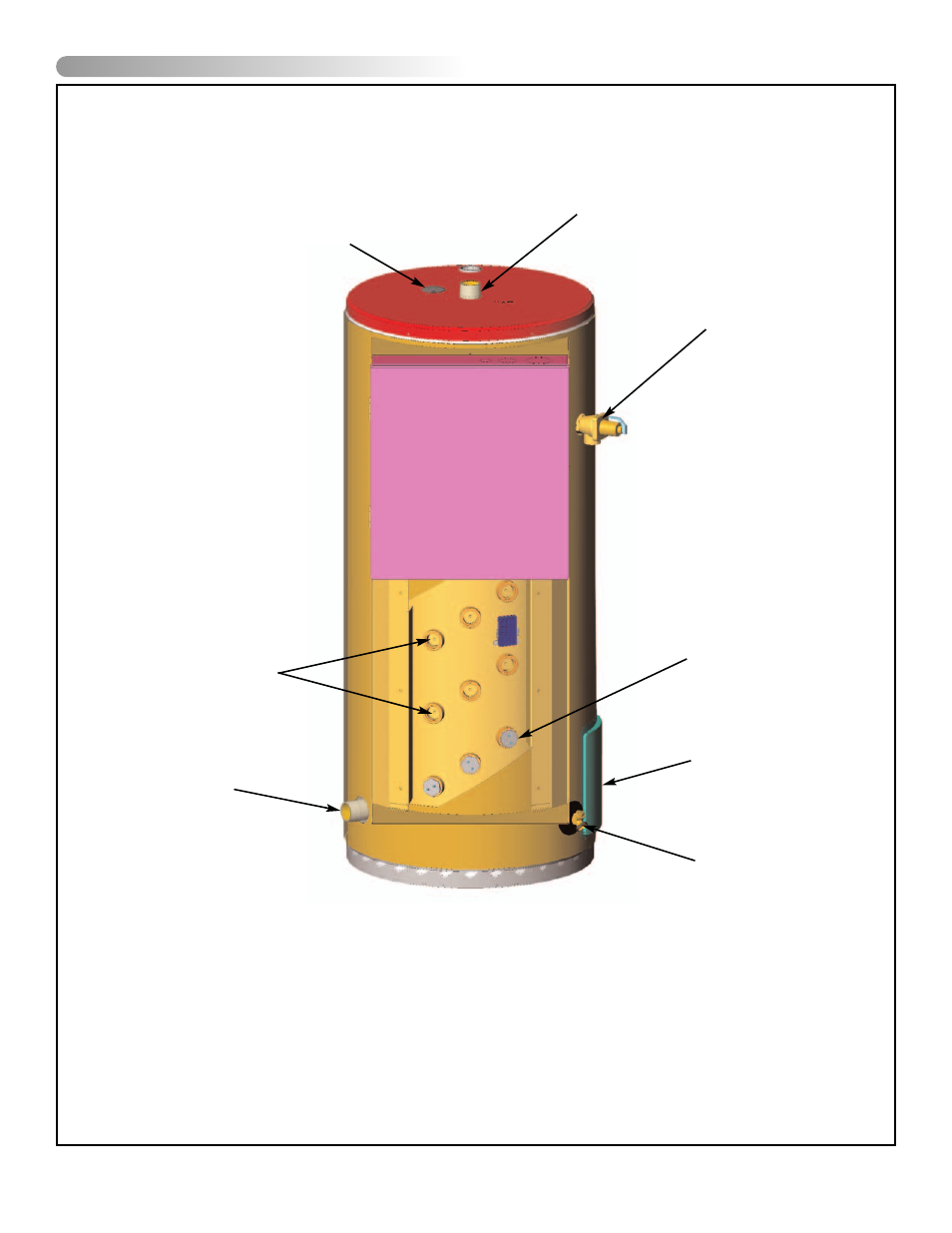

FIGURE 21: Possible leakage points

VIII) LEAKAGE CHECKPOINTS
