IR REMOTE CONTROL
Installing the Battery
The Remote Control unit ships with two batteries (CR-2032 lithium battery).
One battery is required for operation and the other battery is a spare.
1. Remove the battery cover on the back of the IR Remote Control unit.
2. Insert the included battery into the open battery slot. The positive (+) side
of the battery should be facing up.
3. Replace the battery cover.
Setting the IR Channel
The IR channel on the IR Remote Control must match the IR channel used
by the 4x2 Switcher for HDMI 1.3. For example, if both DIP switches on the IR
Remote Control unit are set to IR channel 0 (both DIP switches down), then
the 4x2 Switcher for HDMI 1.3 must also be set to IR channel 0.
3 See the next
page for information on how to change the IR channel on the 4x2 Switcher for
HDMI 1.3.

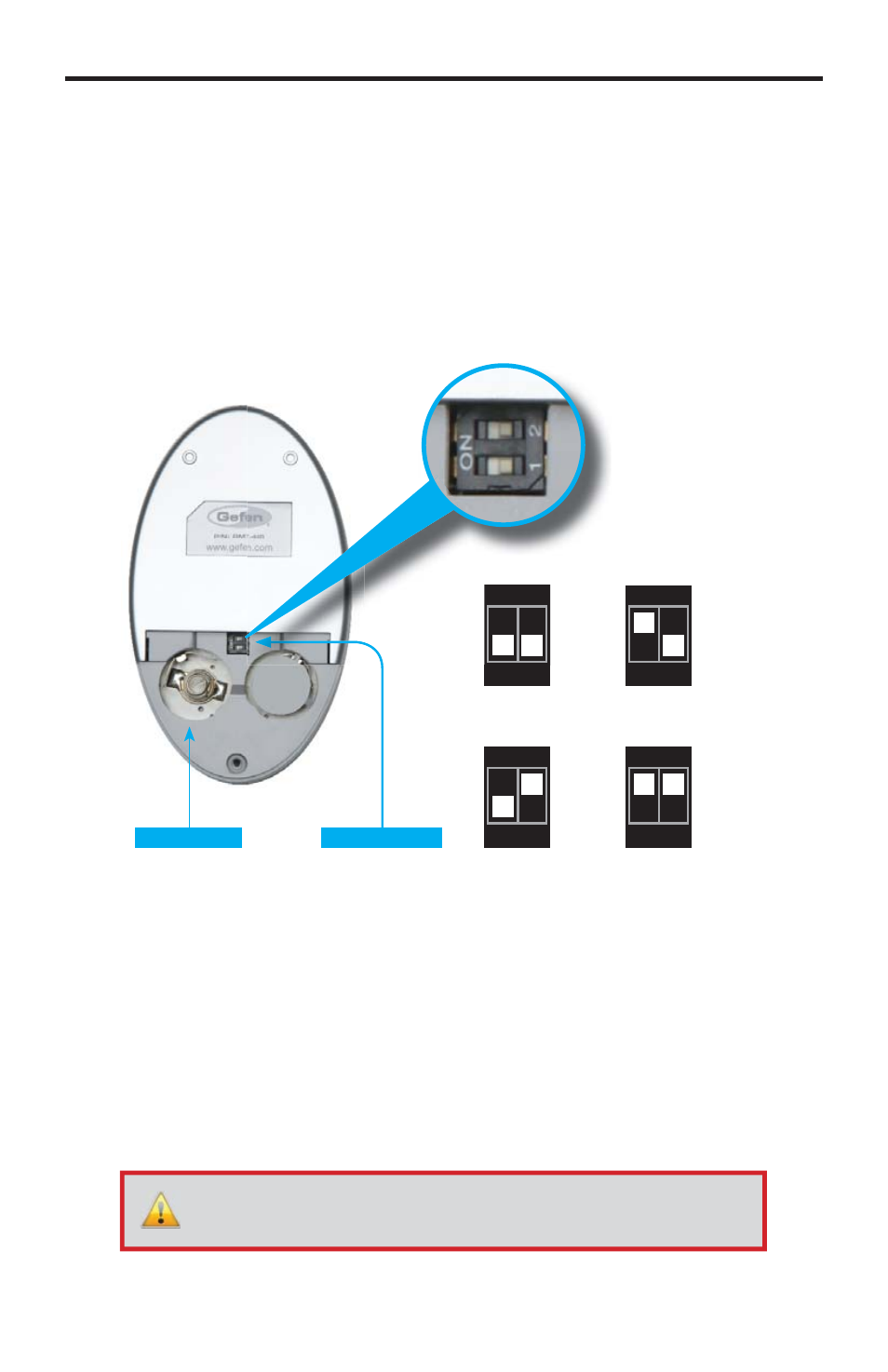

Remote Channel 2: Remote Channel 3:
Remote Channel 1:
y Battery slot DIP switches
Channel 0 (default):
y
1 2
ON
1 2
ON
1 2
ON
1 2
ON
1 2
WARNING: Risk of explosion if battery is replaced by an incorrect
type. Use only CR-2032 3V lithium batteries.
