Gefen EXT-HDMI1.3-442 User Manual
Page 10
6
How to Connect the 4x2 Switcher for HDMI 1.3
1.
Connect up to two HDMI source devices to the 4x2 Switcher for HDMI 1.3
using the supplied HDMI cables.
2.
Connect up to four HDMI capable devices to the 4x2 Switcher for HDMI 1.3
using the supplied HDMI cables.
3.
Connect the included 5V DC power adapter to the 4x2 Switcher for HDMI
1.3 power input port.
4.
Power on the displays fi rst and then the source.

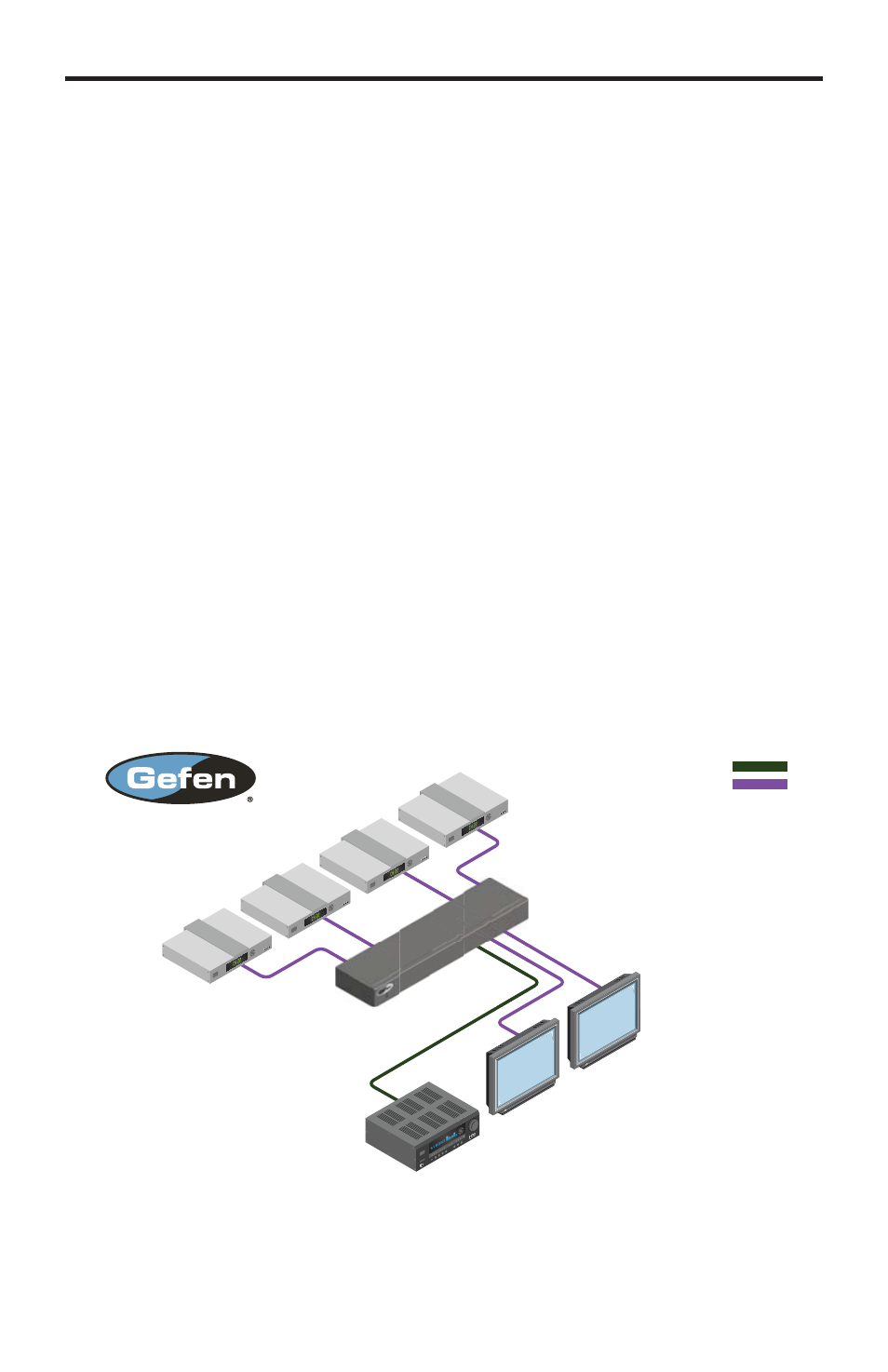

Wiring Diagram for the Gefen 4x2 Switcher for HDMI 1.3
EXT-HDMI1.3-442
Hi-Def Source
Hi-Def Source
Hi-Def Source
Hi-Def Source
Switcher for HDMI
Audio Receiver
HD Display
HD Display
DIGITAL AUDIO (COAX) CABLE
HDMI CABLE
CONNECTING AND OPERATING
THE 4X2 SWITCHER FOR HDMI 1.3
