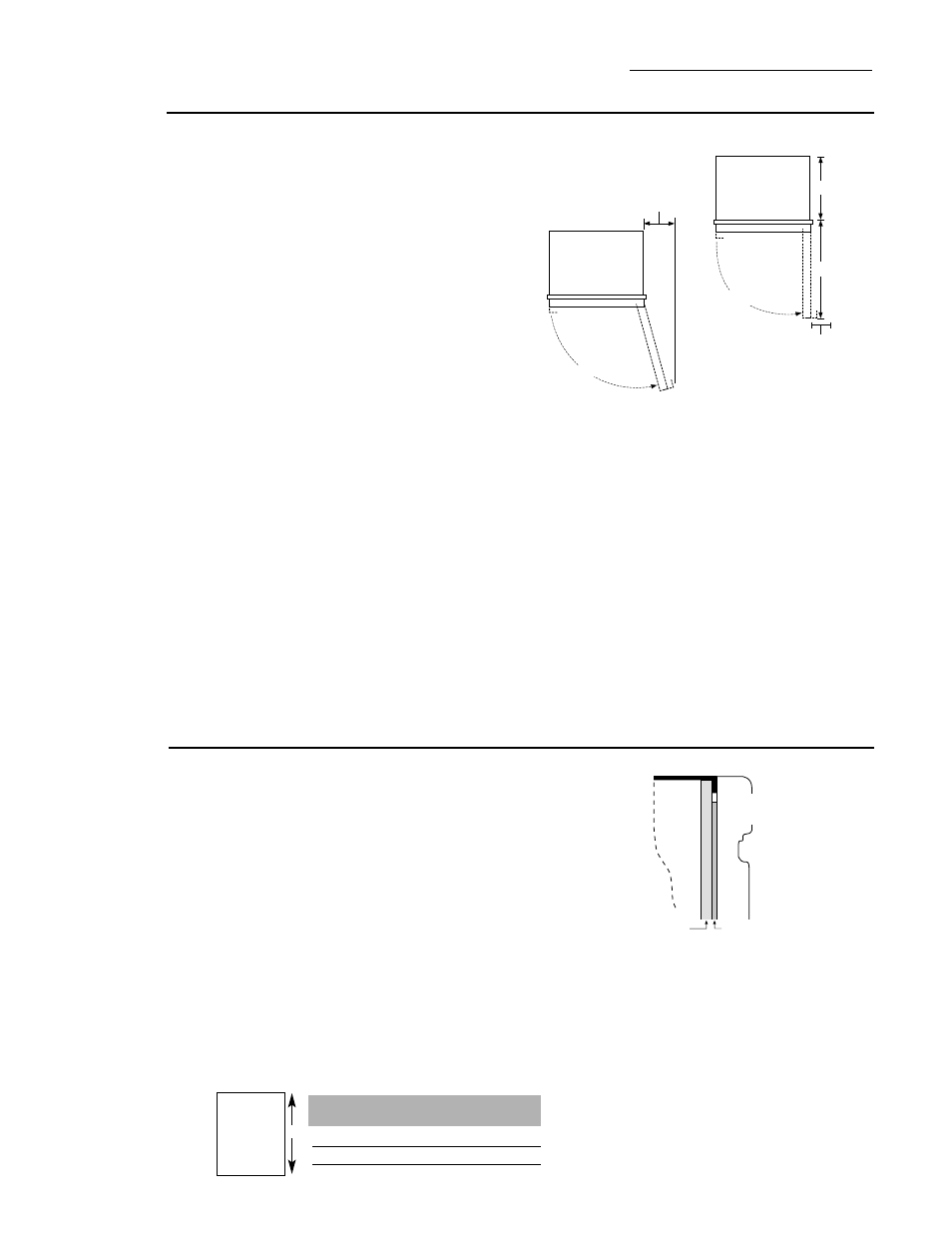

clearances The bar refrigerator with icemaker is factory
set for a 110° door swing.
When installed in a corner:
Check the model number and allow the
appropriate clearance for the 90° door swing
and to allow racks to slide out.
• ZIBS240 – 4
″ minimum to wall.
• ZIBI240 – 4-1/2
″ minimum to wall.
Check the model number and allow the
appropriate clearance for the 110° door
swing.
• ZIBS240 – 14
″ minimum to wall.
• ZIBI240 – 16
″ minimum to wall.
NOTE: Clearances are based on the
recommended 2-1/4
″ handle standoff
depth. Custom handle clearances may vary
depending on the standoff of the custom
handle.
Choose the location:
• These products may be closed in on the
top and three sides as long as the front is
unobstructed for air circulation and
proper access to the door.
• Do not install these products where the
temperature will go below 55°F (13°C)
or above 90°F (32°C).
• Do not install where it will be subject to
direct sunlight, heat or moisture.
Black or Stainless Steel Toekick Options
Your custom panel (ZIBI240 model only) bar
refrigerator with icemaker is shipped with
two toekicks, a stainless steel and a black
toekick. For shipping purposes, one of the
toekicks will be secured to the back or inside
of the unit, and the second will be installed
on the unit. Keep the unused toekick and
other unused or removed parts for possible
future use.
14" Minimum
to Wall
(with Custom Panel
16" Min.)
110
°
110
° Door Swing
21-5/8"
23-5/8"
4" Minimum
to Wall
(with Custom Panel
4-1/2" Min.)
90
°
90
° Door Swing
Built-In Dimensions/Installation
Bar Refrigerator with Icemaker
Installing
custom 3/4
″
door panel
and handle
(ZIBI240 model
only)
3/4
″ Overlay Panel Dimensions
Model ZIBI240 requires a field-installed
overlay door panel.
• The overlay panel must be secured to a
1/4
″ thick backer panel that slides into the
trim. A .10
″ thick spacer panel must be
placed between the overlay and backer
panel.
• A custom handle of your choice, supplied
by your cabinet maker, must be installed
on this overlay panel. Countersink all
screws into the backer panel. Screws
cannot protrude from the backer panel.
NOTE: Maximum total weight for custom
door panel is 25 pounds.
1/4"
Backer
Panel
Door
.10 Inch
Spacer
Overlay
Panel
3/4
″ Overlay Panel Dimensions (in inches)
A (Width) B (Height)
1/4 ″ Backer 23-3/16 ″ 29-9/16 ″
0.10 ″ Spacer 22-1/2″ 29-1/16 ″
3/4 ″ Overlay 23-5/8″ 30 ″
B
