Wall mounting instructions – Gefen GTB-MHDMI1.3-441 User Manual
Page 20
17
WALL MOUNTING INSTRUCTIONS

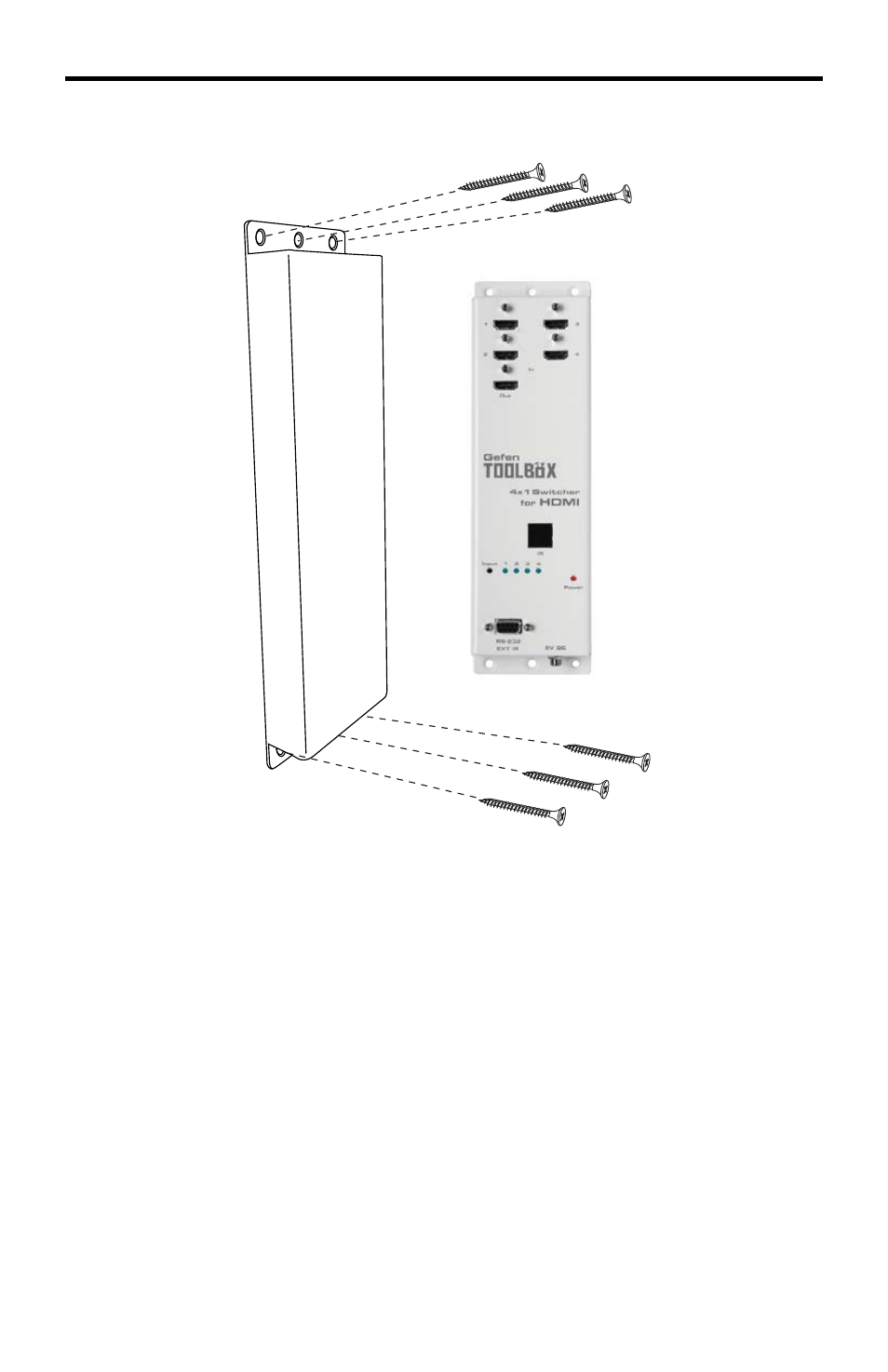

The GefenToolBox 4x1 Switcher for HDMI should be mounted vertically in
a wall or cabinet with wood/drywall screws as shown in the diagram above.
There should be an inch or two of clearance between the edges of the unit and
any walls or vertical surfaces to allow for enough clearance for insertion and
retraction of cables at the HDMI connectors.
For installation on a drywall surface, use a #6 drywall screw. It is recommended
when installing on a drywall surface that studs be used to secure the Switcher
should undue stress be applied when connecting and disconnecting HDMI
cables.
