-18-
G0555LX (Mfg. Since 3/13)

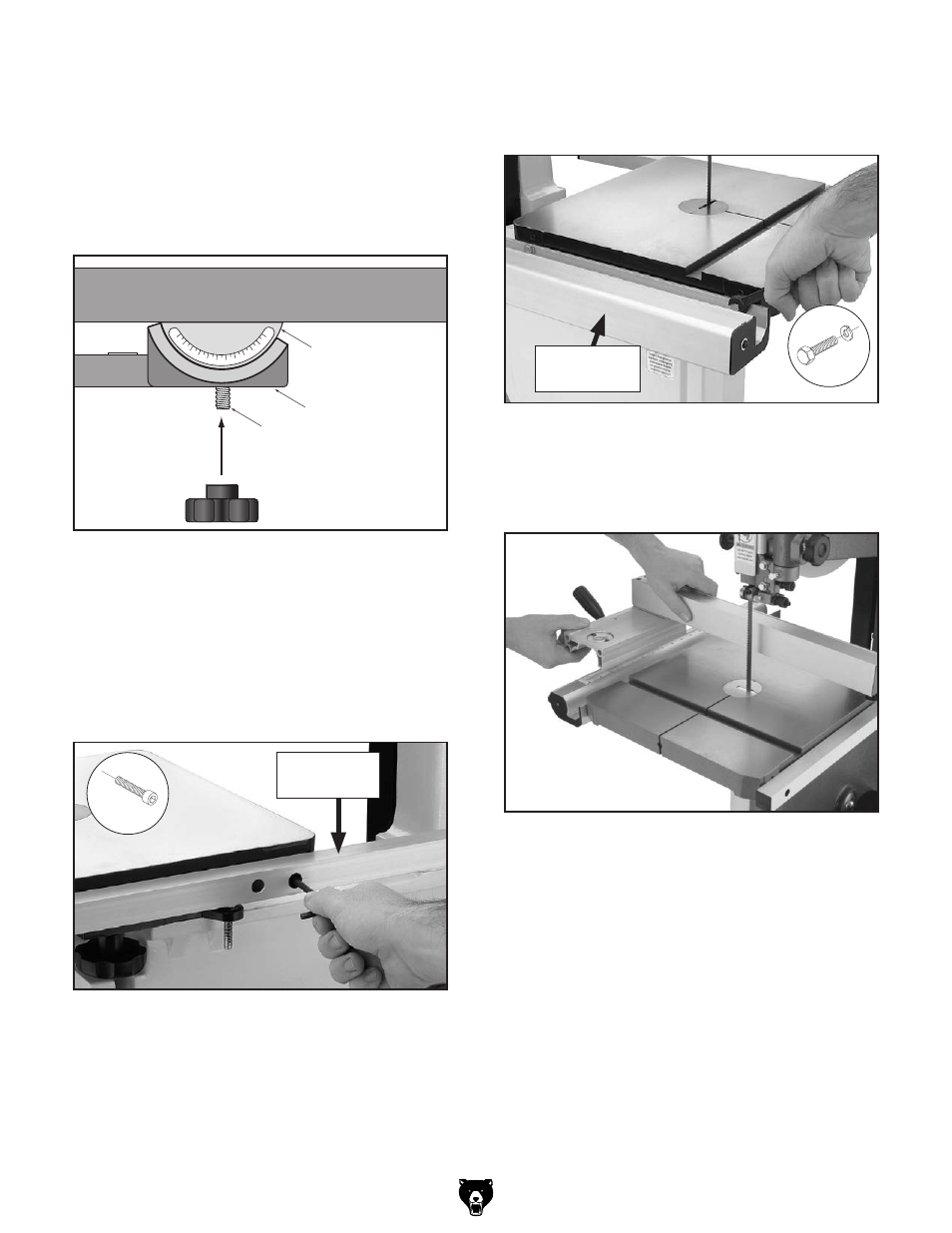

figure 18. installing fence onto rails.
15. pull the fence handle up and place the
fence on the front fence rail, as shown in
figure 18.
10. line up the table slot with the blade, then
position the table so that the blade is in the
center cut-out.
11. rotate the table so that the table slot faces to
the right, then insert the table bolts through
the mounting holes in the trunnion base, as
shown in
figure 15.
12. secure the table by fully threading the two
trunnion lock knobs onto the table bolts.
figure 15. installing the table onto the trunnion
base.
figure 17. installing front fence rail.
Front Fence
rail
14. attach the front fence rail shown in figure 17,
with (2) 1 ⁄
4
"-20 x 3 ⁄
4
" hex bolts and 1 ⁄
4
" flat
washers.
x 2
13. attach the rear fence rail to the rear of the
table with (2) 1/4"-20 x 5 ⁄
8
" cap screws, as
shown in figure 16.
figure 16. installing rear fence rail.
rear Fence
rail
x 2
Table Trunnion
Table
Trunnion Base
Trunnion Bolt
