Graco 3400 - Manual (Page 24)

Complete Sprayers - with RAC X Tip, Gun & Hose
24 310813 Rev C

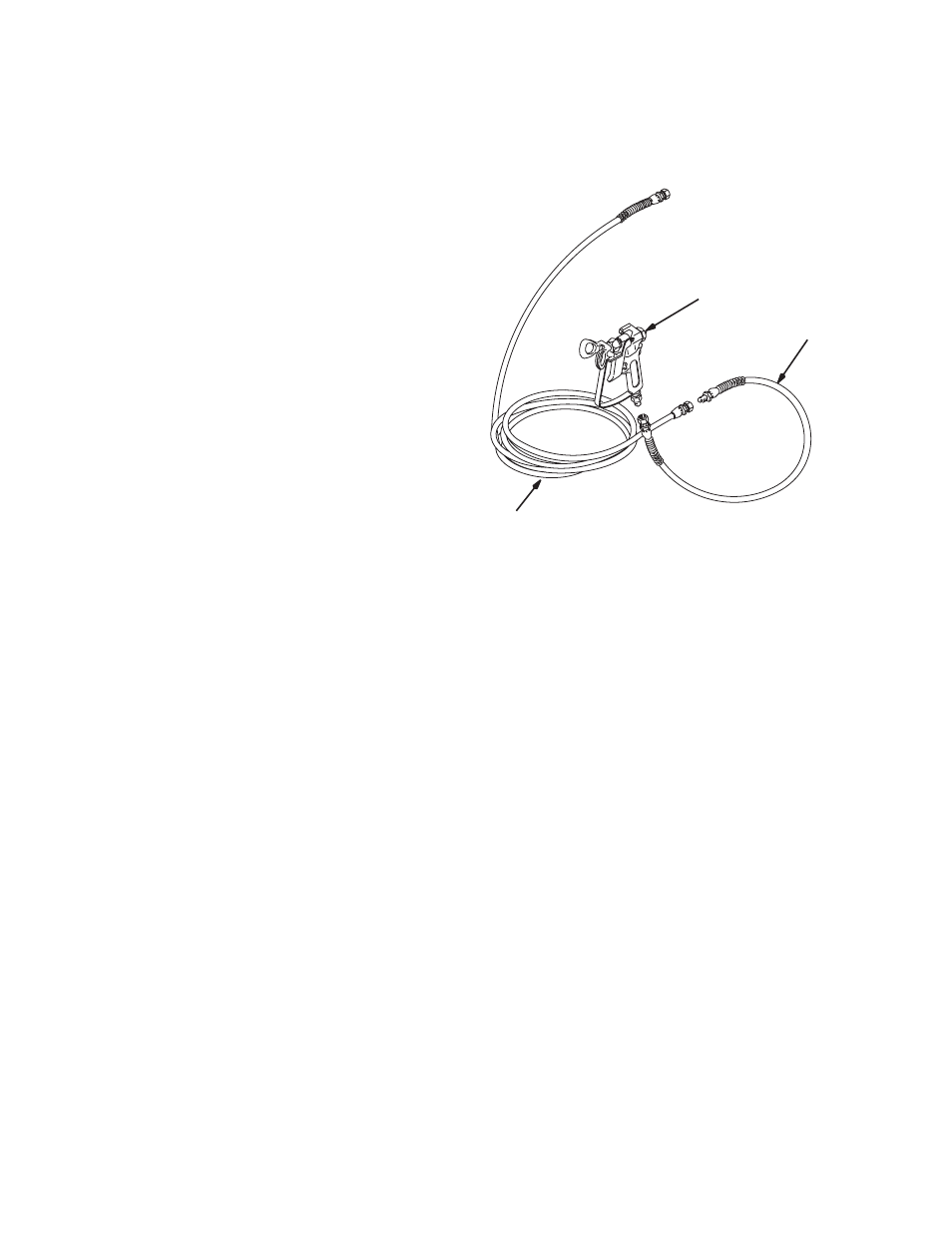

Complete Sprayers - with RAC X Tip, Gun & Hose
Models 248664, 248666
GMAX 3400 Airless Paint Sprayers
Includes items 201 to 204
Ref
No.
Part No. Description Qty
201 248663 Hi-Boy Sprayer 1
See parts list on page 17
248665 Lo-Boy Sprayer 1
See parts list on page 21
202 240794 HOSE, grounded, nylon; 1/4 in. ID; 1
cpld 1/4 npsm(fbe); 50 ft (15 m);
spring guards both ends
3300 psi (227 bar, 27.7 MPa)
203 238358 HOSE, grounded, nylon; 3/16 in.
ID;
cpld 1/4 npsm(m) x 1/4 npsm(f)
swivel;
3 ft (0.9 m); spring guards both
ends
1
204 246220 CONTRACTOR II SPRAY GUN
Includes RAC X 517-size SwitchTip
and HandTite Guard
See 309639 for parts
1
