Grizzly G4030 - Manual (Page 18)

-16- G4030 6 1 ⁄
2
" x 10" Metal-Cutting Bandsaw

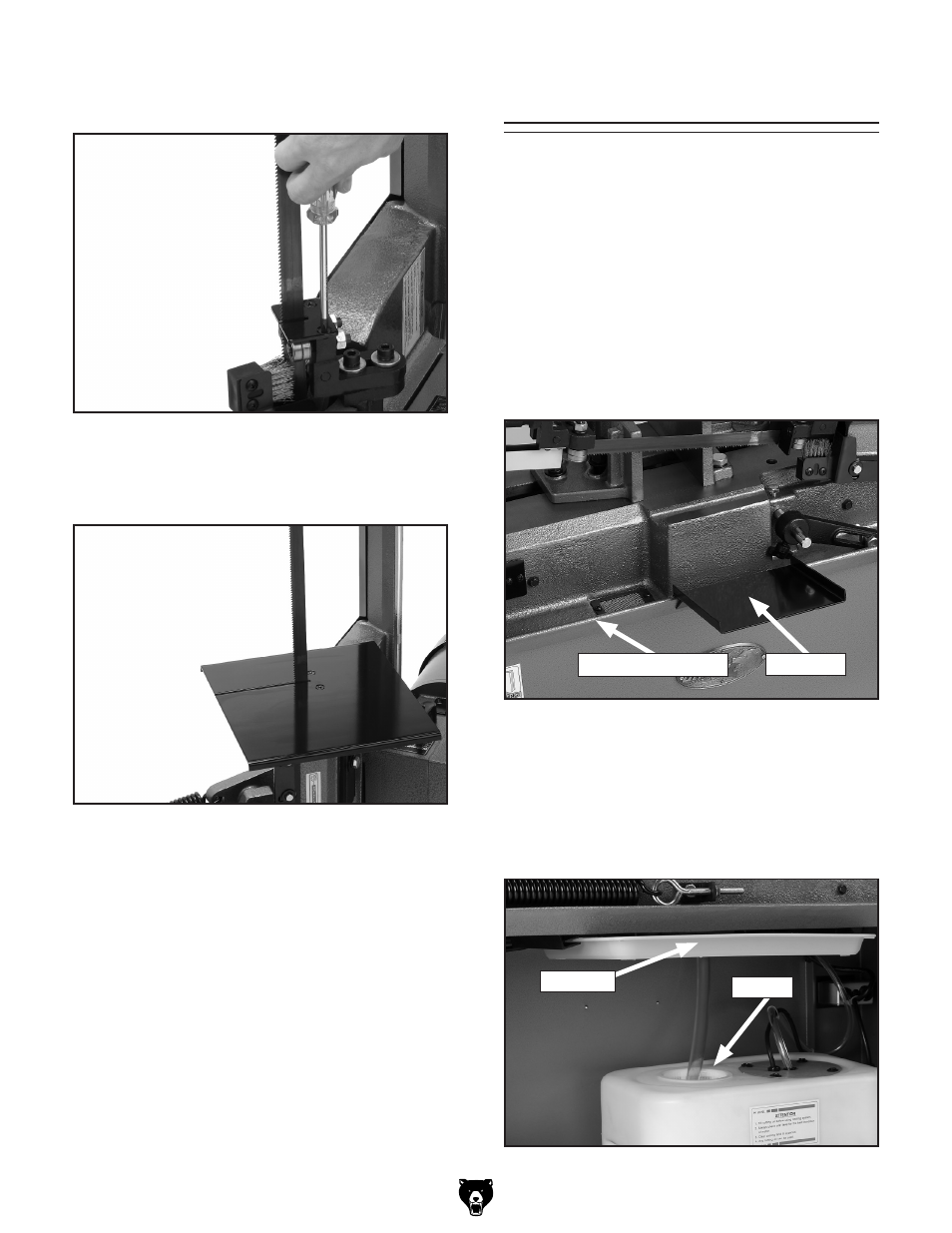

Figure 9. Removing blade guide cover.
4. Install the table (Figure 10) with the two
screws removed in Step 3.
3. Remove the blade guide cover as shown in
Figure 9.
Figure 10. Table installed.
Chip Tray & Drip Pan
The chip tray and drip pan are designed to catch
chips, coolant over-spray, and cut-offs during
operation.
Components and Hardware Needed: Qty
Chip Tray ............................................................1
Drip Pan .............................................................1
To install the chip tray:
1. Position the chip tray brackets over the cool-
ant basin lip as shown in Figure 11.
Figure 11. Chip tray installed.
Chip Tray
Figure 12. Drip pan installed.
Drip Pan
To install the drip pan:
1. Slide the drip pan between the brackets as
shown in Figure 12 and make sure the hole
in the pan is positioned directly above the
coolant tank filter.
Filter
Coolant Basin Lip
