GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide
www.gwfs.com, 877-951-9800, [email protected] help line: 877-951-9814 page 13

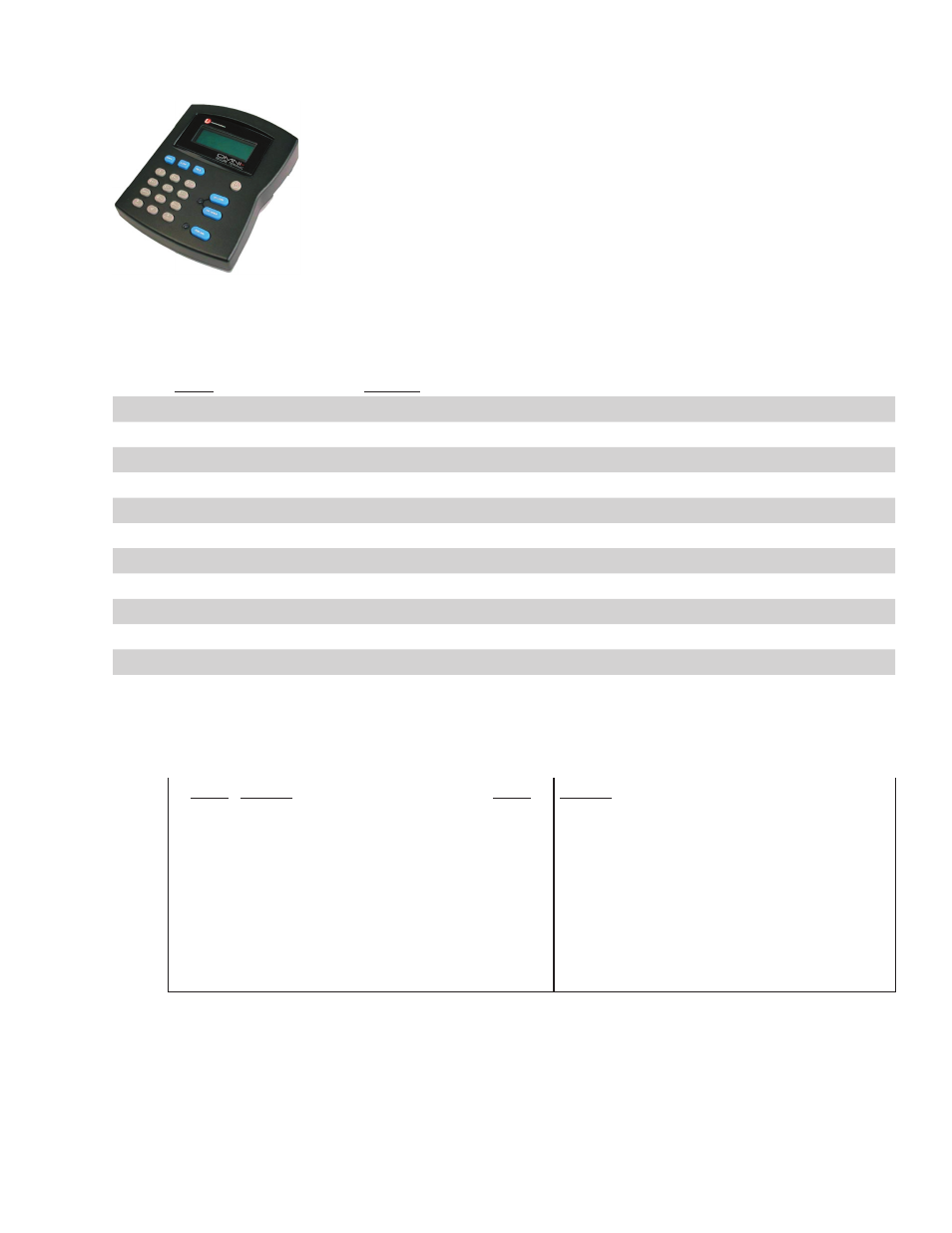

2.6.2 L-3 OMNI / OMNIxi
Objective: To set the Secure Data mode to PSTN, Async, 9600 bps.
Apply power to the omni and login as an Authorized User or Terminal Administrator ...
Press Display
(logon) LOGON SUCCESSFUL
ENTER
MENU
/ 0-EXIT TA MODE / 1-ZEROIZE
2, ENTER / 1-TERM CONTROL / 2-SET NETWORK
2, ENTER (Example) NET: PSTN-SYNC / 1-PSTN ASYNC / 2-PSTN-SYNC
1 NET: PSTN-ASYNC
ENTER
BACK
/ 1-TERM CONTROL / 2-SET NETWORK
6, ENTER (Example) Async 19200 bps
3, ENTER Async 9600 bps
MENU (to exit)
If your OMNI / 90si does not work after you make the above changes, confirm the following setting. To view
these settings press the Menu button followed by each individual code digit followed by Enter. For example, 2,1
would be Menu, 2, Enter, 1, Enter to view the Term Control setting.
Code Setting Code Setting
2,1 Term Control = Local 2,14 Signaling = STANDARD
2,2 Set Network = PSTN ASYNC 3,1 SEC Settings/Secure Mode = Traditional
2,4 Set LCL Port = EIA232 3,2,1 SEC/SACS Voice/Secure Voice = ENBL
2,6 Set Rate = ASYNC 9.6 kbps 3,2,4 SEC/SACS Voice/ACL SEC Voice = DSBL
2,7,1-4 CLK Polarity = (set all to Normal) 3,3,1 SEC/SACS Data/Secure Data = ENBL
2,12 DTE TX CLK = OMNI 3,3,4 SEC/SACS Data/ACL SEC Data = DSBL
2,13 RESYNC INTRVL = DSBL
Required L-3 provided LDI Red Data Cable: Each OMNI ships with a Local Data Cable, L-3 part number
K10048260-4. One end of this cable terminates in a DB25 connector (into which the 90si plugs), the other con-
nects to the "Local Data" connector on the back of the OMNI/OMNIxi.
