-16- G8793 12" Double Disc Sander
Dust Ports
The dust port mounts beneath the table, with the
port directed downward, and is attached with four
(4) Phillips
® head screws. See Figure 12.
Attaching Disc Guard
Place the disc guard over the disc and use two
Phillips
® head screws to hold in place. See Figure 11.

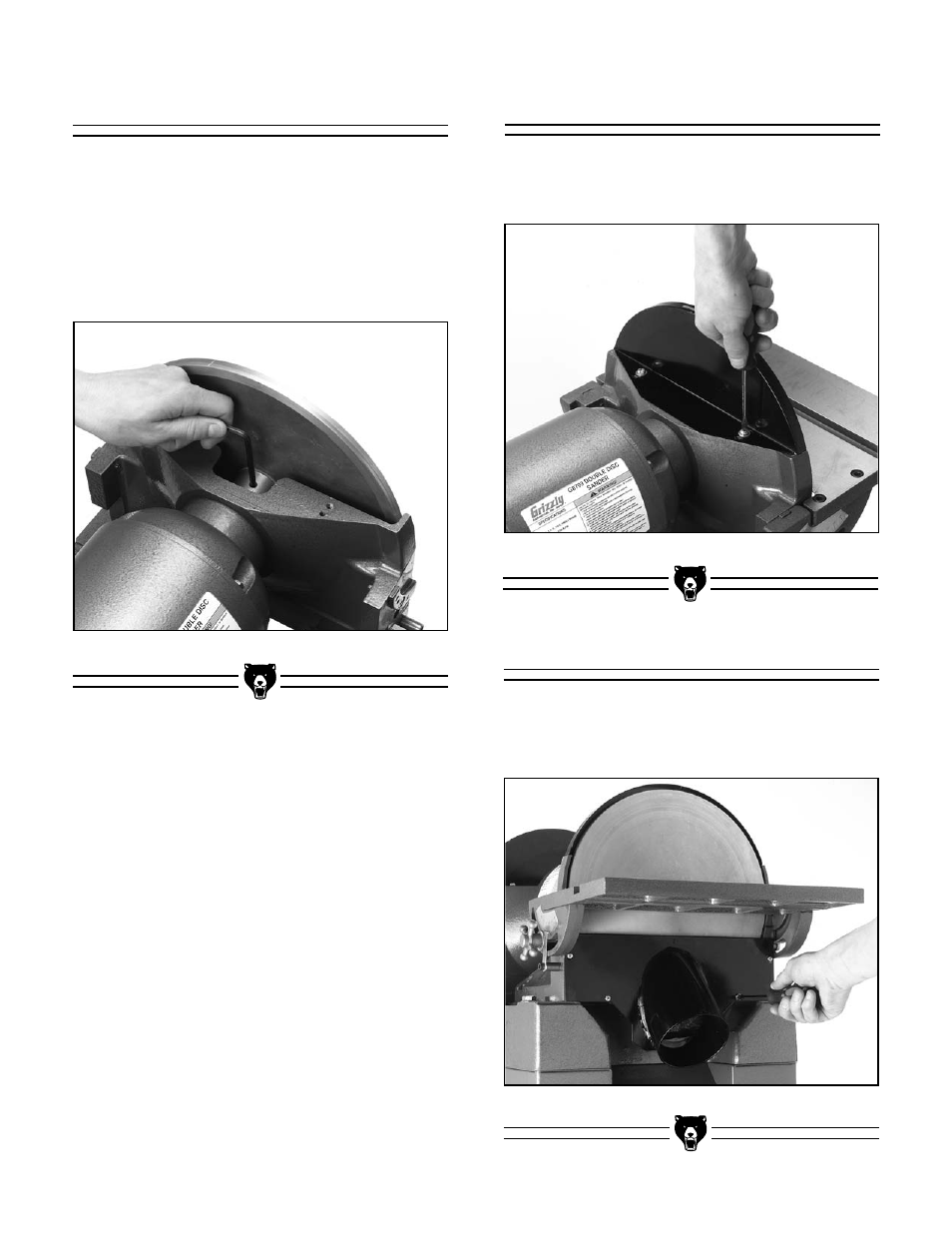

Figure 12. Attaching dust port.
Figure 11. Attaching disc guard.
Attaching Disc
The sanding discs attach to the motor shaft by
means of a keyed shaft. Make sure the key is in
place in the groove of the shaft, then slide the
disc onto the shaft with the slot in the disc bore
aligned with the key. Push the disc onto the shaft
until it bottoms out, then tighten the two set
screws.
See Figure 10.
Figure 10. Attaching disc.
