Page 10
1
2
3
5
6
7
4
8

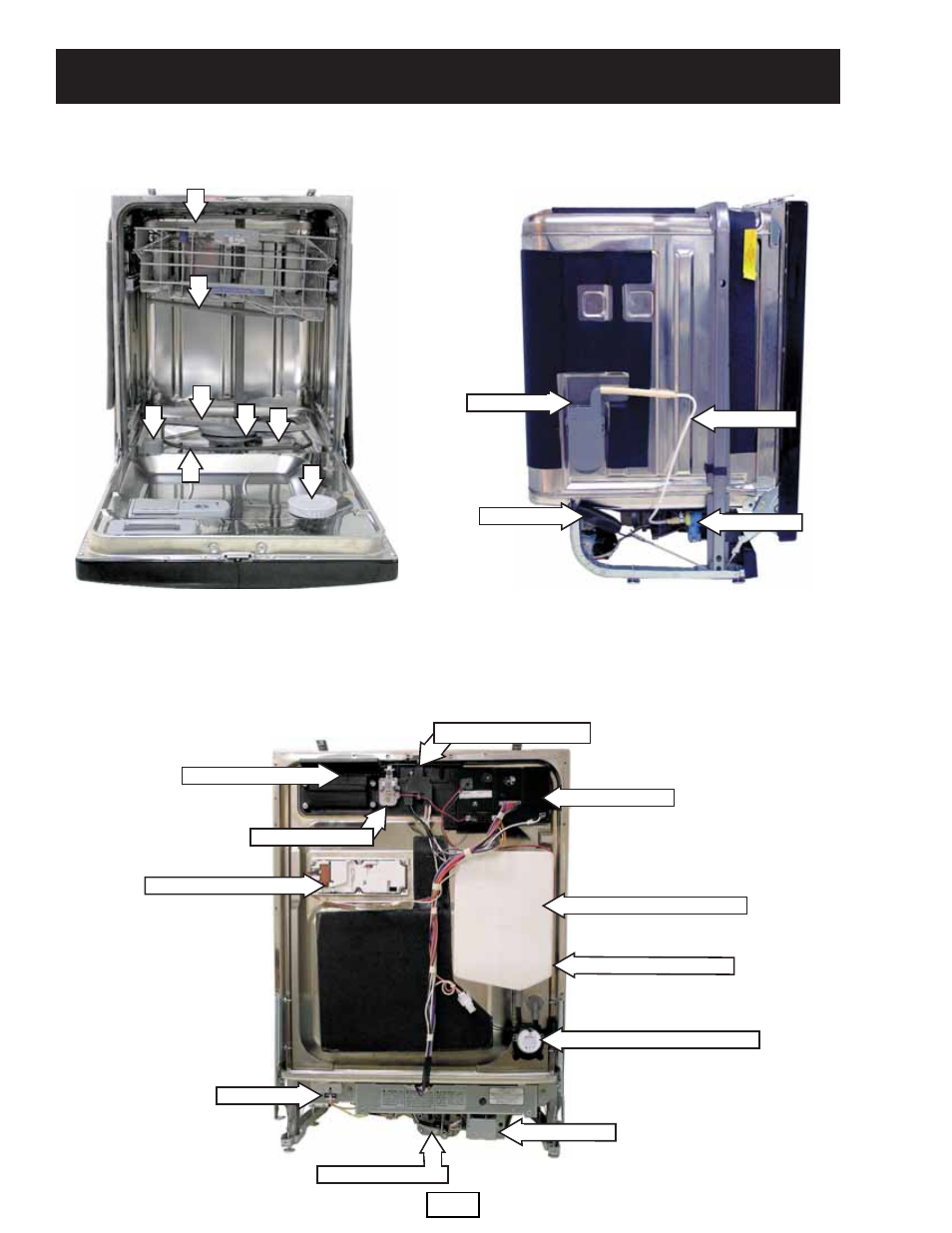

Component Locator Views
Door View
(Door Panel and Eschtcheon Keypad
Assembly Removed
)
Inside Cabinet View
1 - Upper Spray Arm, 2 - Middle Spray Arm , 3 - Lower Spray Arm, 4 - Hub,
5 - Filter Screen, 6 - Heating Element, 7 - Float, 8 - Smart Dispense Cap
Left Side View
Fill Funnel
Water Valve
Fill Hose
Door Spring
PDW8900 Series Shown
PDW8900 Series Shown
Detergent Rinse Module
Flood Switch
Junction Box
Flapper (Active Vent)
Control Module
Positive Displacement Pump
SmartDispense
TM
Reservoir
Liquid Level Sensor
Door Interlock Switch
Circulation Pump
Active Vent Motor
