Parts breakdown h7667 – Grizzly H7666/H7667 User Manual
Page 21
Model H7666/H7667 LVLP Spray Gun
-21
-

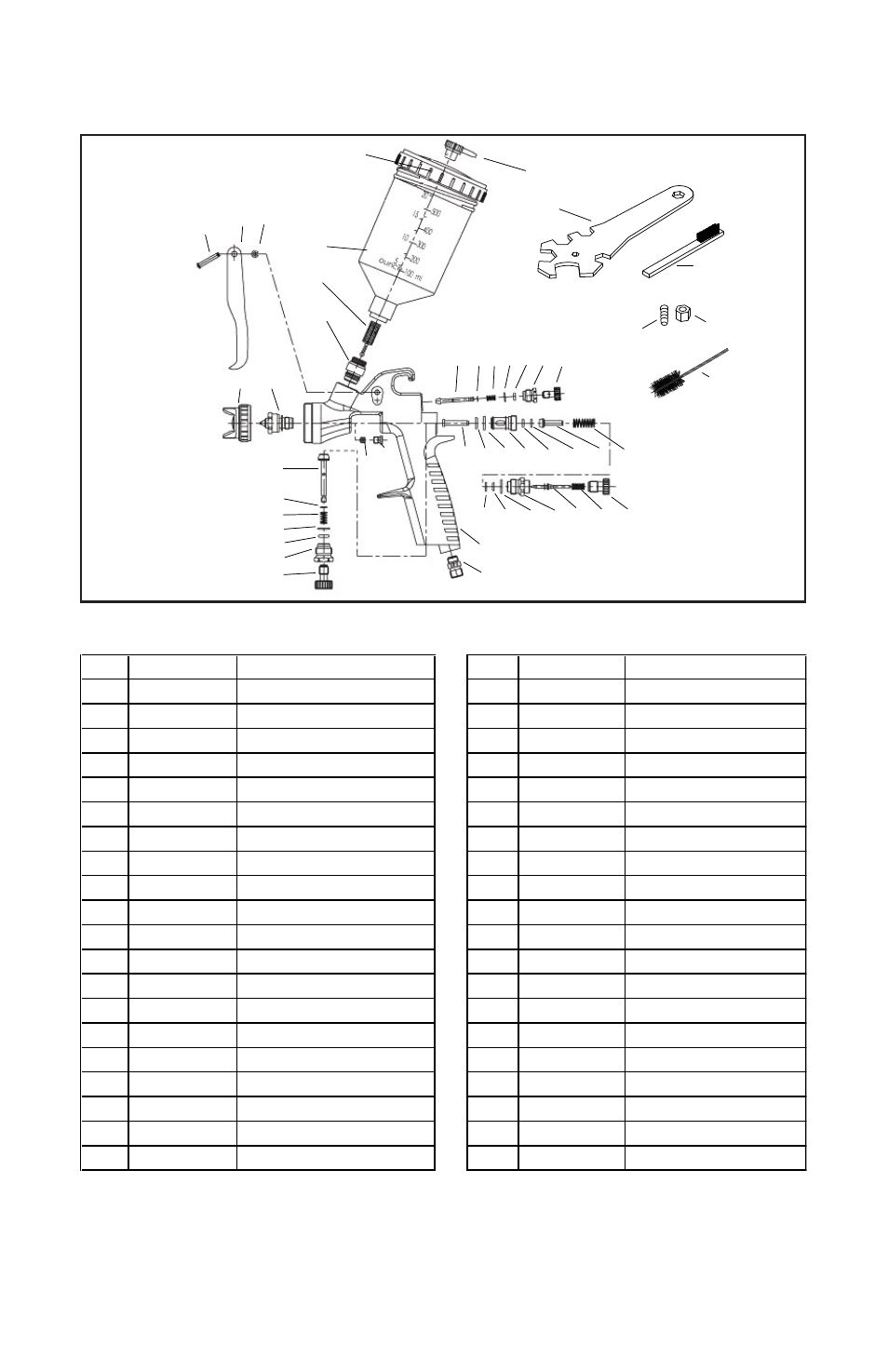

Parts Breakdown H7667
��
�� ��
��
��
��
��
��
��
��
��
��
��
�� ��
��
��
�
�
�� �� �� �� �� ��
�
��
��
�
�
�
�
�
�
��
��
�� �� ���� �� ��
� � � � � �
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
PH7667001 ADJ. SCREW
22
PH7667022 O-RING
2
PH7667002 ADJ. KNOB
23
PH7667023 SPRING
3
PH7667003 O-RING
24
PH7667024 SWITCH SPRING
4
PH7667004 SPECIAL WASHER
25
PH7667025 INLET VALVE
5
PH7667005 AIR VALVE SPRING
26
PH7667026 FLUID INLET JOINT
6
PH7667006 SPECIAL WASHER
27
PH7667027 FILTER
7
PH7667007 INLET VALVE
28
PH7667028 CUP
8
PH7667008 AIR INLET
29
PH7667029 CUP LID
9
PH7667009 GUN BODY
30
PH7667030 VENTILATOR HEAD
10
PH7667010 SPECIAL WASHER
31
PH7667031 SPECIAL WASHER
11
PH7667011 O-RING
32
PH7667032 TRIGGER
12
PH7667012 O-RING
33
PH7667033 TRIGGER LEVER
13
PH7667013 NEEDLE KNOB
34
PH7667034 FLUID NOZZLE
14
PH7667014 NEEDLE SCREW
35
PH7667035 AIR CAP
15
PH7667015 NEEDLE SPRING
36
PH7667036 SEAL WASHER
16
PH7667016 NEEDLE ADJ. SCREW
37
PH7667037 DIRECTION SCREW
17
PH7667017 SWITCH POLE
38
PH7666038 SERVICE WRENCH
18
PH7667018 O-RING
39
PH7666039 CLEANING BRUSH
19
PH7667019 O-RING
40
PH7666040 LARGE BRUSH
20
PH7667020 NEEDLE SLEEVE
41
PH7667042 HOSE FITTING
21
PH7667021 O-RING
42
PH7667043 LOCK NUT
