IPS42 Internal Power Supply Installation and User Guide (11/09)
18
www GarrettCom com . .

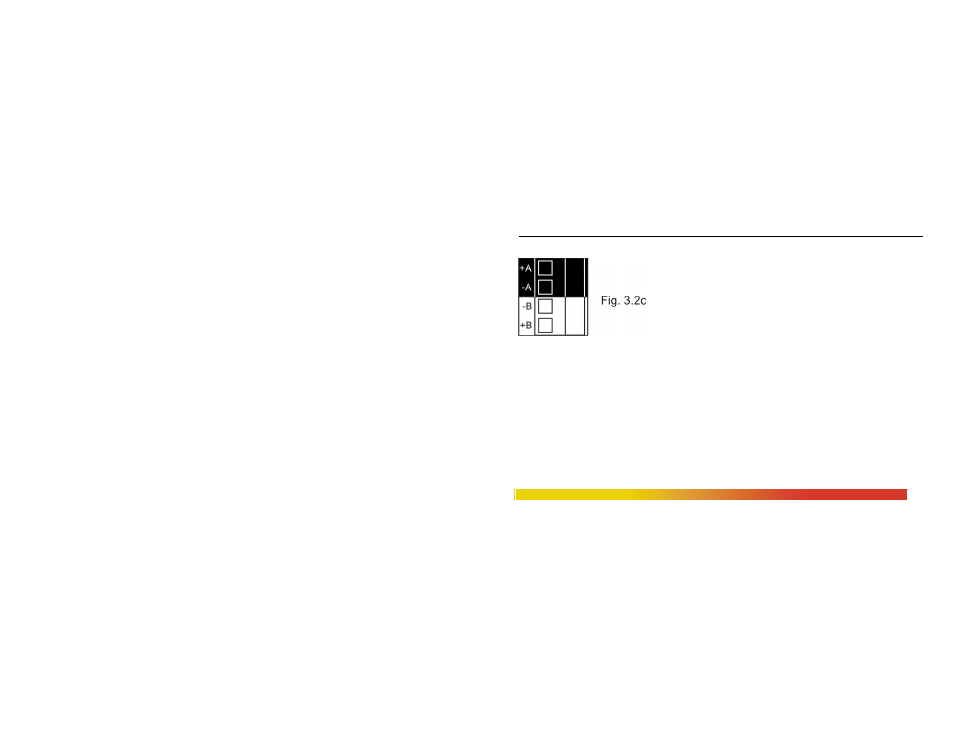

For Dual Source models, positions A and B will be used.
For Single Source models, only position A will be used.
NOTE: None of the conductor can be exposed after
secured in the terminal block.
c. Install the protective bushings and secure to the power cord cover.
d. Secure the assembled terminal block to the mating piece of the unit.
(see Fig. 3.2d)
e. Secure the assembled power cord cover to the IPS42 case. (see Fig. 3.2e)
f. Attach a Safety Ground to the Grounding post of the IPS42 case. (see Fig. 3.2a)
