IPS42 Internal Power Supply
Installation and User Guide (11/09)
16
www GarrettCom com
.
.
3.2 Power Cord Installation
For IPS42-DC w/Dual Source and AC/DC models that do not have the power
cord installed at the factory, follow the procedures as described below. For detailed
technical specifications, refer to Section 1.1 of
this User Guide.
The IPS42 Internal Power Supply provides
reliable operation, withstands higher temperature
environments, and provides the power choices to
the user to deploy in uncontrolled temperature
environments.

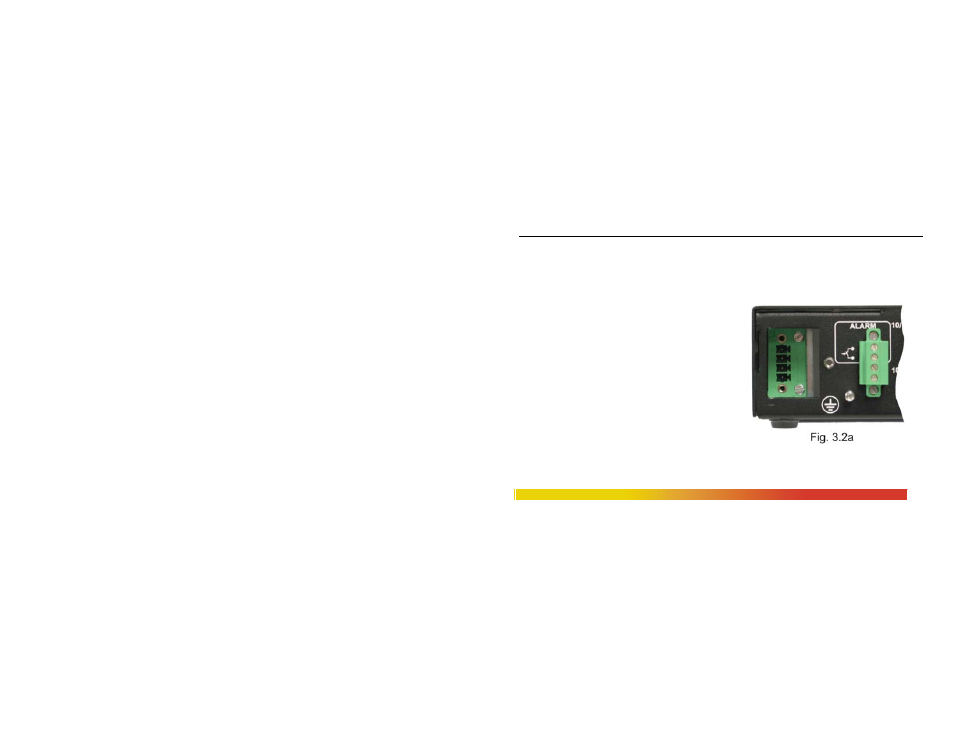

The units are provided with a 4-position screw-
lock terminal block for installing the power cord.
(shown in fig. 3.2a)
