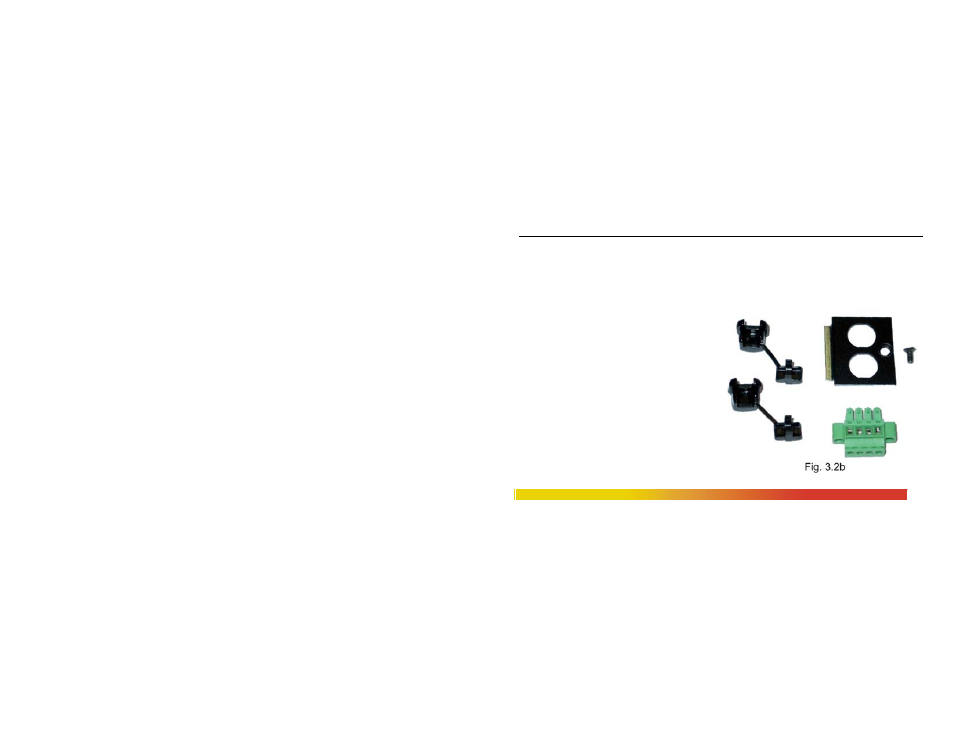

Use the Power Cord installation kit (items for Dual Source shown in Fig. 3.2b) to connect
the power cord to the unit.
Note: For Single Source models, the kit will include a single opening power cord cover and
one protective bushing.
a. Slide the power cord cover
(pictured in Fig. 3.2b) over the
cordage to be used.
Note: The 4-position terminal block
accepts 28-16 AWG wire.
b. Strip the wire ends of the power
cord and place into the appropriate
hole in the terminal block (see Fig.
3.2c). Tighten the locking screws to
secure.
