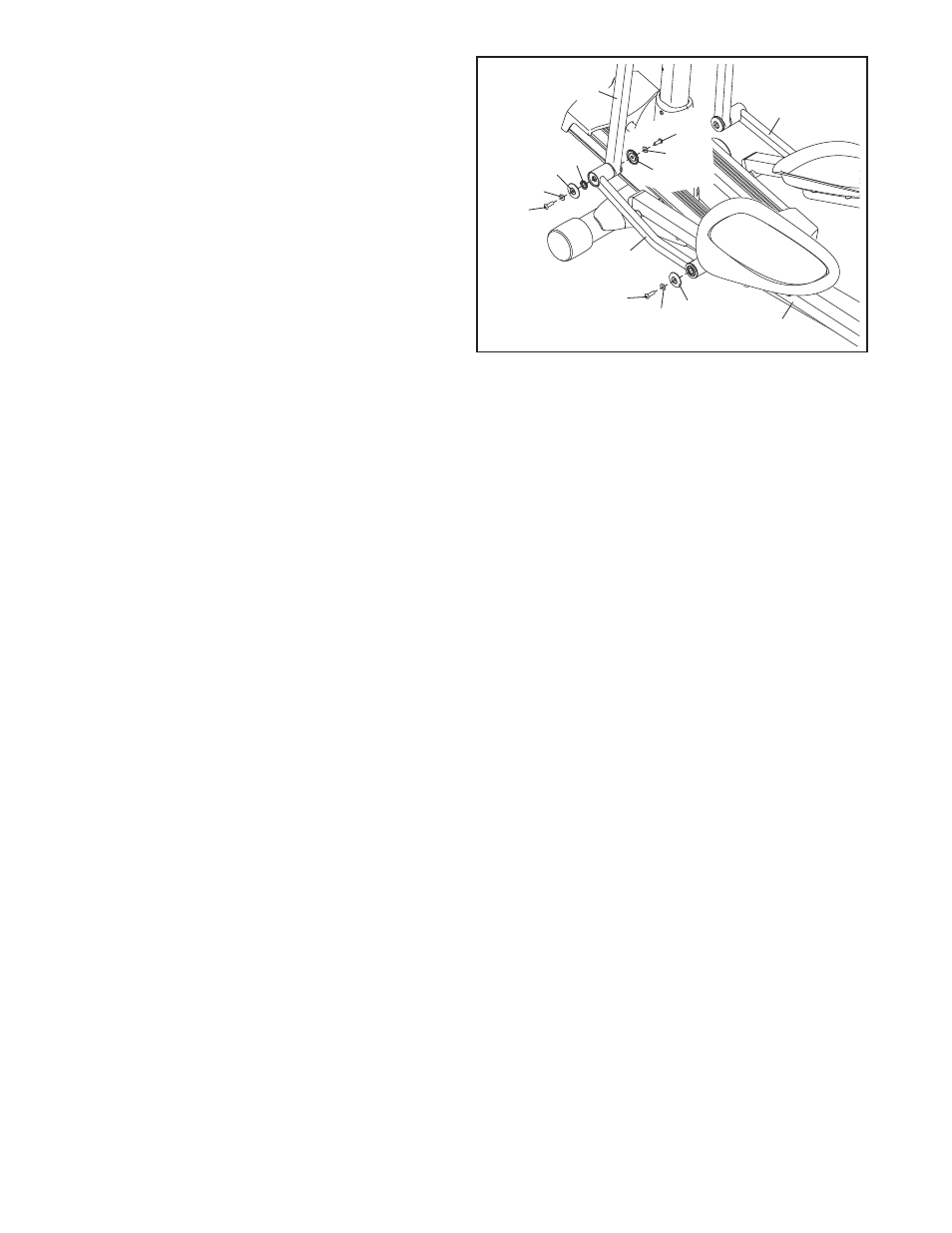

10. Attach the Left Link Arm (30) to the Left Pedal
Arm (32) with an M8 x 15mm Patch Screw
(106), an M8.5 x 16mm x 1.5mm Washer (103),
and an Axle Cover (66).
Attach the Left Link Arm (30) to the left Upper
Body Leg (24) with an M8 x 25mm Patch Screw
(110), two M8.5 x 16mm x 1.5mm Washers
(103), two Axle Covers (66), a Link Arm Spacer
(74), and an M8 x 15mm Patch Screw (106) as
shown.
Attach the Right Link Arm (31) in the same
way.
10
66 74
103
110
66
32
30
31
103
106
24
66
103
106
11. Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: After
assembly is completed, some extra parts may be left over. Place a mat beneath the elliptical exerciser to
protect the floor.
Plug the power adapter into the jack on the frame of the elliptical exerciser (see HOW TO PLUG IN THE
POWER ADAPTER on page 12). IMPORTANT: If the elliptical exerciser has been exposed to cold tem-
peratures, allow it to warm to room temperature before plugging in the power cord. If you do not do
this, the console displays or other electronic components may become damaged.
