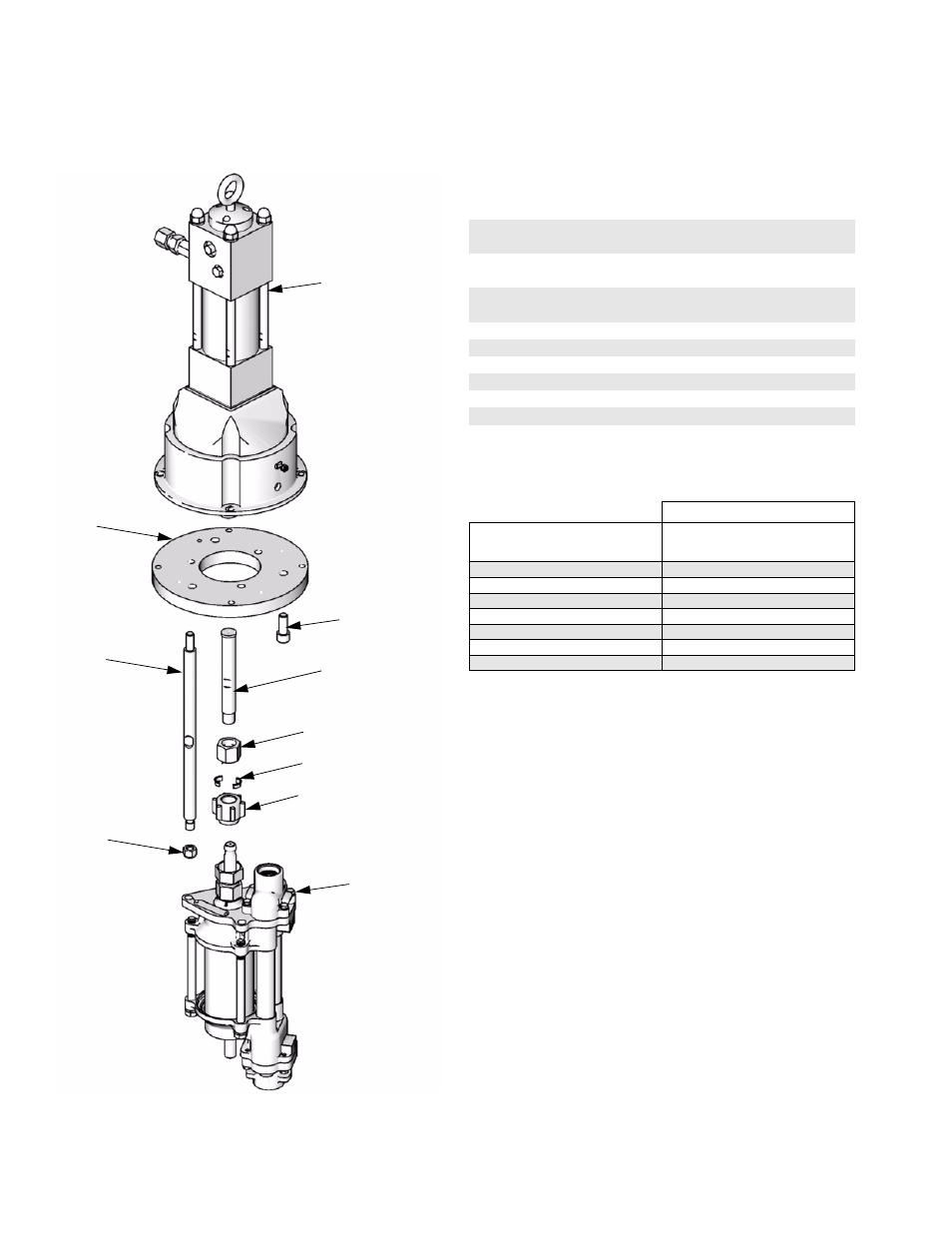

Parts
22 311211L
Viscount II 460 Pumps
Common Parts
Parts That Vary by Model
103
TI10467a
106
108
105
104
110
109
101
102
103
111
Ref.
No. Description
Part No. Qty.
101 MOTOR, Viscount II, see manual
308048
223646 1
102 LOWER, High-Flo, see manual 311690 see table,
below
1
103 TIE ROD, 14.25 in. (362 mm) between
shoulders
15G924 3
104 NUT, lock, hex; 9/16-12 unc 108683 3
105 NUT, coupling 184059 1
106 COLLAR, coupling 184128 2
108 ADAPTER, coupling 15K736 1
109 SCREW, cap, socket hd C19789 3
110 NUT, coupling 183079 1
111 BRACKET, mounting 120558 1
102
Hydraulic-Powered Pump
(see page 3)
High-Flo Lower
(see manual 311690)
247355 253035
247356 253063
247357 253086
247358 253396
247359 253522
247360 253525
247361 253570
