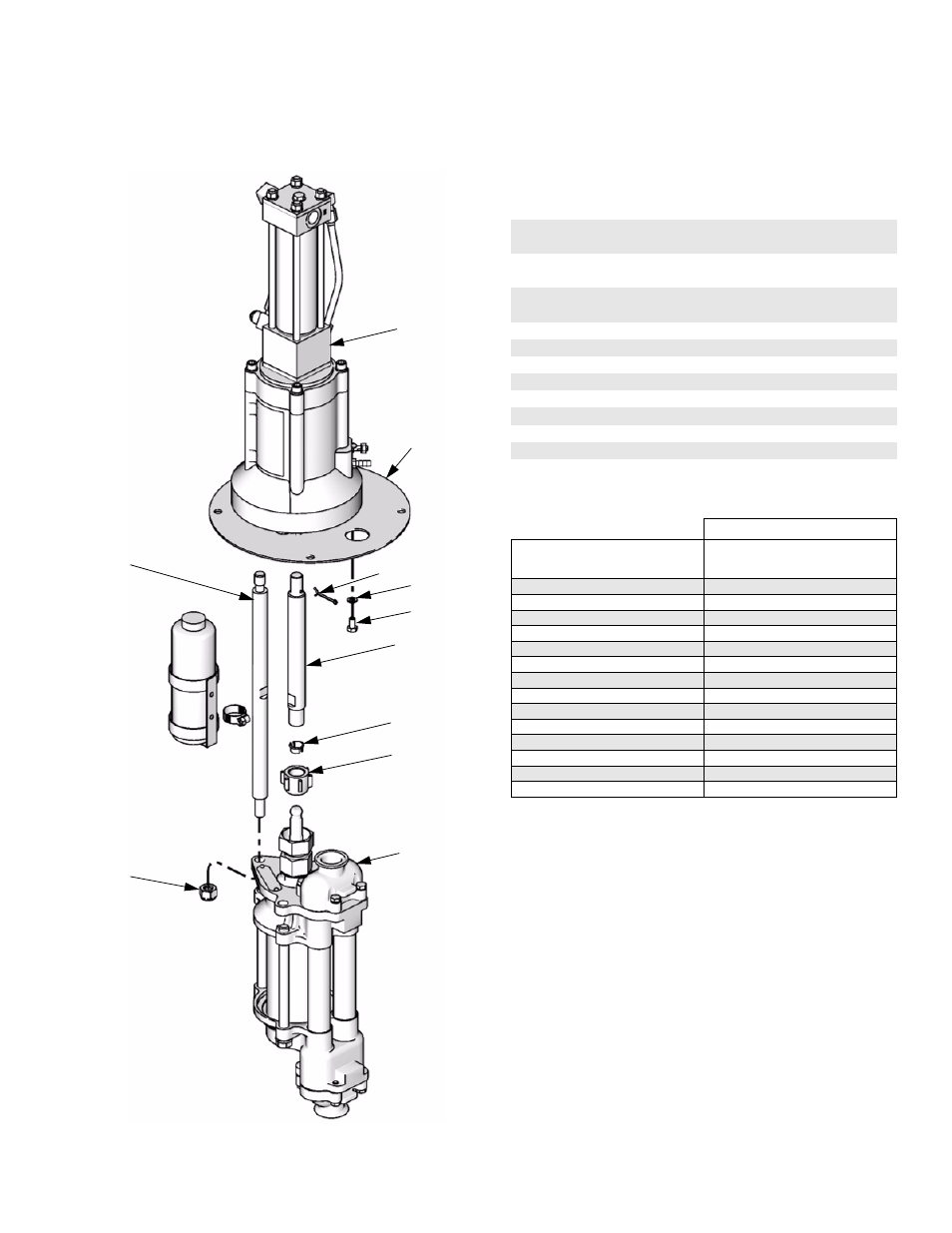

Parts
311211L 21
Viscount I Plus Pumps
Common Parts
Parts That Vary by Model
101
102
103
104
TI7674b
107
106
108
105
109
110
111
Ref.
No. Description
Part No. Qty.
101 MOTOR, Viscount 1+, see manual
308330
261466 1
102 LOWER, High-Flo, see manual 311690 see table,
below
1
103 TIE ROD, 14.25 in. (362 mm) between
shoulders
15G924 3
104 NUT, lock, hex; 9/16-12 unc 108683 3
105 NUT, coupling 184059 1
106 COLLAR, coupling 184128 2
107 PIN, cotter 100103 1
108 ADAPTER, coupling 15H838 1
109 SCREW, cap 100001 4
110 WASHER, lock 100214 4
111 PLATE, adapter 189206 1
102
Hydraulic-Powered Pump
(see page 3)
High-Flo Lower
(see manual 311690)
253642 253033
253643 253034
253644 253568
253645 253569
253646 253061
253647 253062
253648 253423
253649 253085
253650 253398
253651 253397
253652 253520
253653 253521
253654 253523
253655 253524
