1. Installation
PNEG-301 Two-Ring Door 9
Door Hinge Installation Instructions

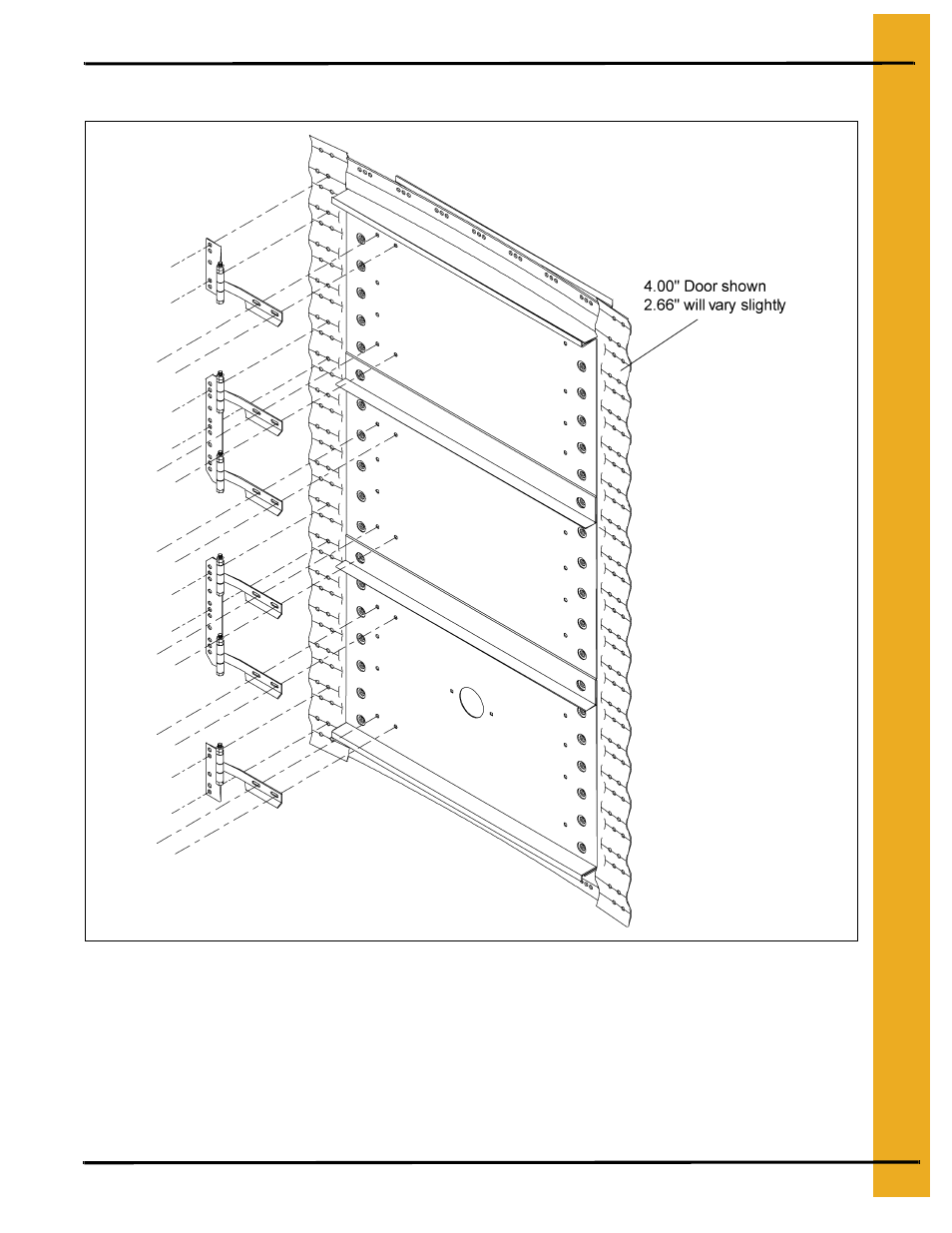

Figure 1E
Viewed from the Inside of the Bin
During door frame and inner panel installation, install hinges in position as shown. (NOTE: Head of bolt
with neoprene washer to be on the outside of the bin.) Attach hinge frame half using only existing frame
to sidewall bolts. All frame to sidewall bolts must be installed.
