- 26 - GV-R487D5-1GD Graphics Accelerator

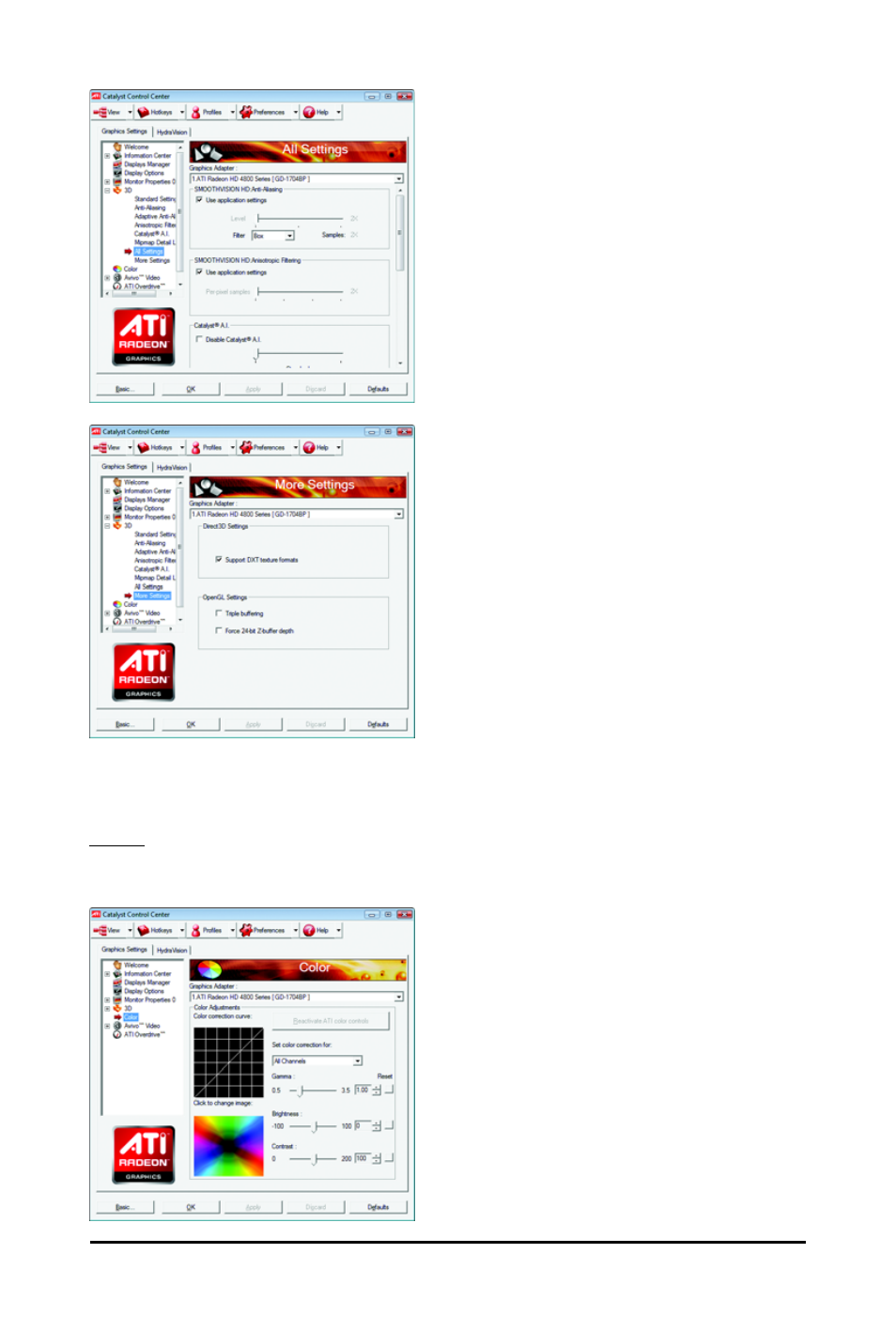

„ All Settings
The All Settings page combines all of the princi-
pal 3D features onto a single page, without any
preview window, allowing for quick access and
adjustment. This page is useful when it is not
necessary to preview the adjusted settings be-
cause the effect is already known or understood.
„ More Settings
Use the More Settings dialog to select settings for the
Direct 3D and OpenGL Application Programmable
Interfaces (API). These settings are provided for re-
solving certain incompatibilities within 3D applica-
tions that use one of these APIs. Use this dialog when
you know which type of API (Direct 3D or OpenGL
your 3D application uses, and you want to select a
particular API-specific feature. If you are not sure
which API your 3D application uses, consult the docu-
mentation of your 3D application.
Note:
The Alternate Pixel center Direct 3D setting is not
supported on systems running Windows Vista. This
setting corrected a corruption problem that occurred
with some older games that should not occur with
modern games.
Color:
Adjust the overall richness of color by using the Gamma control. To adjust the overall brightness use
the Brightness control, and the overall contrast use the Contrast control.
