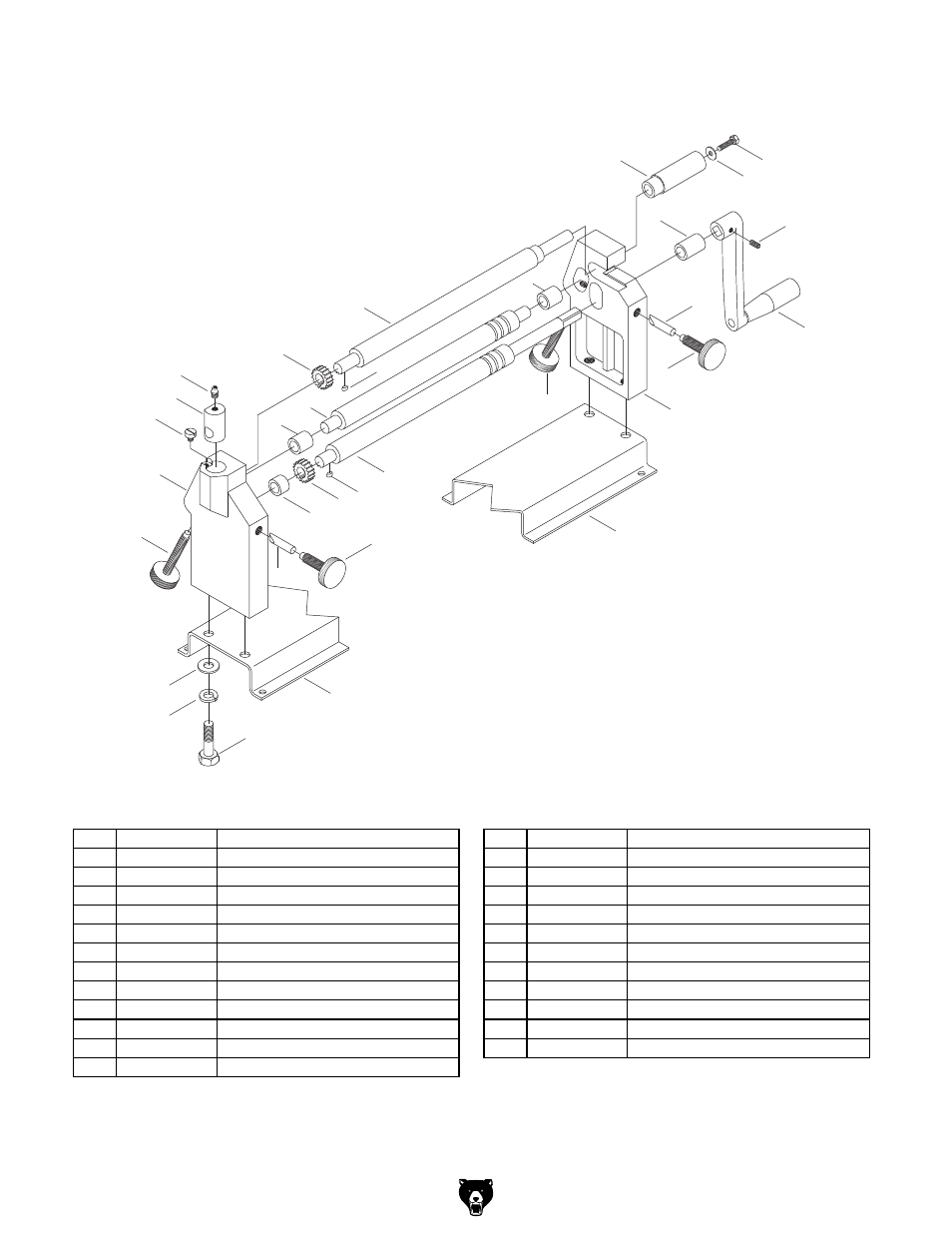

T21323 Parts Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT21323001 ADJUSTMENT SCREW 15 PT21323015 BUSHING
2 PT21323002 GREASE CUP 16 PT21323016 GEAR
3 PT21323003 ROTATING SUPPORT 17 PT21323017 FIXED SHAFT
4 PT21323004 ADJUSTMENT KNOB 18 PT21323018 FRONT MOVABLE SHAFT
5 PT21323005 LEFT STAND 19 PT21323019 HANDLE ASSEMBLY
6 PT21323006 BUSHING 23 PT21323023 PIN
7 PK29M KEY 4 X 4 X 8 24 PT21323024 ADJUSTMENT KNOB
8 PT21323008 REAR MOVABLE SHAFT 25 PT21323025 BASE
9 PT21323009 HANDLE SHAFT 26 PW04M FLAT WASHER 10MM
10 PT21323010 RIGHT STAND 27 PLW06M LOCK WASHER 10MM
11 PT21323011 RELEASE ROD 28 PB48M HEX BOLT M10-1.25 X 20
12 PW03M FLAT WASHER 6MM 29 PSS02M SET SCREW M6-1 X 6
14 PSB01M CAP SCREW M6-1 X 16
