Reversing the Door Swing
Beverage Center
To reverse
the door
1. Remove the top hinge pin using a 1/8 ″
Allen wrench.
2. Lift the door off the bottom hinge.
3. Replace the hinge pin in the top hinge.
4. Switch the top and bottom hinges and
move them to the other side. If shims
are behind the hinges, move them with

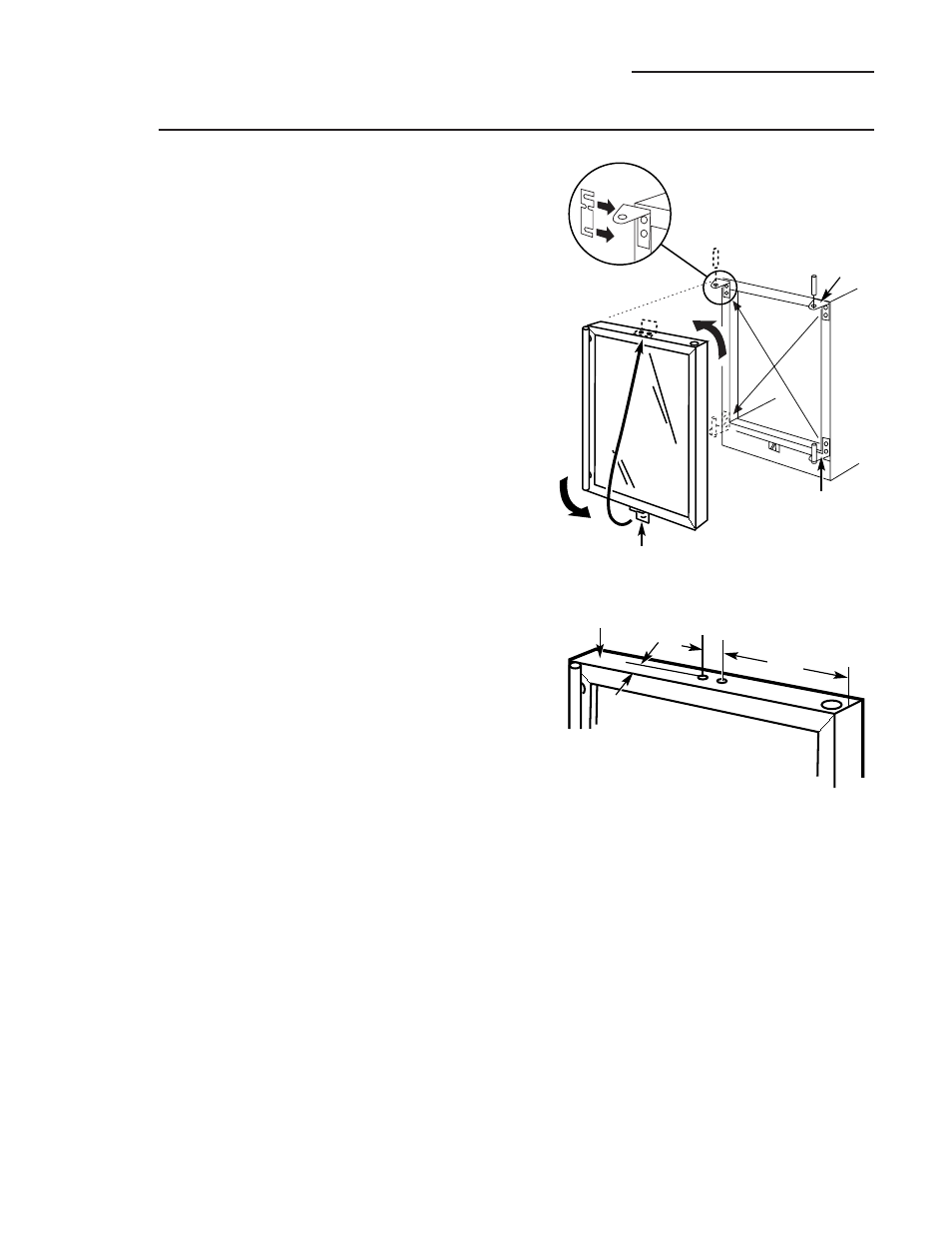

the hinges. See illustration.
5. Insert the plug buttons into the old
hinge holes.
6. Unscrew the light trigger from the
bottom of the door. Insert the screws,
that were packed with this Use and Care
Guide, into the light trigger holes.
7. Before turning the door upside down,
new holes will need to be drilled for the
light trigger. Be careful not to drill down
more than 1/2 ″ or you may damage the
door glass. Measure 12 1
/
4
″ from the right
side and make a mark. Measure 3/4 ″
over from the first mark and make a
second mark. Measure 11/16 ″ in from
the front edge of the door and make a
mark. See illustration. This is where the
new holes will be drilled using a 5/32 ″
drill bit. Install the light trigger.
8. Remove the top hinge pin using a 1/8 ″
Allen wrench.
9. Turn the door upside down and place
the door on the bottom hinge pin.
10. Install the top hinge pin into the door
with the Allen wrench.
11. Open and close the door to test the door
swing. If the door drags and does not
close evenly, loosen the hinge screws
and slip shims behind the hinge. If
shims are already behind the hinges,
readjust them. Tighten screws and test
again.
12. Remove the old nameplate and stick the
new Monogram nameplate on the door
using the template included .
Top
Hinge
Slip Shim
Behind Hinge
Bottom
Hinge
Light Trigger
Top of the Door
12 1
/
4
″
3/4
″
11/16
″
Front of the Door
