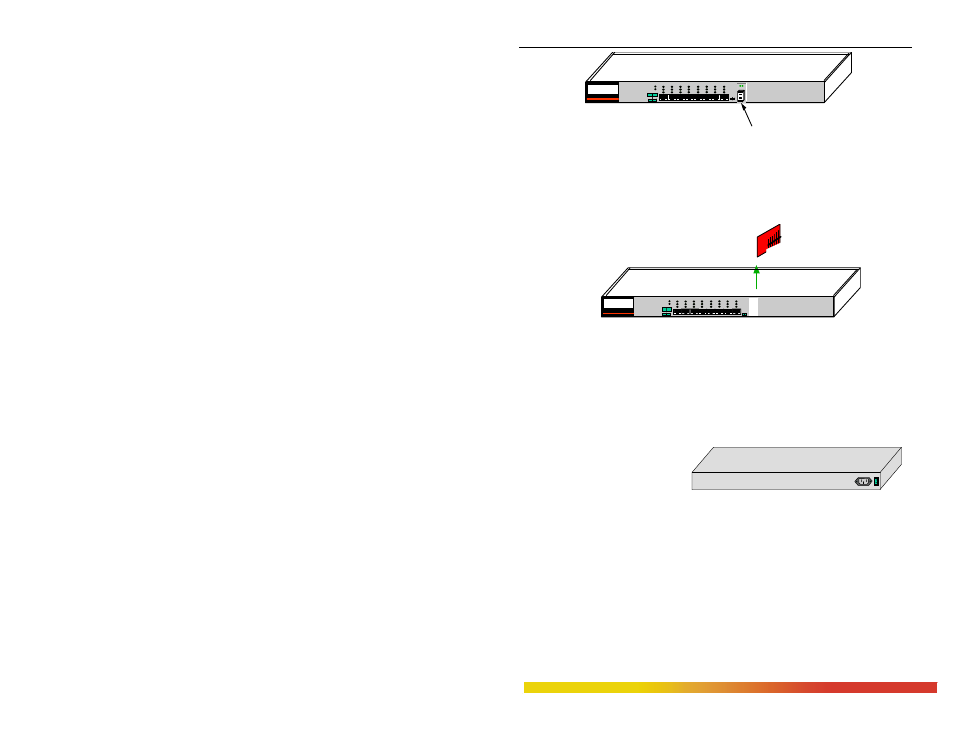

Figure 3.4.3a: Front View - Face Plate & FPM Retaining Screws
Step 3. Remove FPM Card
Gently pull the FPM card up and out of the connector socket (see Figure
3.4.3b).
Figure 3.4.3b: Removing a FPM Card
If the slot from which the FPM card has been removed is to remain unused, be
sure to install a FPM-BLNK face plate cover in it. If another FPM card is
replacing the one that has been removed, follow the steps as described for
installing a FPM card discussed in Section 3.4.1.
3.5 Powering the Magnum 4K8 Switch
The Magnum 4K-Series
Switches incorporate an internal
universal power supply, and has a
Figure 3.5: Magnum 4K8 AC power connector
recessed male IEC connector for the AC power cord at the left-rear. A manual power
ON-OFF switch is adjacent. A six-foot 115 VAC 60 Hz standard power cord is supplied
with each unit shipped within the United States and Canada.
Bottom Retainimg Screws for holding FPM Cards
MAGNUM 4K-Series Ethernet 10/100 Switch
1 2 3 4 5 6 7 8 POWER ERROR L/A SPEED
F/H UPLINK
= X F H
A L
F
H
F H
FPM CARD
MAGNUM 4K-Series Ethernet 10/100 Switch
1 2 3 4 5 6 7 8 POWER ERR OR L/A SPEED
F/H UPLIN K
= X F H F H
ON
OFF
110-220 VAC
47-63Hz 1.0-0.5A
