Model G5353 Spray Gun

-17

-

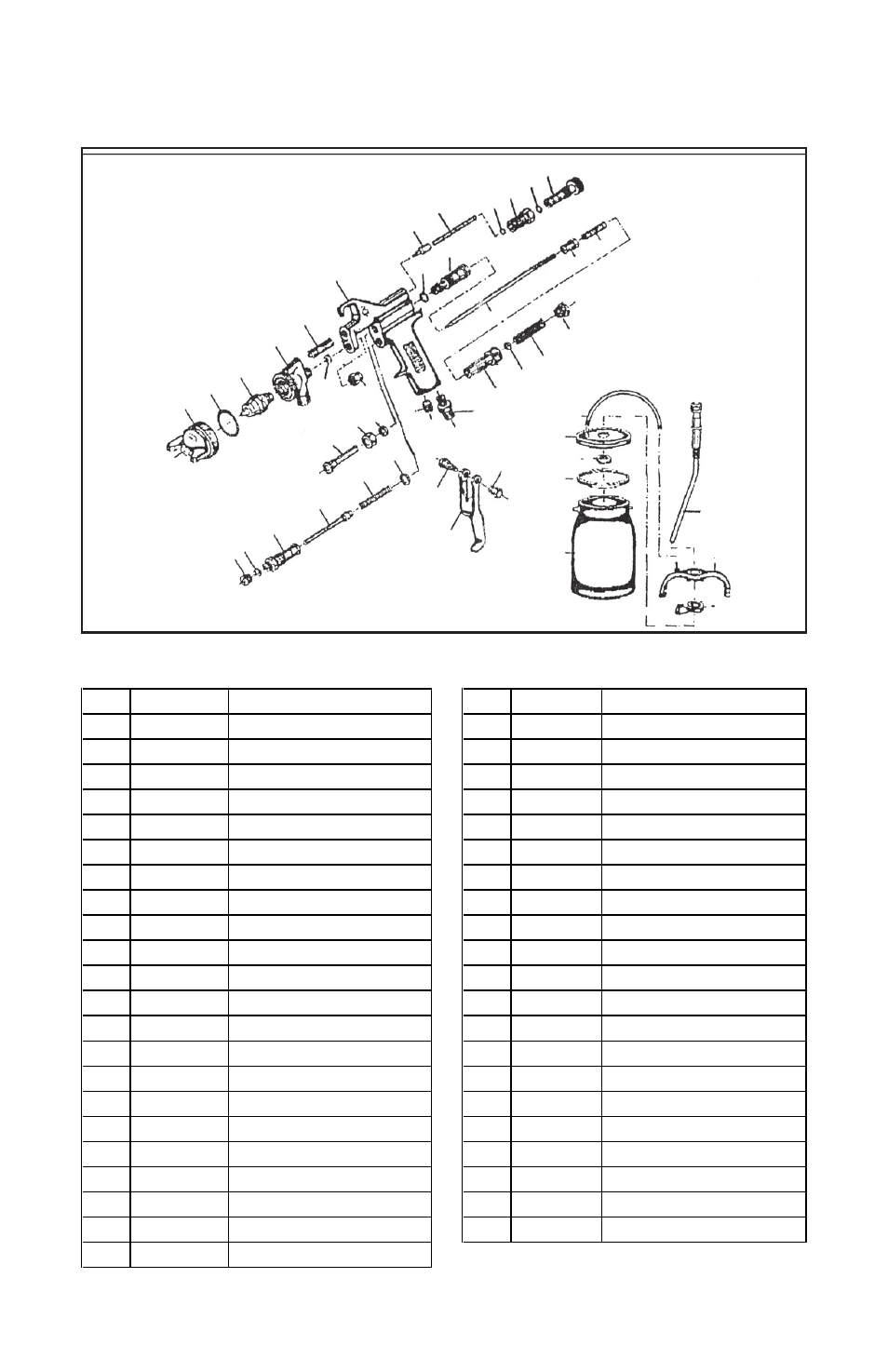

Parts Breakdown G5353

�

�

�

�

�

�

�

�

��

��

��

��

��

��

��

�

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

1

P5353001

AIR CAP SET

24

P5353024 VALVE

2

P5353002

O-RING

25

P5353025 COMPRESSION SPRING

3

P5353003

FLUID NOZZLE

26

P5353026 GASKET

4

P5353004

HEAD

27

P5353027 TRIGGER

5

P5353005

SCREW

28

P5353028 TRIGGER SCREW

6

P5353006

GUN BODY

29

P5353029 TRIGGER STUD

7

P5353007

WASHER

30

P5353030 SCREW

8

P5353008

NUT

31

P5353031 CONNECTION

9

P5353009

SLEEVE

32

P5353032 STEM

10

P5353010

RETAINER

33

P5353033 SLEEVE

11

P5353011

WIPER

34

P5353034 RETAINER RING

12

P5353012

NEEDLE

35

P5353035 SLEEVE

13

P5353013

NEEDLE NUT

36

P5353036 O-RING

14

P5353014

NUT

37

P5353037 SCREW

15

P5353015

GASKET

38

P5353038 FEED TUBE ASSEMBLY

16

P5353016

HOUSING

39

P5353039 YOKE ASSEMBLY

17

P5353017

CONTROL BODY

40

P5353040 CAP LOCK

18

P5353018

RING

41

P5353041 DRIP TUBE

19

P5353019

COMPRESSION SPRING

42

P5353042 CUP LID ASSEMBLY

20

P5353020

SCREW

43

P5353043 NUT

21

P5353021

NUT

44

P5353044 CUP GASKET

22

P5353022

PACKING

45

P5353045 CUP

23

P5353023

VALVE BODY
