G0640X 17" Wood/Metal Bandsaw

-11-

After all parts have been removed from the three

boxes, you should have the following items:

Main Components: (Figure 2 & 3)

Qty

A. Bandsaw (not shown) ................................. 1

B. Table .......................................................... 1

C. Miter Gauge ................................................ 1

D. Fence Assembly ......................................... 1

E. Resaw Fence Attachment .......................... 1

F. Front Fence Rail ......................................... 1

G. Rear Fence Rail ......................................... 1

H. Handwheel (not shown) ............................. 1

I. V-Belt A27 (not shown) .............................. 1

J. Scale (not shown) ...................................... 1

Fasteners (and where used):

Qty

Hex Bolt M8-1.25 x 100 (Positive Stop) ............ 1
Hex Nut M8-1.25 (Positive Stop) ....................... 1
Cap Screw M6-1 x 20 (Handwheel) .................. 1
Hex Bolts M8-1.25 x 16 (Table) ........................ 4
Lock Washers 8mm (Table) .............................. 4
Flat Washers 8mm (Table) ................................ 4
Cap Screws M6-1 x 25 (Rear Rail) ................... 2
Hex Bolts M6-1 x 20 (Front Rail) ....................... 2
Lock Washers 6mm (Front Rail) ....................... 2
Flat Washers 6mm (Front Rail) ......................... 2
Hex Nut M8-1.25 (Fence Lock Lever) ............... 1
Hex Nut M6-1 (Rail Pad) ................................... 1
Flat Washer 8mm (Attachment Lock Handle) ... 1

Tools & Other Miscellaneous Items:

Qty

Hex Wrench 5mm .............................................. 1
Hex Wrench 8mm .............................................. 1
Open End Wrench 10/13mm ............................. 1
Table Pin ........................................................... 1
Table Insert ....................................................... 1
Rail Pad M6-1 x 18 (attaches to fence) ............ 1
Fence Lock Lever M8-1.25 x 22 ....................... 1
Fence Attachment Lock Handle M8-1.25 x 44 .. 1
Fence Attachment T-Slot Nut ............................ 1

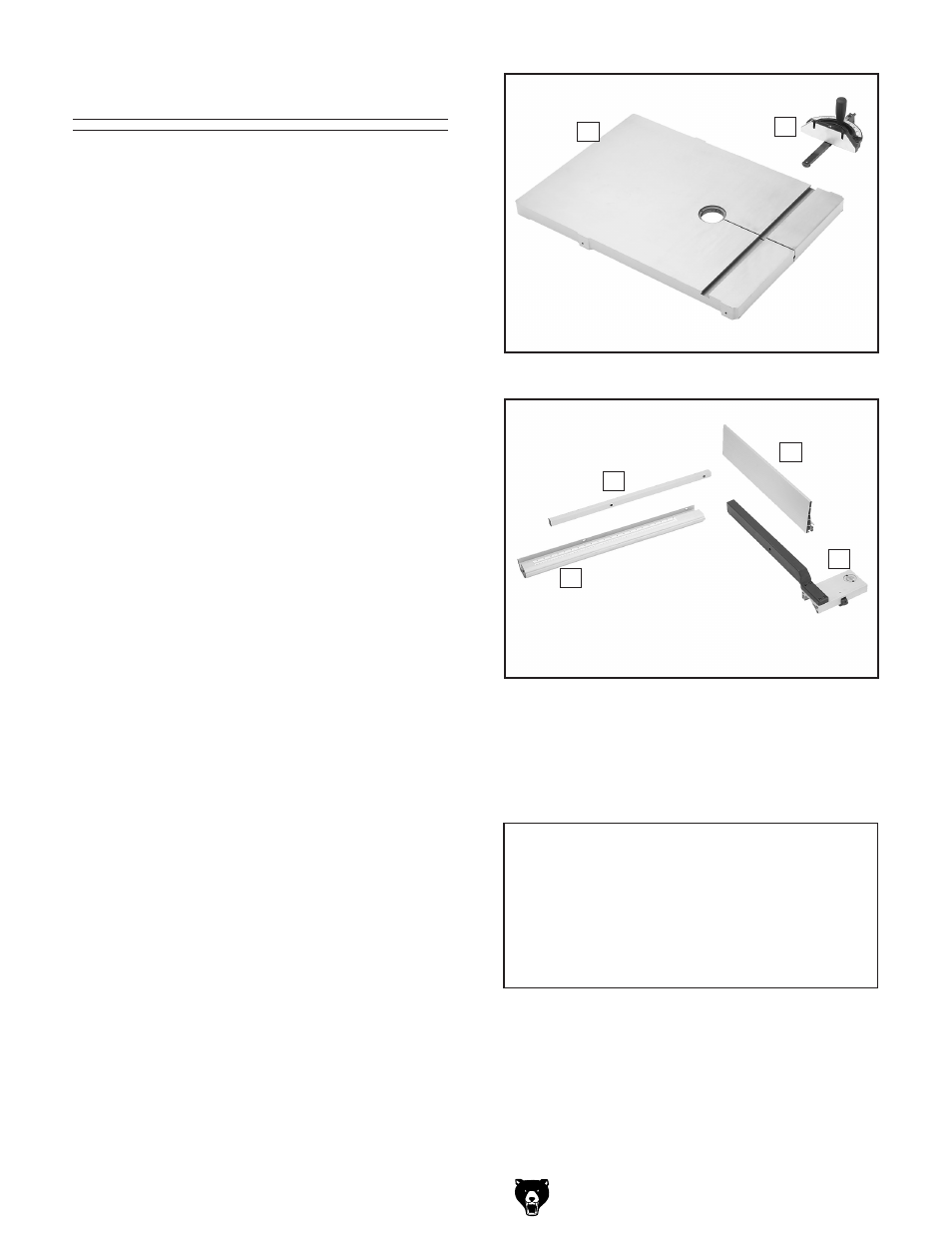

Figure 2. Bandsaw components.

Figure 3. Fence components.

If any nonproprietary parts are missing (e.g. a

nut or a washer), we will gladly replace them, or

for the sake of expediency, replacements can be

obtained at your local hardware store.

NOTICE

Some hardware/fasteners on the inventory

list may arrive pre-installed on the machine.

Check these locations before assuming that

any items from the inventory list are miss-

ing.

Inventory
