Model PH-100

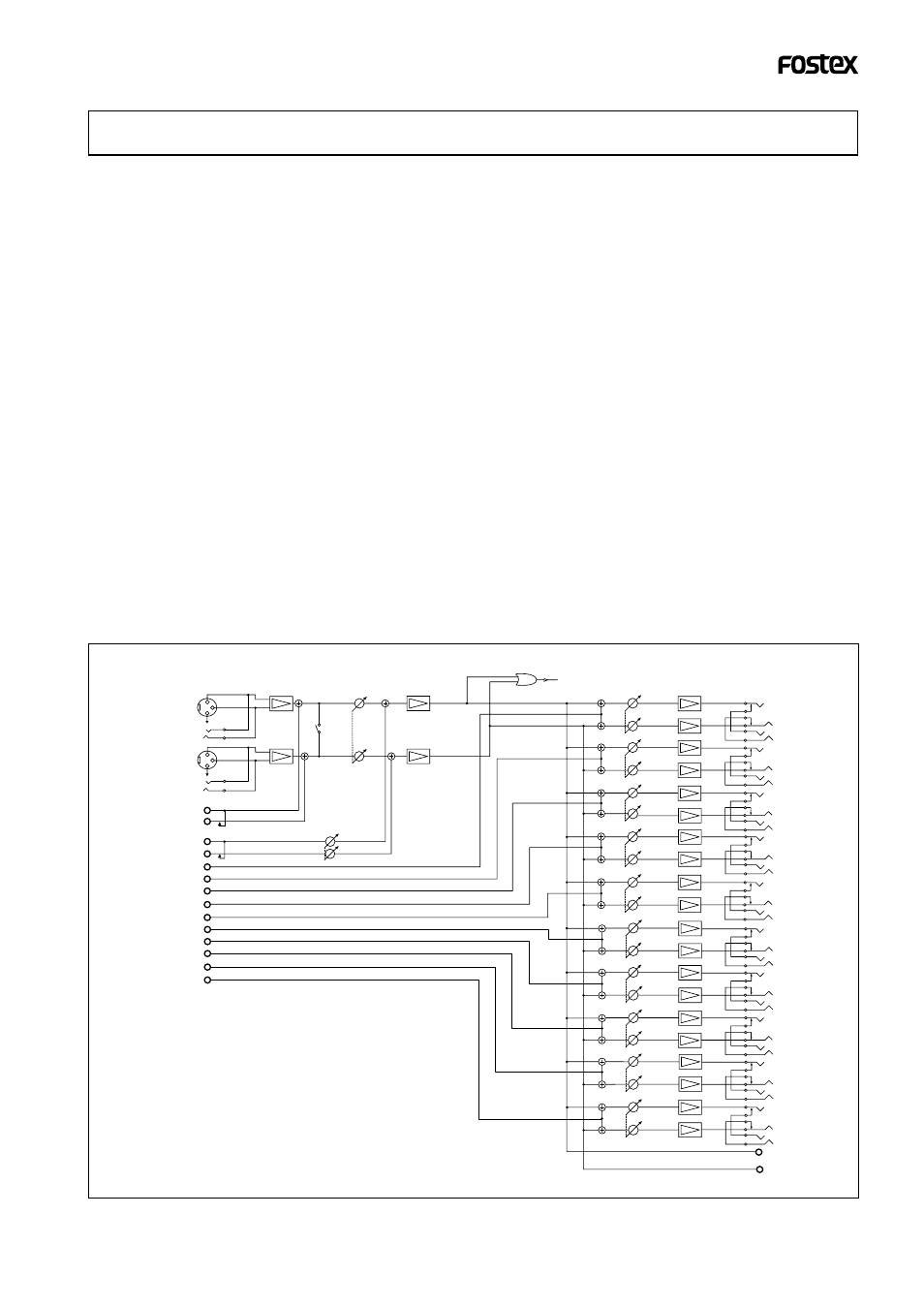

Block diagram
PEAK
OUTPUT LEVEL 1
OUTPUT LEVEL 2
OUTPUT LEVEL 3
OUTPUT LEVEL 4
OUTPUT LEVEL 5
PHONES 1
CASCADE OUT
L
R
INPUT
ST/MONO
AUX IN
BALANCE IN
UNBAL IN
CHANNEL IN
1
2
3
4
5
R
L/MONO
R
OUTPUT LEVEL 6
OUTPUT LEVEL 7
OUTPUT LEVEL 8
OUTPUT LEVEL 9
OUTPUT LEVEL 10
6
7
8
9
10
AUX IN
FRONT
REAR
PHONES 2
FRONT
REAR
PHONES 3
FRONT
REAR
PHONES 4
FRONT
REAR
PHONES 5
FRONT
REAR
PHONES 6
FRONT
REAR
PHONES 7
FRONT
REAR
PHONES 8
FRONT
REAR
PHONES 9
FRONT
REAR
PHONES 10
FRONT
REAR
INPUT R
L/MONO
INPUT L
INPUT (L, R) (Balanced)
• Connector : XLR-3-31 type (x 2)
: PHONE (x 2)
• Standard input level : +4dBu (XLR-3-31 type)
: -10dBV (PHONE)
• Input Impedance : 10k Ω or more
INPUT (L/MONO, R) (Unbalanced)
• Connector : RCA pin (x 2)
• Standard input level : -10dBV
• Input Impedance : 10k Ω or more
AUX IN (L/MONO, R) (Unbalanced)
• Connector : RCA pin (x 2)
• Standard input level : -10dBV
• Input Impedance : 10k Ω or more
CHANNEL IN (1~10) (Unbalanced)
• Connector : RCA pin (x 10)
• Standard input level : -10dBV
• Input Impedance : 10k Ω or more
PHONES OUT (1~10)
Available on both the front and rear panels (the front
jacks take priority.)
• Connector : PHONE (x 20)
• Maximum Output level : 500mW
• Load impedance
: 8 ~ 32 Ω
• Frequency Response : 30Hz ~ 20kHz +/-1dB
• Noise : -65dBV or less
• Distortion : 0.3% or less
CASCADE OUT (L, R)
• Connector : RCA pin (x 2)
• Output level : -10dBV
• Frequency Response : 30Hz ~ 20kHz +/-1dB
• Noise : -80dBV or less
• Distortion : 0.1% or less
• Dimensions : 482 (W) x 49 (H) x 267 (D)
• Weight : Approx. 4kg
• Power supply : 120VAC 60Hz
: 230V ~ 50/60Hz
• Power consumption : Approx. 18W
7
Main Specification
* Specifications and appearance are subject to change without notice for product improvement.
