• Connect the video signal cable to the HDMI input terminal, component video input terminal, S-video input terminal, or the video input
terminal.
• If the component to be connected is equipped with HDMI output terminal, component video output terminal, it is recommended to connect
to the component video terminal.

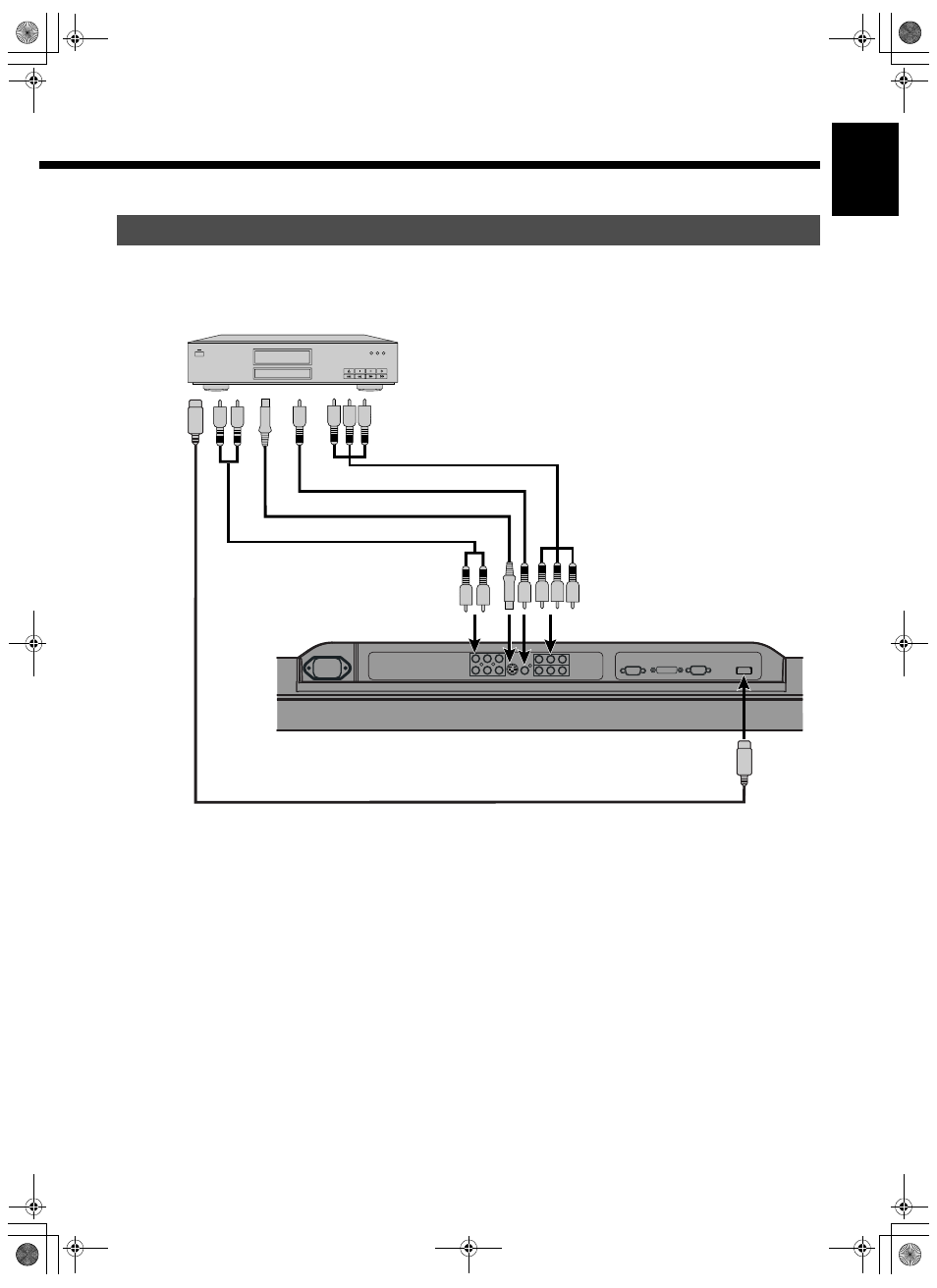

DVD RECORDER/PLAYER
To S-video output
To video output
To component video output
To audio outputs
To video input
To S-video input
To audio inputs To component video input
Display bottom
To HDMI output
To HDMI input
Note
• Unplug the power cord from the AC outlet before you connect external components.
• Also refer to the instructions for the component to be connected.
• When inputting audio, connect to the terminals corresponding to the used video input or RGB input.
• Terminal layout may differ and functions may not be available with some models and some device options.
