CYLINDER AND CONNECTOR REQUIREMENTS AND
SPECIFICATIONS
a. Propane gas cylinders and valves must be maintained in
good condition and must be relaced if there is visible damage
to either the cylinder or valve.
b. This Barbecue, when used with a cylinder, should be
connected to a standard 5 gallon (20lb.) Propane gas cylinder
equipped with an OPD (Overfill Prevention Device). The OPD
has been required on all cylinders sold since October 1,1998
to prevent overfilling.
c. Cylinder dimensions should be approximately 12 inches in
diameter and 18 inches high. Cylinders must be constructed
and marked in accordance with the specifications for Propane
Gas Cylinders of the U.S. Department of Transportation (D.O.T)
or the National Standard of Canada,CAN/ CSA-B339, Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods.
d. The cylinder must include a collar to protect the cylinder
valve and the cylinder supply system must be arranged for
vapor withdrawal.
e. The pressure regulator and hose assembly (Figure 3A,)
supplied with this outdoor cooking gas appliance must be used.
Original and replacement pressure regulator and hose
assemblies must be those specified by the Robert H. Peterson
Co. for connection with a cylinder connecting device identified
as Type I by the Harmonized Standard ANSI Z 21.58 and CGA
1.6-M95-1995 with Addenda ANSI Z 21.58a -1998 and CGA
1.6a - M98.
f. The Propane gas cylinder valve must be equipped with a
cylinder connection coupling device, described as Type I in
the Harmonized ANSI standard defined in paragraph e. above.
This device is commonly described as an Acme Thread Quick
Coupler.
g. Your Propane Gas Cylinder may be equipped with a Type II
Quick Disconnect (plug-in) Coupler (Figure 3B). An approved
regulator /hose assembly for this type of coupling is available
through your dealer from R.H. Peterson Co.
QUICK COUPLER OPERATION
To connect the Regulator/hose assembly to the LP gas
cylinder valve fitting: Press the Hand Nut on the Regulator
over the Acme thread fitting on the cylinder valve. Turn the
Hand Nut clockwise to engage the threads and tighten until
snug. The use of pliers or wrench should not be necessary.
To disconnect:- Turn the Hand Nut counter-clockwise until
detached. (Figure 3a).
Important: Before using the Barbecue and after each time the
cylinder is removed and reattached, check all connections for
leaks. Turn off the Barbecue valves and open the main cylinder
valve, then check connections with soapy water. Repair any
leaks before lighting the Barbecue.
CAUTION: Always turn the Propane cylinder main valve off
after each use and before moving the Barbecue and cylinder or
disconnecting the coupling. This valve must remain closed
while the appliance is not in use, even though the gas flow is
stopped by a safety feature when the coupler is disconnected.
Carefully inspect the hose assembly each time before the gas
is turned on. A cracked or frayed hose should be replaced
immediately.
If the appliance is stored indoors, the cylinder must be
disconnected and removed. Cylinders must be stored out of
the reach of children and must not be stored in a building,
garage or any other enclosed area.
FOR YOUR SAFETY
a. DO NOT store a spare Propane Gas cylinder under
or near this appliance.
b. NEVER fill the cylinder beyond 80 percent full.
c. IF THE INFORMATION IN “A” AND “B” IS NOT
FOLLOWED EXACTLY, A FIRE CAUSING DEATH OR
SERIOUS INJURY MAY OCCUR.
READ AND FOLLOW ALL WARNINGS PROVIDED WITH YOUR PROPANE GAS CYLINDER.
IMPORTANT FOR YOUR SAFETY
When operating this appliance with a Propane gas Cylinder these instructions and warnings MUST be observed.
FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.
SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
For useful advice and help with constructing your barbecue contact your local Fire Magic dealer
HANDWHEEL
BRASS COUPLING SLEEVE
PRESSURE
RELIEF VALVE
TYPE II
CYLINDER VALVE
(QUICK DISCONNECT COUPLER)
CYLINDER
LIQUID LEVEL
INDICATOR
(OPTIONAL)
REGULATOR
HOSE
VENT
NIPPLE
UL

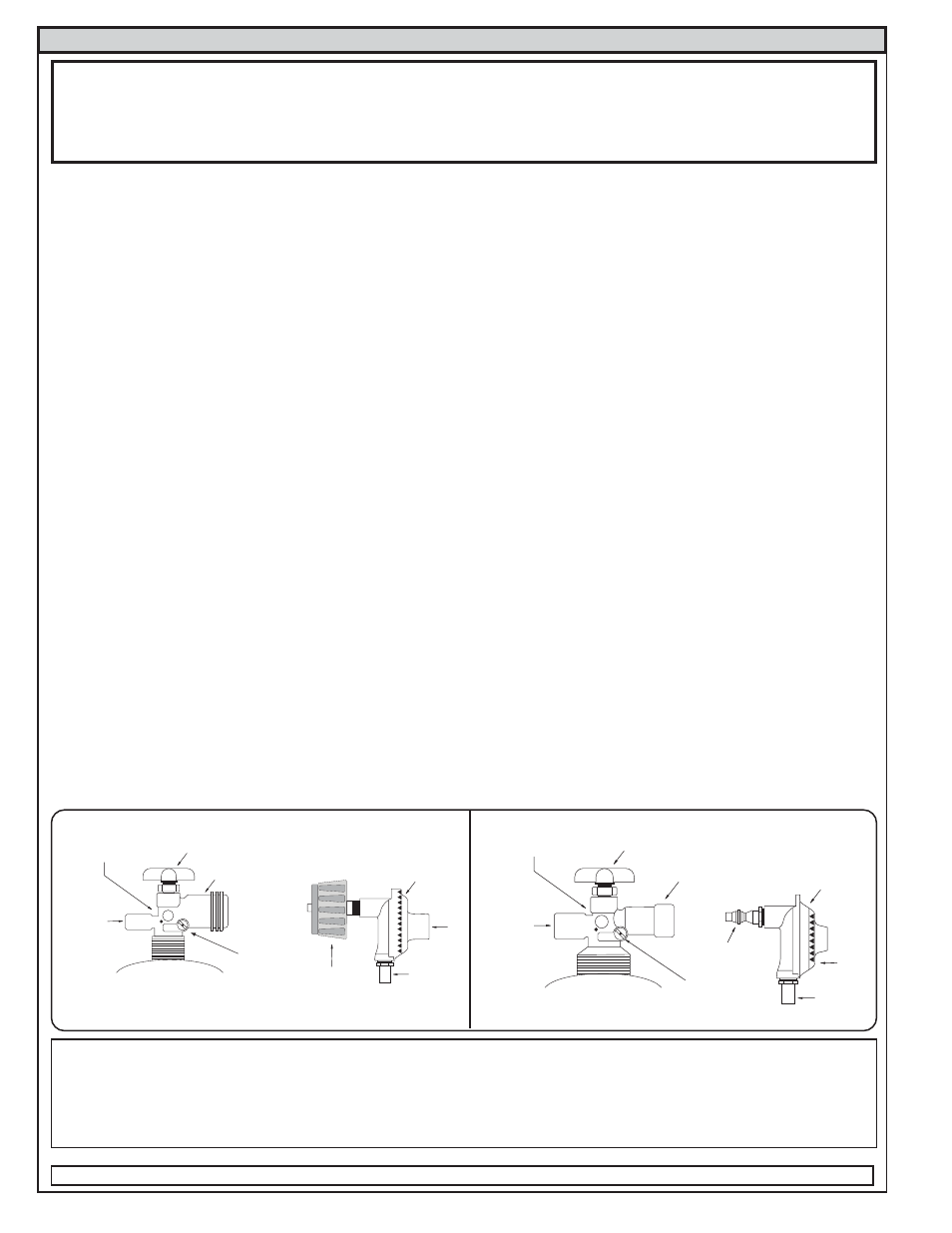

Figure 3B Type II Quick Disconnect Coupler
REGULATOR
HOSE
VENT
HAND NUT
WITH
ACME THREAD
MAIN VALVE
HANDWHEEL
BRASS COUPLING NUT
PRESSURE
RELIEF VALVE
QCC TYPE I
CYLINDER VALVE
(QUICK DISCONNECT COUPLER)
CYLINDER
LIQUID LEVEL
INDICATOR
(OPTIONAL)
UL
Figure 3A Type I Acme Thread Quick Coupler
For Natural Gas -
Normal 7" Water Column (w.c),
Minimum 31/2" w.c. , Maximum 101/2" w.c.
For Propane Gas -
Normal 11" Water Column (w.c.)
Minimum 8" w.c., Maximum 13" w.c.
GAS SUPPLY AND MANIFOLD PRESSURES:
