4
PARTS INCLUDED WITH THE BACKBURNER ASSEMBLY ARE INSIDE THE BROKEN LINES
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746

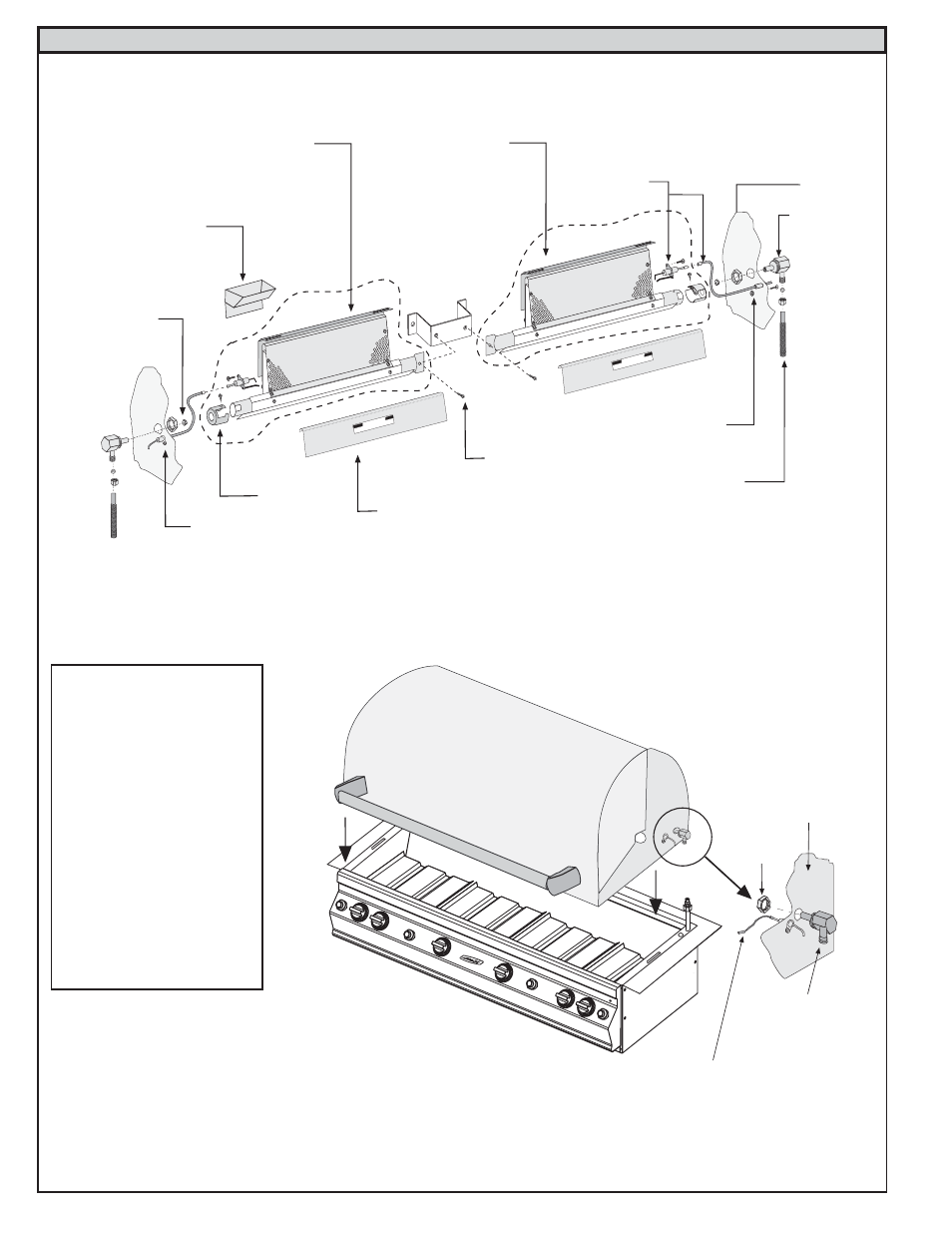

EXPLODED VIEW OF BACKBURNER ASSEMBLY
FIRE MAGIC ELITE 50 BACKBURNER & OVEN PARTS LIST
IMPORTANT
Your Fire Magic Barbecue,
Oven and Backburner are
fully Pre-assembled and
tested at the factory.
DO NOT attempt to remove
the oven and Backburner
from the Barbecue prior to
or during installation.
Damage to the connecting
gas line and ignitor wiring
may occur.
The plastic straps which
secure the oven to the
Barbecue unit should be
removed and discarded
prior to lighting.
EXPLODED VIEW OF OVEN ASSEMBLY
LOCK
NUT
OVEN
EL-34, ELBOW
& ORIFICE
(LID STOP)
IGNITOR
ELECTRODE
WIRE
CAUTIO N
REMOVE THIS C OVER BEFO RE
LIGHT ING Y OUR B ACK B URNER
CAUTIO N
REMO VE TH IS CO VER B EFOR E
LIGHT ING Y OUR B ACK B URNER
REME MBER
REMO VE TH IS CO VER W HEN B ACKB URNER IS IN U SE
Replace cover when Backb urner is not in use .
CAUTIO N
REMOVE THIS COVE R BEFOR E
LIGHT ING Y OUR B ACK B URNER
CAUTIO N
REMOV E THIS COVE R BEFO RE
LIGHT ING Y OUR B ACK B URNER
REME MBER
REMOV E THIS COVE R WHE N BAC KBUR NER IS IN US E
Replace cover when Backb urner is not in use.
4728-02
Right Backburner Assembly
4199-69
Electrode Double Rod
w/Electrode Wire
3986-1102
Screw, 6-32 x 1/4” SS
3030-01
Backburner Gas Line
w/Compression Nuts
& Sleeves
3990-0037
3/4” Pal Nut
EL-34
Elbow (Lid Stop)
4739-02
Left Backburner Assembly
3990-0025
Nut, 6-32 Hex SS
4732-09
Woodchip Box
3001-125-1 Orifice, LP
3001-45-1 Orifice, Nat
4728-010
Backburner Cover
Air Shutter
& Adj. Screw
3984-4103
Screw, 10-32 x 3/8” SS
