5
9
ASSEMBLY F
J7825pr-0920
3

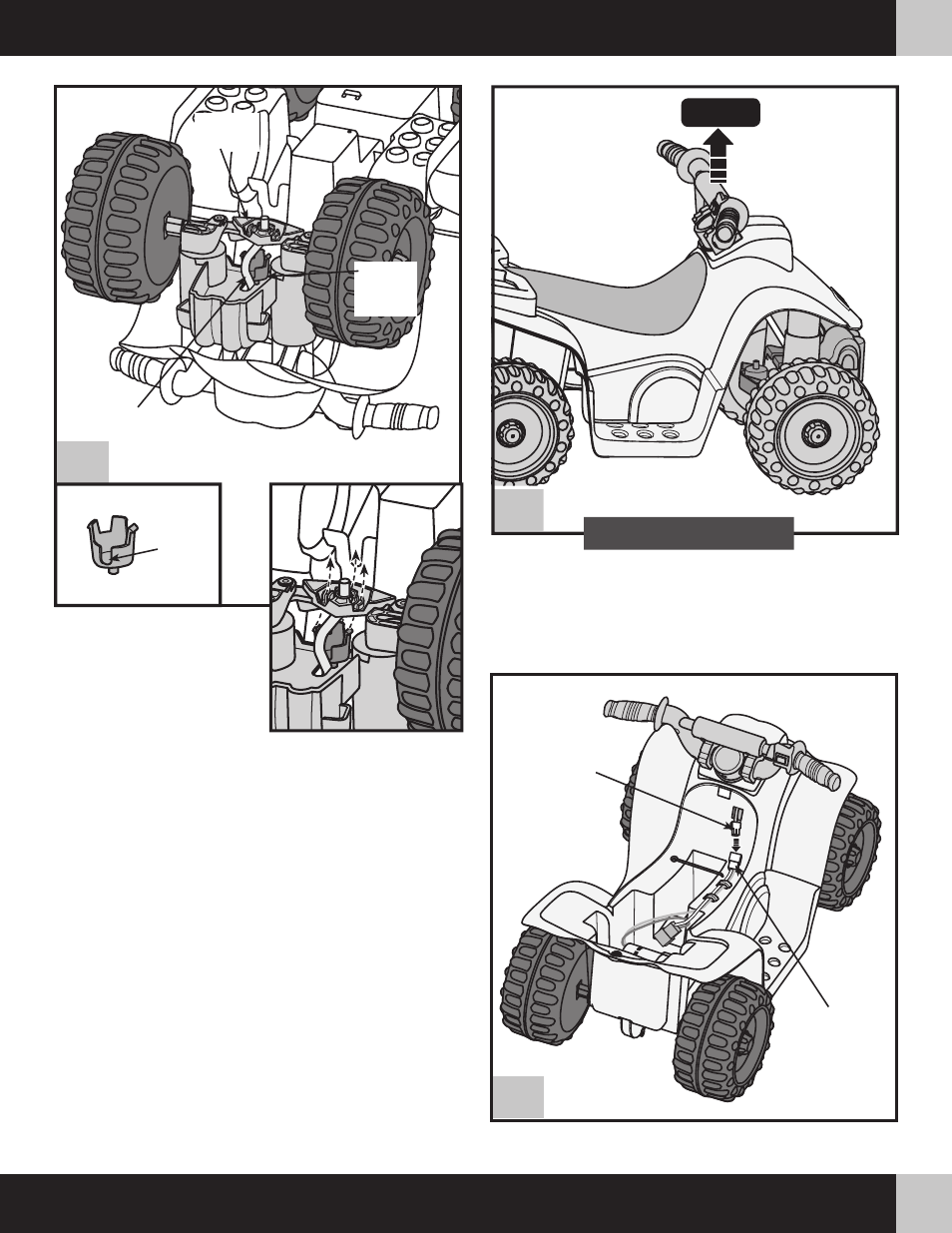

• Position the steering column
retainer so that the hooked tabs
are upright and the groove is
facing you.
• Fit the steering column retainer
behind the steering column,
as shown.
• Fit the groove in the steering column retainer to the steering column.
• Insert and
“snap” the three tabs on the steering column retainer into
the slots in the steering linkage.
• Make sure all three tabs on the steering column retainer are in the
slots in the steering linkage.
Steering
Linkage
Steering
Column
Steering
Column
Retainer
Groove
• Turn the vehicle upright.
• Pull the handlebar up to be sure the steering column is secure.
• If you can remove the steering column, you have not assembled
the steering column retainer correctly. Please refer back to Assembly
step 3.
Pull Up
4
• Plug the handlebar connector into the motor connector.
Motor
Connector
Handlebar
Connector
SIDE VIEW
